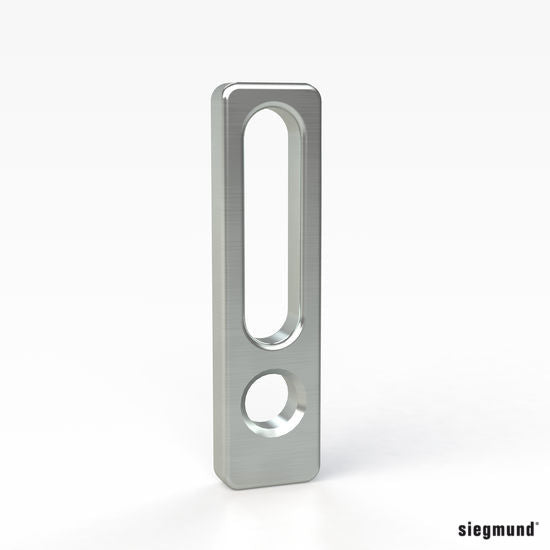

Items 160420.A and 160420.N: Siegmund Universal Stop 115 L, aluminum or nitrided, for System 16 welding tables with Ø16 mm bores. An elongated hole (0–50 mm range) plus system bores let it be fixed or adjusted, and it also works with prisms and adapters. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Siegmund article | 160420.A (siegmund.com) | 160420.N (siegmund.com) |
|---|---|---|
| Description | Universal Stop 115 L Aluminum | Universal Stop 115 L nitrided |
| System | Siegmund System 16 (Ø16 mm bores, 50 mm grid) | |
| Length | 115 mm (4.53 in) | |
| Width | 30 mm (1.18 in) | |
| Material thickness | 12 mm (0.47 in) | |
| Adjusting range | 50 mm (1.97 in) | |
| Weight | 0.05 kg (0.11 lb) | 0.2 kg (0.44 lb) |
| Finish | Aluminum | Nitrided |
| Mounting | System bores and elongated hole | |
| GTIN | 4251805905342 | 4251805905359 |
Compatibility
- Fits: Siegmund System 16 welding tables and tooling with Ø16 mm bores on a 50 mm grid. Siegmund System 16 accessories also fit other 16 mm system welding tables with Ø16 mm bores on a 50 mm grid. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
- Siegmund System 16: fits every System 16 Siegmund table, including the Professional Extreme 8.7 and 8.7 PLUS tables listed on bthsales.ca; on a System 28 table it needs Siegmund's Reduction Bushing 16->28 (000545, boreholes only) to clamp with System 28 bolts, or the Adapter Sleeve 16->28 (000547) to locate it without clamping; neither is listed on bthsales.ca (000545 not in its elongated holes).
- Works with: other Siegmund System 16 clamps, bolts, stops, squares and U-squares on the same table.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
Choose one option; each option is one piece:
- 1 x Siegmund Universal Stop 115 L Aluminum (160420.A)
- 1 x Siegmund Universal Stop 115 L nitrided (160420.N)
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. BTH Sales does not sell cobots; for cobot cells we help with table integration and fixturing (see cobot welding with Siegmund tables). Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Typical uses
- Fixed or variable stopping with bores and the elongated hole (Siegmund).
- Use with prisms and adapters (Siegmund).
- Siegmund recommends System 16 for light to medium-duty work and precision fixtures; its close 50 mm grid lets small components be fixed with high precision.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Frequently Asked Questions
Aluminum or nitrided?
Siegmund lists the aluminum version (160420.A) at 0.05 kg and the nitrided version (160420.N) at 0.2 kg; the nitrided version comes standard with fine scaling on both sides.
Will it fit other 16 mm welding tables?
Yes, if the table has Ø16 mm bores on a 50 mm grid. Check the bore diameter and grid before ordering. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
