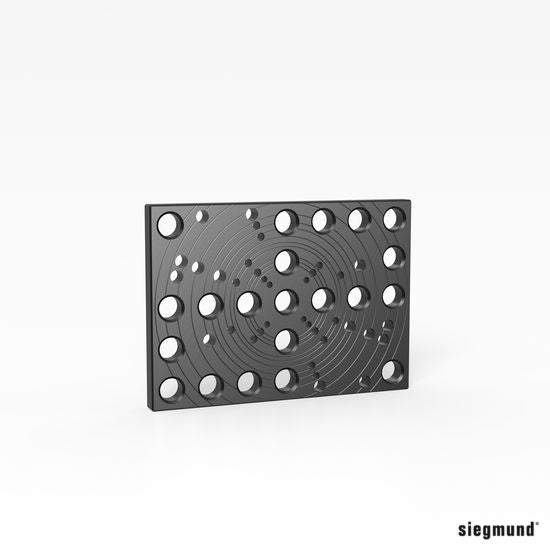

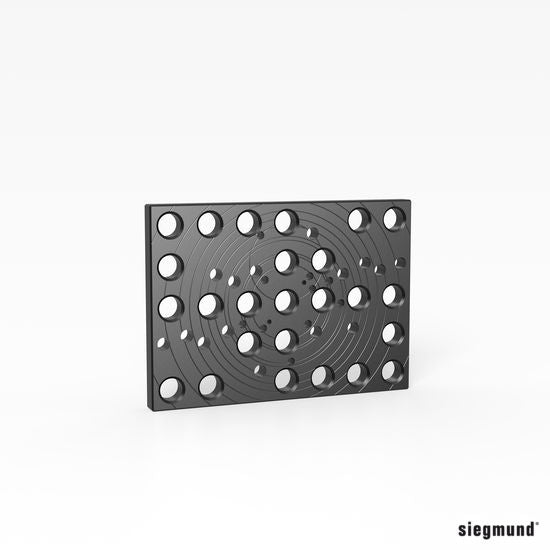

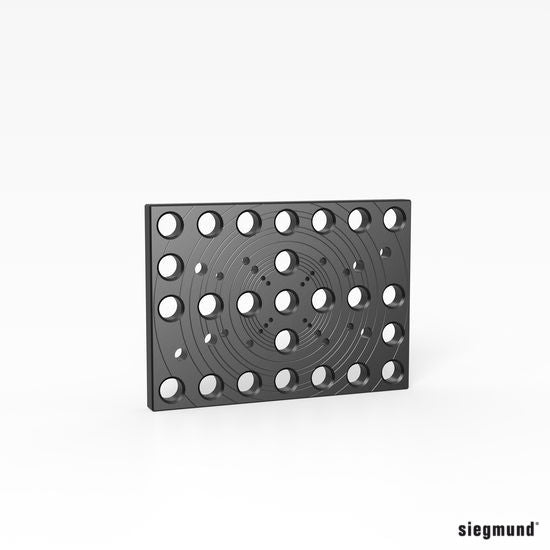

Items 280220.P, 280221.P, 280250.P, 280251.P and 280252.P: Siegmund Clamping Plates for DIN and US-standard (ANSI/ASME B16.5) pipe flanges, nitrided, with fixing bolts. They attach with clamping bolts to Siegmund elements such as squares, the fixing bolts position the flange quickly, and the 28 mm bores take extra clamping elements. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Siegmund article | 280220.P (siegmund.com) | 280221.P (siegmund.com) | 280250.P (siegmund.com) | 280251.P (siegmund.com) | 280252.P (siegmund.com) |
|---|---|---|---|---|---|
| Description | Clamping Plate 550 for DIN Flanges with Fixing Bolt nitrided | Clamping Plate 350 for DIN Flanges with Fixing Bolt nitrided | Clamping Plate 150 Ibs for flange US standard with Fixing Bolt nitrided | Clamping Plate 300 Ibs for flange US standard with Fixing Bolt nitrided | Clamping Plate 400-600 Ibs for flange US standard with Fixing Bolt nitrided |
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) | ||||
| Length | 550 mm (21.65 in) | 350 mm (13.78 in) | 350 mm (13.78 in) | 350 mm (13.78 in) | 350 mm (13.78 in) |
| Width | 350 mm (13.78 in) | 250 mm (9.84 in) | 250 mm (9.84 in) | 250 mm (9.84 in) | 250 mm (9.84 in) |
| Material thickness | 25 mm (0.98 in) | ||||
| Weight | 30 kg (66.14 lb) | 14 kg (30.86 lb) | 14 kg (30.86 lb) | 14 kg (30.86 lb) | 14 kg (30.86 lb) |
| Finish | Nitrided | ||||
| Bores | 28 mm, for additional clamping elements | ||||
| Mounting | Clamping bolts to Siegmund elements such as squares | ||||
| GTIN | 4251805921151 | 4251805921168 | 4251805921182 | 4251805921199 | 4251805921205 |
Related products & accessories
Compatibility
- Fits: Siegmund System 28 welding tables and tooling with Ø28 mm bores on a 100 mm grid. The plates have 28 mm system bores. Siegmund says that to use them with System 16, connection elements such as Connecting Bolts (000562), Combination Clamping Bolts (000520) or Reduction Bushings (000546) are required. They also fit other 28 mm system welding tables with Ø28 mm bores. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
- Siegmund System 28: is a System 28 clamping plate with 28 mm boreholes that fits every System 28 Siegmund table; Siegmund attaches it "with clamping bolts to Siegmund elements, like squares"; to use it in System 16, Siegmund says Connecting Bolts 000562, Combination Clamping Bolts 000520 or Reduction Bushings 000546 "are required" (none listed on bthsales.ca).
- Works with: other Siegmund System 28 clamps, bolts, stops, squares and U-squares on the same table.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
Choose one option; each option is one piece:

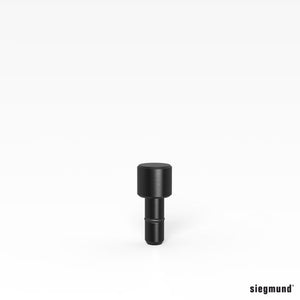

- 280220.P Clamping Plate 550 for DIN flanges (DIN 2632/2633 DN 15–DN 400, DIN 2634/2635 DN 50–DN 300), with 2 each of fixing bolts Ø13.8, 17.8, 21.8, 25.8, 29.8 and 32.8 mm
- 280221.P Clamping Plate 350 for DIN flanges (DIN 2633 DN 15–DN 200), with 2 each of fixing bolts Ø13.8, 17.8 and 21.8 mm
- 280250.P Clamping Plate 150 lbs for US-standard flanges (ANSI/ASME B16.5, 1/2" to 8"), with 2 each of fixing bolts Ø15.5, 18.9 and 22.2 mm
- 280251.P Clamping Plate 300 lbs for US-standard flanges (ANSI/ASME B16.5, 1/2" to 8"), with 2 each of fixing bolts Ø15.5, 18.9, 22.2 and 25.2 mm
- 280252.P Clamping Plate 400–600 lbs for US-standard flanges (ANSI/ASME B16.5, 1/2" to 6"), with 2 each of fixing bolts Ø15.5, 18.9, 22.2, 25.2 and 28.2 mm
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. BTH Sales does not sell cobots; for cobot cells we help with table integration and fixturing (see cobot welding with Siegmund tables). Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Typical uses
- Positioning pipe flanges quickly for welding, using the fixing bolts on the clamping plate (Siegmund).
- Adding clamping elements through the 28 mm bores (Siegmund).
- Siegmund says additional nominal widths are available on request.
- Siegmund describes System 28 as ideal for light to heavy components and designed for maximum clamping forces, multi-ton structures and high distortion forces.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Frequently Asked Questions
Which clamping plate fits my flange?
For DIN flanges, Siegmund lists the Clamping Plate 550 (280220.P) for DIN 2632/2633 DN 15–DN 400 and DIN 2634/2635 DN 50–DN 300, and the Clamping Plate 350 (280221.P) for DIN 2633 DN 15–DN 200. For US-standard ANSI/ASME B16.5 flanges, choose 280250.P for 150 lbs or 280251.P for 300 lbs (both 1/2" to 8"), or 280252.P for 400–600 lbs (1/2" to 6"). Siegmund says additional nominal widths are available on request.
Can I use the clamping plates on a System 16 table?
Yes, with connection elements. Siegmund says System 16 use requires elements such as Connecting Bolts (000562), Combination Clamping Bolts (000520) or Reduction Bushings (000546).
Will the clamping plates fit welding tables from other makers with Ø28 mm bores?
Yes, if the table has Ø28 mm bores on a 100 mm grid. Check the bore diameter and grid before ordering. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
