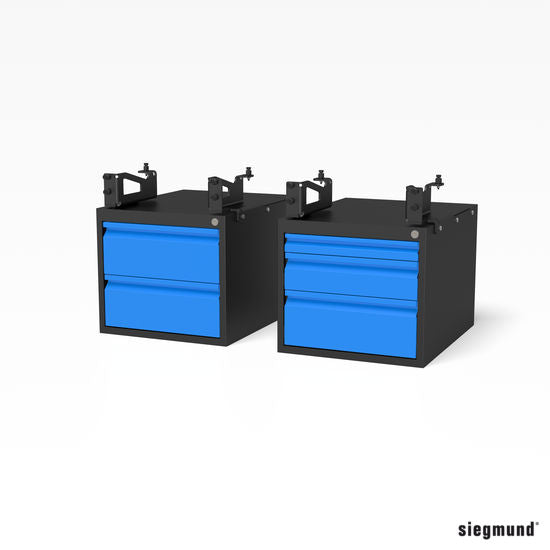

Siegmund System 16 Sub Table Boxes with Drawers Special 160990.2.1, product view

Siegmund System 16 - Sub Table Boxes with Drawers Special

Load image into Gallery viewer, Siegmund System 16 Sub Table Boxes with Drawers Special 160990.2.1, product view

Load image into Gallery viewer, Siegmund System 16 - Sub Table Boxes with Drawers Special

Siegmund System 16 - Sub Table Boxes with Drawers Special

SKU: 160990.2.1

Siegmund

$2,035.00 CAD

$2,035.00 CAD ~~$2,520.00 CAD~~

Sale Sold out

Shipping calculated at checkout.

Quantity must be 1 or more

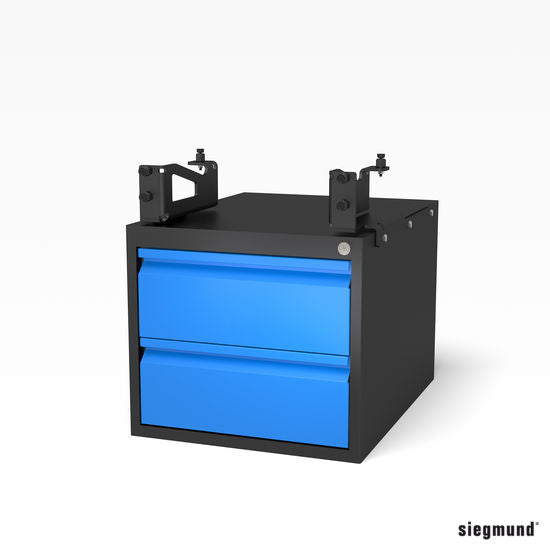

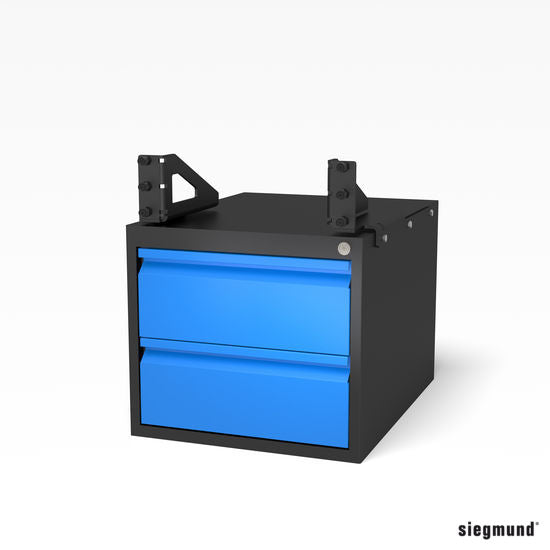

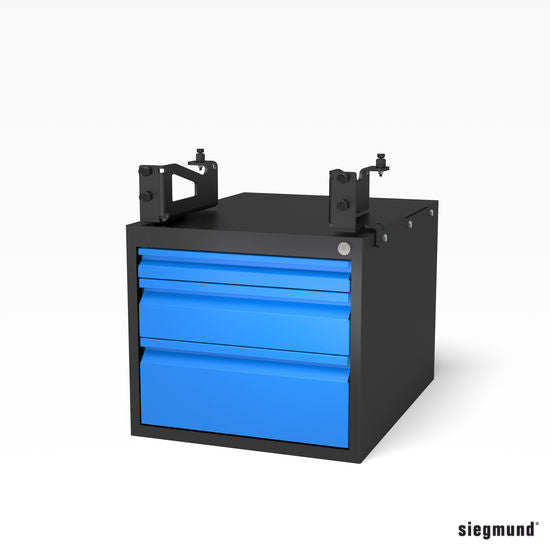

SIEGMUND SYSTEM 16 - SUB TABLE BOXES SPECIAL

Each of these Siegmund System 16 Sub Table Box sets contains two ST Boxes with drawers. Set 160990.2.1 uses the standard System 16 box (160990). Siegmund states "Table size 1000x500 mm not compatible" for that box, so it does not fit 1000x500 mm System 16 tables. Set 161990.2.1 uses the Basic version (161990) for System 16 Basic tables, which need a special mounting. Made in Germany.

Technical Data:

Item No.: 160990.2.1

Special offer 2x Sub Table Box incl. drawers

Length (a)	630 mm
Width (b)	485 mm
Height (c)	430 mm
Weight	90 kg
Load capacity	100 kg

Product description
The Siegmund ST Box enables the creation and storage of tools for easy access when required.

The ST Box has a total maximum load capacity of approx. 100 kg. Each drawer carries a maximum load of approx. 50 kg.

The design is totally enclosed to protect the contents from weld spatters and dirt.

Regardless of table size and ribbing, the ST Box can be attached to every Siegmund welding table.

For Basic and PLUS tables a special mounting is required.

Will be delivered pre-assembled.

Table size 1000x500 mm not compatible

‐ Consisting of: 160990.1 + 160990.2
‐ powder coated finish
‐ lockable
‐ drawer pull-out length 500 mm

Item No.: 161990.2.1

Special offer 2x Sub Table Box for Basic incl. drawers

Length (a)	630 mm
Width (b)	485 mm
Height (c)	430 mm
Weight	100 kg
Load capacity	100 kg

Product description
The Siegmund ST Box enables the creation and storage of tools for easy access when required.

The ST Box has a total maximum load capacity of approx. 100 kg. Each drawer carries a maximum load of approx. 50 kg.

The design is totally enclosed to protect the contents from weld spatters and dirt.

Will be delivered pre-assembled.

‐ Consisting of: 161990.1 + 161990.2
‐ powder coated finish
‐ lockable
‐ drawer pull-out length 500 mm

Works with this product

Compatibility

Siegmund System 16: a two-box special offer, delivered pre-assembled; the 160990.2.1 pair "can be attached to every Siegmund welding table" except size 1000x500 mm, with a special mounting for Basic and PLUS tables, and the 161990.2.1 pair is Siegmund's Basic-table version (BTH lists no Basic table).

Frequently Asked Questions

What is in each Sub Table Box special set?

Each set contains two Siegmund ST Boxes with drawers. Set 160990.2.1 uses the standard System 16 box 160990 and set 161990.2.1 uses the Basic version 161990.

Do they fit a 1000x500 mm table?

No. Siegmund states "Table size 1000x500 mm not compatible" for the standard box 160990, so set 160990.2.1 does not fit 1000x500 mm System 16 tables.

How much weight do the drawers hold?

Siegmund lists a total maximum load capacity of approx. 100 kg for the ST Box, with each drawer carrying approx. 50 kg.
