The Kifix KF-MP series comes in three sizes: KF-01 MP, KF-02 MP and KF-03 MP, rated at 160, 300 and 450 kgf (352, 660 and 990 lbf) holding force, with a 120° opening angle and an M6 or M8 spindle thread. Kifix toggle clamps are made in Brazil, and BTH Sales is the exclusive Canadian importer of Kifix.
Ships across Canada from our St. Marys, Ontario warehouse.
Key specs
| Spec | KF-01 MP | KF-02 MP | KF-03 MP |
|---|---|---|---|
| Holding force | 160 kgf (352 lbf) | 300 kgf (660 lbf) | 450 kgf (990 lbf) |
| Opening angle | 120° | 120° | 120° |
| Spindle thread | M6 | M8 | M8 |
| Weight | 0.320 kg (0.704 lb) | 0.580 kg (1.278 lb) | 1.350 kg (2.970 lb) |
| Brand | Kifix (Brazil) | Kifix (Brazil) | Kifix (Brazil) |
Dimensions

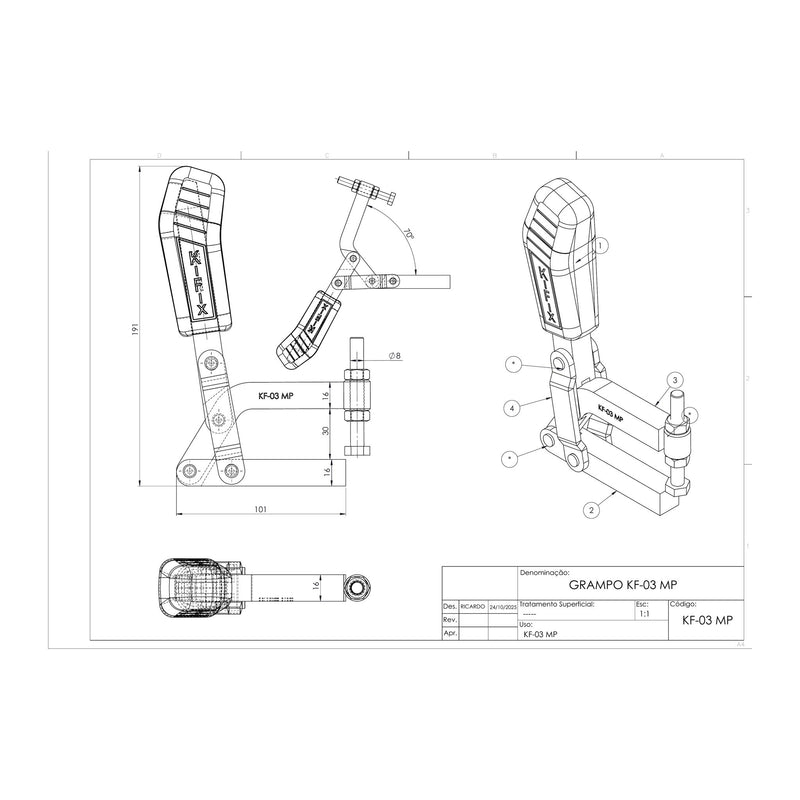

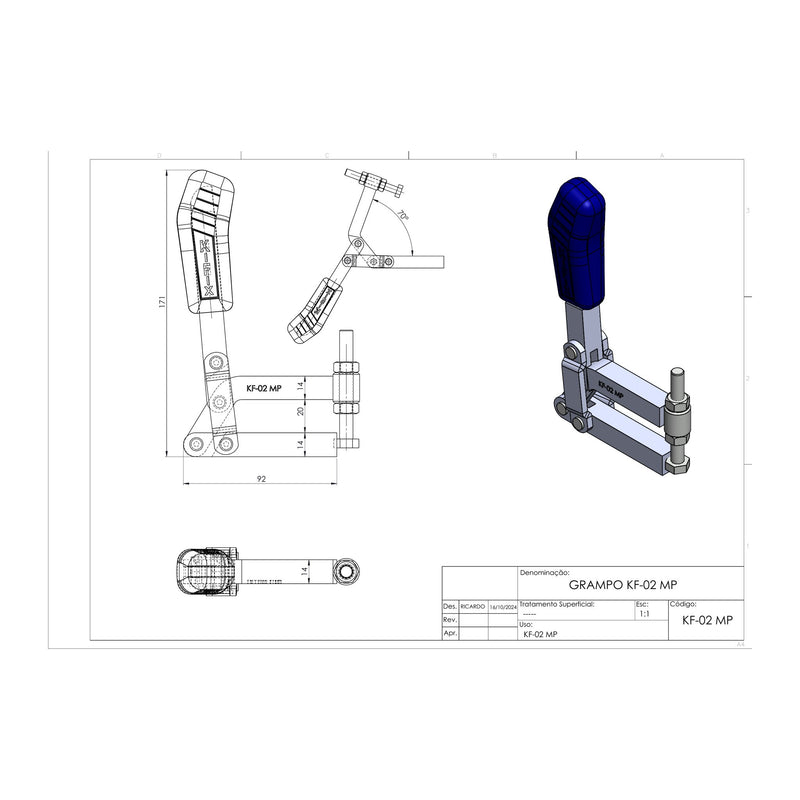

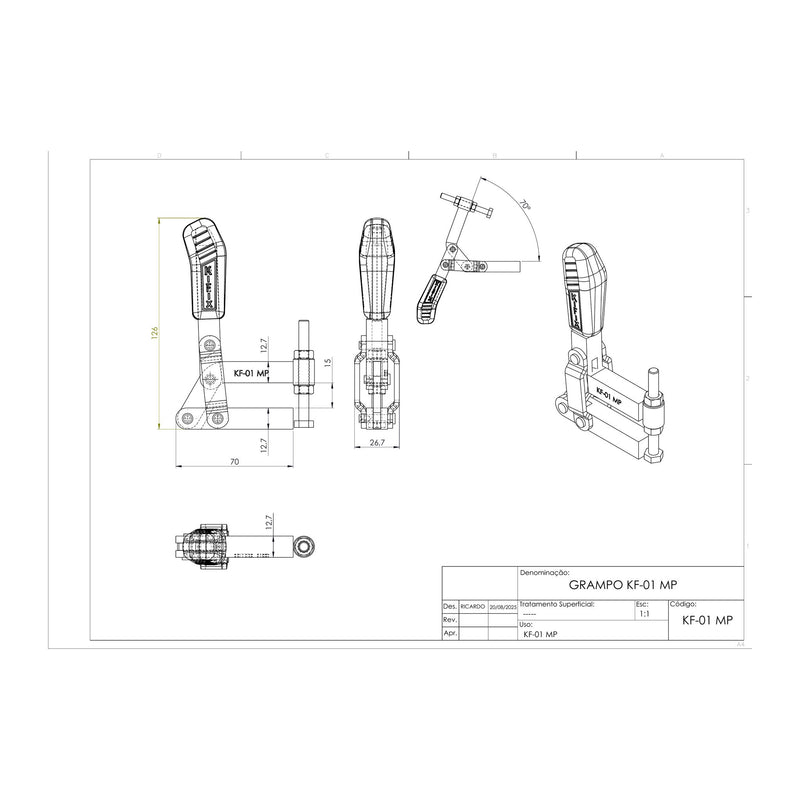

Letters refer to the Kifix dimension drawing in the image gallery.
| Spec | KF-01 MP | KF-02 MP | KF-03 MP |
|---|---|---|---|
| A | 125 mm (4.92 in) | 171 mm (6.73 in) | 191 mm (7.52 in) |
| B | 70 mm (2.76 in) | 92 mm (3.62 in) | 101 mm (3.98 in) |
| C | 15 mm (0.59 in) | 20 mm (0.79 in) | 30 mm (1.18 in) |
| D | 12.7 mm (0.50 in) | 14.3 mm (0.56 in) | 15.8 mm (0.62 in) |
Typical uses
- Quick-action hold-down in jigs and fixtures: Kifix vertical clamps lock with the handle upright, on an adaptable base, with an arm that carries the clamping spindle
- Welding fixtures and jigs
Industries served: Kifix makes quick-action clamps for all industrial segments, highlighting aeronautical, automotive, agricultural, furniture, food, chemical, pharmaceutical, cosmetic and metal-mechanical.
What's included
1 × Kifix KF-MP toggle clamp in the size you select (KF-01 MP, KF-02 MP or KF-03 MP).
Frequently Asked Questions
How does the KF-MP compare with the other Kifix vertical clamps we sell?
By holding force and spindle thread: KF-012 DB 90 kgf (198 lbf), M6; KF-211 DB 150 kgf (330 lbf), M8; KF-017 DB 170 kgf (374 lbf), M8; KF-311 DB 250 kgf (550 lbf), M10; KF-411 DB 650 kgf (1430 lbf), M10; KF-111 DB 680 kgf (1496 lbf), M10; the KF-MP series 160 to 450 kgf (352 to 990 lbf), M6 or M8. Choose the clamp whose holding force covers your job.
