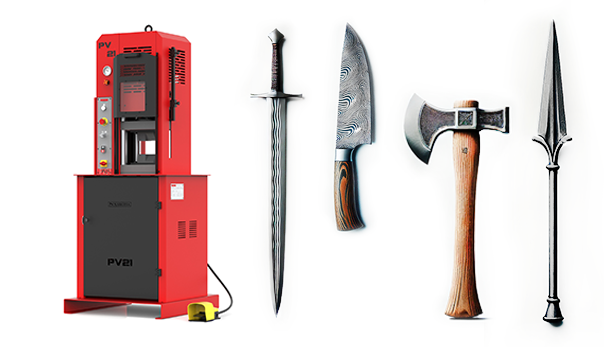

The Nargesa PV21 is a 21-metric-ton (23 US ton) hydraulic hot forging press with a 296 mm stroke, a 250 × 260 mm table and 0.03 mm repeatability. It runs 22 blows per minute over a 15 mm stroke, so it suits blacksmiths and Damascus makers who want controlled, quiet forging.
Key specs
| Force | 21 metric tons (23 US tons) |
|---|---|
| Stroke | 296 mm (11.65") |
| Table | 250 × 260 mm (10" × 10.2") |
| Repeatability | 0.03 mm (0.001") |
| Speeds | 13 mm/s working, 75 mm/s return; 22 blows/min over 15 mm (0.59 in) |
| Working height | 1020 mm (40") |
| Guidance | Four 55 mm (2.17 in) chrome-plated columns |
| Motor | 2.2 kW (3 CV) |
| Power supply | 230/400 V three-phase, 50/60 Hz, 9/5 A (220 V single-phase optional) |
| Machine dimensions | 786 × 800 × 2000 mm (30.9 × 31.5 × 78.7 in) |
| Weight | 500 kg (1,102 lb) |
What's included
- Press mold 20
- Standard bases in F-111 steel
- Delivered fully assembled
Options
- Press molds 21–24 and others in 1.2344 (H13) tool steel
Features and applications
Key Features
- 21 metric tons of forging force – Delivers 21 metric tons (23 US tons) of hydraulic pressing capacity for demanding hot-forging applications.
- Exceptional repeatability – Less than 0.03 mm (0.001") repeatability supports precise and consistent forging operations.
- Vertical downward press design – Keeps the workpiece supported on the table while the upper tooling applies pressure.
- 296 mm (11.65") maximum stroke – Provides substantial working clearance for a wide range of forging operations.
- Large 250 × 260 mm working area – Accommodates larger workpieces and allows two dies to be used side by side.
- Four rigid 55 mm chrome-plated guide columns – Help maintain table alignment and reduce unwanted lateral movement during pressing.
- Manual and automatic operating modes – Allows the operator to choose between maximum control and repetitive production.
- Adjustable upper and lower limit switches – Reduce unnecessary ram travel and help maintain consistent dimensions.
- Self-centering quick-change dies – Dies can be changed in approximately 45 seconds to reduce downtime between operations.
- Horizontal or vertical die positioning – Provides additional flexibility for different workpiece shapes and forging operations.
- 90-degree die rotation – Helps accommodate longer and unusually shaped workpieces, including swords.
- Custom die capability – Supplied mounting plates allow fabricators to manufacture and install custom tooling.
- Hot punching capability – A 40 mm (1.57") center hole allows certain hot punching operations directly through the table.
- 13 mm/s controlled working speed – Provides time to position and manipulate heated material during pressing.
- 75 mm/s return speed – Quickly resets the press between forging operations.
- Up to 22 cycles per minute – Provides fast repetitive forging over a 15 mm stroke.
- Low-noise hydraulic operation – Nargesa states its hydraulic forging presses operate at no more than approximately 65 dB.
- Minimal routine maintenance – Guide columns are designed to be kept clean and lubricated as part of routine maintenance.
- Fully assembled delivery – Reduces installation and setup requirements.
Applications
The Nargesa PV21 is designed for a wide range of professional hot-forging and precision metal-forming applications, including:
- Damascus steel welding and billet forging
- Knife making and knife forging
- Sword and blade forging
- Hot punching
- Stretching and drawing material
- Flattening and thickness reduction
- Hot forming and bending
- Horseshoe production
- Spear tip forging
- Hammer, plier and blacksmith tong production
- Tool manufacturing
- Ornamental and architectural metalwork
- Railings, gates and doors
- Pergolas and decorative structures
- Metal furniture
- Sculptures
- Decorative metalwork
- Agricultural tools
- Custom forged components
The combination of high pressing force, precise stroke control and interchangeable tooling allows the PV21 to be adapted for both traditional blacksmithing and specialized production applications.
It is particularly well suited to Damascus steel production and bladesmithing, where consistent pressure and precise control can significantly improve repeatability during hot welding, drawing and forming operations.
Why Choose the Nargesa PV21?
The PV21 is more than a general-purpose hydraulic press. It is specifically designed around the requirements of professional hot forging, combining pressing force with the control and flexibility needed for detailed, repeatable work.
Its vertical downward press configuration is one of its key advantages. The workpiece remains supported on the lower table while pressure is applied from above, allowing the operator to guide and position the material more naturally. This is particularly valuable when working on precision or delicate forging operations.
The PV21's repeatability of less than 0.03 mm (0.001") also makes it a strong choice for applications where consistent dimensions matter. This is especially beneficial for Damascus steel, knives, swords and repetitive production, where controlling the final thickness and maintaining consistent results can be critical.
The press also reduces downtime between operations with its self-centering quick-change tooling system, while horizontal and vertical die positioning, 90-degree rotation and custom-die capability give fabricators the flexibility to adapt the machine to their own forging processes.
For shops looking to increase productivity, the PV21 combines controlled hydraulic power with manual and automatic operating modes, adjustable stroke limits and rapid return speed, helping reduce unnecessary movement and repetitive manual labour.
Video
Capacity charts and documents
Compare Nargesa models
- Nargesa PH50 power hammer
- Nargesa NF70 hot wrought iron end machine
- Nargesa PC16 hot scroll end machine
- Nargesa H3 three-burner gas forge
- Nargesa H2 two-burner gas forge
- All Nargesa machines
Frequently Asked Questions
How much force does the PV21 have?
21 metric tons (23 US tons) over a 296 mm stroke, with 0.03 mm repeatability.
What power does the PV21 need?
Nargesa specifies a 2.2 kW motor on three-phase power (listed as 230/440 V and 230/400 V on its page), 50/60 Hz, with 220 V single-phase optional. Confirm your shop’s voltage with BTH Sales before ordering.
Can it run automatically?
Yes. It has manual and automatic modes, with top and bottom limit switches to avoid wasted movement.
Can it use two dies at once?
Yes. Nargesa says it can work with two side molds at the same time.
How long does delivery take?
BTH Sales ships across Canada from St. Marys, ON. This machine has a 4–6 week lead time; contact us for an exact date.
