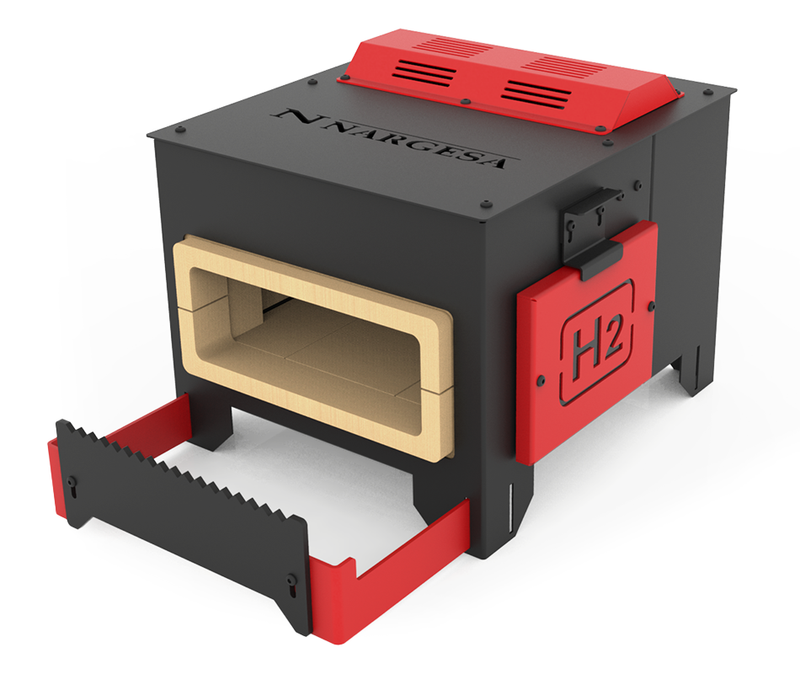

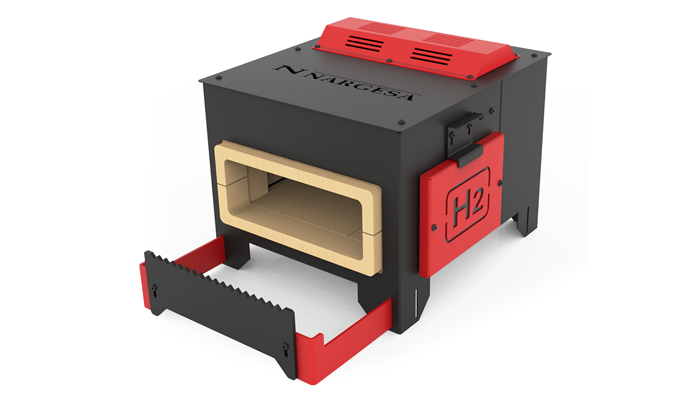

Nargesa Gas Forge Furnace H2
The Nargesa Forge Furnace H2 is a professional propane forge designed for blacksmithing, ornamental ironwork, and metal forming applications that require greater heating capacity than a single-burner forge. Equipped with two independently controlled burners, the H2 reaches temperatures above 1300°C (2372°F), making it ideal for forging, bending, shaping, forge welding preparation, heat treatment, and other hot metalworking processes.
Its larger combustion chamber provides additional workspace for longer stock and multiple workpieces, while independent burner control allows operators to use one or both burners as needed to optimize fuel consumption. A removable vermiculite separator further improves efficiency by reducing the active chamber size for smaller jobs.
Built for professional workshops, the H2 combines high heating performance with automatic electronic ignition, integrated safety systems, low emissions, and durable insulated construction.
Key Features
- Two independently controlled propane burners for increased heating capacity
- Reaches temperatures above 1300°C (2372°F)
- Larger combustion chamber for longer stock and multiple workpieces
- Independent burner operation helps reduce propane consumption
- High-efficiency burner technology designed to reduce propane usage by up to 75%*
- Removable vermiculite separator for improved efficiency on smaller workpieces
- Double-layer compacted vermiculite insulation for excellent heat retention
- Automatic electronic ignition system
- Precision pressure regulator with integrated pressure gauge
- Heat-resistant stainless steel gas hose
- Adjustable material support
- Removable side access doors for heating long bars and sections
- Thermocouple safety valve automatically shuts off gas if the flame is extinguished
- Anti-return valve for additional gas system protection
- Low CO emissions (0.002%)
- Delivered fully assembled and ready for operation
*Compared to similar furnaces in its category.
Applications
The Forge Furnace H2 is ideal for:
- Professional blacksmithing
- Ornamental iron fabrication
- Architectural metalwork
- Forging knives, axes, swords, and hand tools
- Horse shoeing and farrier work
- Heating steel for bending, twisting, upsetting, and shaping
- Forge welding preparation
- Heat treatment and tempering
- Wrought iron furniture fabrication
- Metal sculpture and artistic forging
- General fabrication and repair work
Technical Specifications
| Specification | Details |
|---|---|
| Fuel Type | LPG / Propane |
| Burner Configuration | Two independently controlled burners |
| Maximum Temperature | Over 1300°C (2372°F) |
| Gas Pressure | 0.1–1.5 Bar (1.45–21.76 PSI) |
| Maximum Gas Consumption | 0.7 kg/h at 1 Bar |
| Estimated Runtime (both burners) | Approx. 50 hours using a 35 kg propane cylinder |
| Estimated Runtime (Single Burner) | Approx. 100 hours |
| Ignition | Automatic electronic |
| Gas Hose | Stainless steel |
| Insulation | Double-layer compacted vermiculite |
| Internal Chamber | 324 × 100 × 240 mm (12.76" × 3.94" × 9.45") |
| Front Opening | 280 × 100 mm (11.02" × 3.94") |
| Side Openings | 140 × 100 mm (5.51" × 3.94") |
| Maximum Material Capacity | Ø80 mm (3.15") round stock |
| Material Support | Adjustable integrated support |
| Chamber Divider | Removable vermiculite separator |
| Side Doors | Removable |
| Safety Features | Thermocouple safety valve, anti-return valve |
| CO Emissions | 0.00% |
| Delivery | Fully assembled |
| Compliance | CE Compliant / RD919/2006 |
Frequently Asked Questions
What is the difference between the H1, H2, and H3 forge furnaces?
The H2 is the mid-sized model in the Nargesa forge furnace range. It features two independently controlled burners and a larger combustion chamber than the H1, providing greater heating capacity while remaining more compact than the H3.
What temperature can the H2 reach?
The Forge Furnace H2 reaches temperatures above 1300°C (2372°F), making it suitable for blacksmithing, forge welding preparation, heat treatment, and general metal forming.
Why are the burners independently controlled?
Each burner can be operated separately, allowing you to use only the heating capacity required for the job. This helps reduce propane consumption while maintaining the flexibility to heat larger workpieces when needed.
What materials can be heated in the H2?
The H2 is designed for heating steel, wrought iron, stainless steel, and other forgeable metals used in blacksmithing, fabrication, and ornamental ironwork.
Can long bars pass through the furnace?
Yes. Removable side access doors allow long stock to extend through the furnace while maintaining efficient heating inside the combustion chamber.
Is the furnace supplied ready to use?
Yes. The Forge Furnace H2 is delivered fully assembled with its burners, ignition system, pressure regulator, stainless steel gas hose, and integrated safety components.
What safety features are included?
The furnace includes a thermocouple safety valve that automatically shuts off the gas supply if the flame is lost, an anti-return valve to prevent reverse gas flow, automatic electronic ignition, and a protected integrated gas system.
Who is the H2 best suited for?
The H2 is ideal for blacksmiths, ornamental iron fabricators, metal artists, and fabrication shops that regularly work with longer stock, larger components, or higher production volumes than a single-burner forge can efficiently handle.
