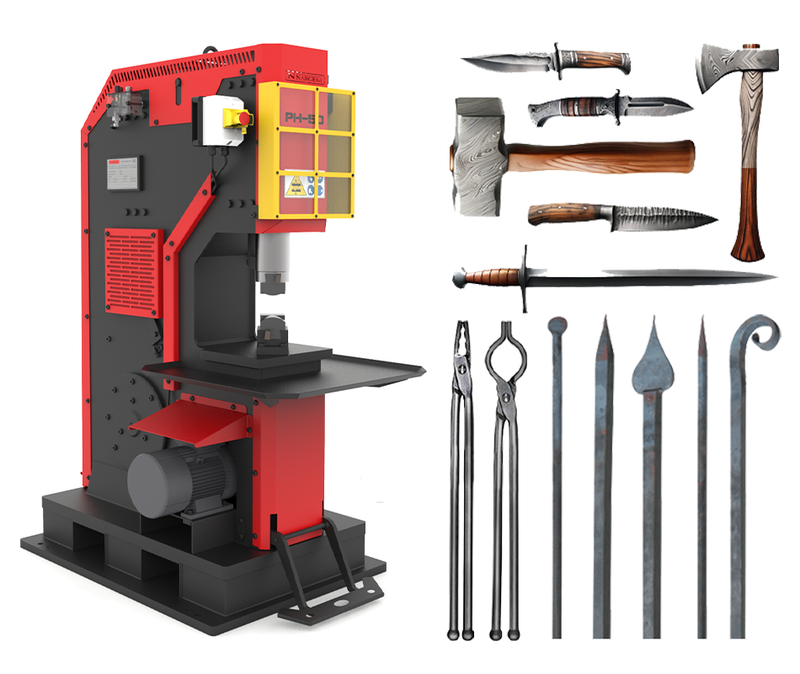

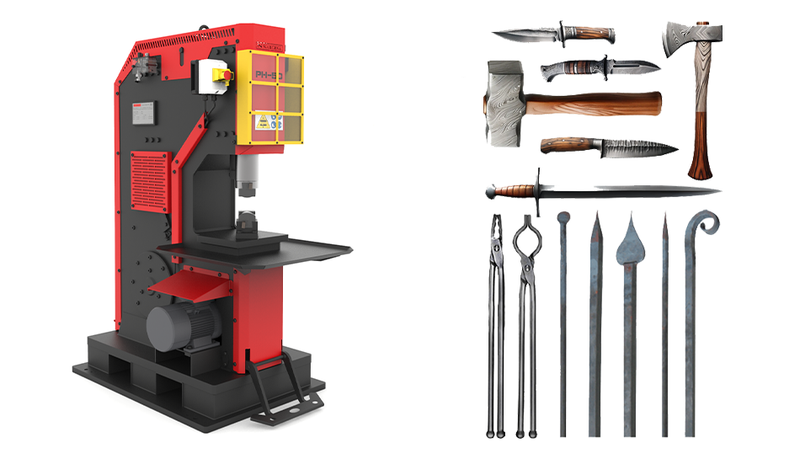

Nargesa Power Hammer PH50
The Nargesa PH50 Power Hammer is a professional pneumatic forging hammer designed for blacksmithing, ornamental ironwork, knife making, and hot metal forming applications. Delivering a powerful 50 kg (110 lb) striking force, the PH50 combines precision control with exceptional repeatability, allowing smiths and fabricators to efficiently shape, draw, flatten, and forge heated steel.
Manufactured entirely in Spain, the PH50 features a fully integrated air compressor, eliminating the need for an external compressed air supply and simplifying installation. Its heavy-duty welded steel frame, precision-machined components, automatic lubrication system, and advanced low-friction cylinder technology provide smooth, reliable performance while minimizing maintenance requirements.
Unlike many traditional power hammers that require specialized concrete foundations, the PH50 can be installed without extensive foundation work, making it an excellent choice for blacksmith shops, fabrication facilities, educational programs, and custom metalworking businesses seeking professional forging performance with lower installation costs.
Key Features
- Professional pneumatic power hammer with 50 kg (110 lb) striking force
- Built-in air compressor eliminates the need for an external compressed air system
- Precision-controlled pneumatic striking system for smooth, repeatable forging
- Welded and precision-machined steel frame for exceptional rigidity and durability
- Automatic lubrication system reduces maintenance and extends component life
- Advanced low-friction lapped cylinder technology improves striking efficiency
- Adjustable ram stroke provides excellent control across a variety of forging applications
- Intake and exhaust mufflers help reduce operating noise
- Double mechanical stop system enhances operator safety
- Adjustable front safety guard improves protection while maintaining visibility
- Near-zero maintenance design for dependable long-term operation
- Compatible with forklifts and overhead lifting equipment for easy installation
- Wide range of interchangeable tooling available for specialized forging operations
- Manufactured entirely in Spain
Applications
The Nargesa PH50 Power Hammer is designed for professional forging operations requiring controlled, repeatable impact force for shaping hot steel and other forgeable metals.
Typical applications include:
- Blacksmithing and artistic forging
- Ornamental ironwork and architectural metal fabrication
- Knife, sword, and blade manufacturing
- Forging decorative steel components
- Tool and die manufacturing
- Drawing, flattening, tapering, and upsetting hot steel
- Hot metal shaping and forming
- Restoration and heritage metalwork
- Custom fabrication and prototype development
- Educational blacksmithing and forging programs
Its controlled pneumatic striking system allows operators to perform both delicate finishing work and heavier forging operations with excellent consistency and precision.
System Configuration & Design
The PH50 is built around a precision pneumatic striking system that integrates the hammer, compressor, lubrication system, and operator controls into a single compact machine.
Core system components include:
- 50 kg (110 lb) pneumatic forging ram
- Integrated air compressor
- Precision-controlled striking mechanism
- Heavy-duty welded and machined steel frame
- Automatic lubrication system
- Low-friction lapped cylinder technology
- Adjustable ram stroke control
- Intake and exhaust mufflers
- Double mechanical stop safety system
- Adjustable front safety guard
- Standard upper and lower flat tooling
The integrated compressor design simplifies installation while eliminating the need for additional air equipment, allowing the PH50 to operate as a self-contained forging system.
Why Choose the Nargesa PH50 Power Hammer?
The PH50 is designed for professional blacksmiths and fabricators who require consistent forging performance, precise control, and dependable reliability without the complexity of traditional power hammer installations.
Its integrated compressor, precision pneumatic system, and automatic lubrication reduce setup time and ongoing maintenance while delivering the striking force needed for demanding forging applications. Combined with its heavy-duty construction and wide range of available tooling, the PH50 offers the flexibility to handle everything from decorative ironwork to precision blade forging.
Key advantages include:
- Powerful 50 kg (110 lb) striking force for professional forging
- Integrated compressor eliminates external air requirements
- Excellent strike control for consistent forging results
- Heavy-duty welded steel construction for long service life
- Automatic lubrication minimizes maintenance requirements
- No specialized foundation required for installation
- Wide selection of interchangeable tooling available
- Manufactured entirely in Spain for exceptional build quality
Whether producing ornamental ironwork, forged tools, blades, or custom metal components, the PH50 delivers the precision, durability, and efficiency required for professional forging operations.
Included Accessories
- Standard upper and lower flat tooling
- Support brackets/adapters for custom tooling
- Fully assembled machine ready for installation
Optional Tooling & Accessories
- Forging molds and dies
- Embossing tooling
- Cutting tools
- Punching tools
- Riveting dies
- Shaping dies
- Custom forging tooling
- Pneumatic system oil and maintenance accessories
Technical Specifications
| Specification | Details |
|---|---|
| Model | Nargesa PH50 Power Hammer |
| Hammer Type | Pneumatic Power Hammer |
| Nominal Dropping Weight | 50 kg (110 lb) |
| Strokes Per Minute | 240 |
| Ram Stroke | 180 mm (7") |
| Operating Range | 220 mm (9") |
| Maximum Round Capacity | Ø 70 mm (2.75") |
| Maximum Square Capacity | 60 × 60 mm (2.36" × 2.36") |
| Motor Power | 2.2 kW (3.0 HP) |
| Voltage | 230/400V Three-Phase |
| Optional Power | 220V Single-Phase |
| Dimensions | 808 × 1289 × 1768 mm (31.8" × 50.7" × 69.6") |
| Machine Weight | 1002 kg (2,209 lb) |
| Compressor | Integrated |
| Lubrication | Automatic |
| Construction | Welded and Machined Steel Frame |
| Country of Manufacture | Spain |
Frequently Asked Questions
What is the Nargesa PH50 Power Hammer used for?
The PH50 is designed for professional forging applications including blacksmithing, ornamental ironwork, knife making, tool manufacturing, hot metal forming, and custom steel fabrication.
How much striking force does the PH50 deliver?
The PH50 features a 50 kg (110 lb) nominal dropping weight, providing powerful, repeatable impact for shaping and forming heated steel.
Does the PH50 require an external air compressor?
No. The PH50 includes a built-in compressor, allowing it to operate as a self-contained pneumatic forging hammer without the need for an external compressed air system.
Does the PH50 require a special foundation?
One of the PH50's major advantages is that it does not require specialized foundation work like many traditional power hammers. This simplifies installation and reduces setup costs.
What materials can the PH50 forge?
The machine is designed primarily for hot-forged steel and iron, making it suitable for ornamental ironwork, bladesmithing, tool production, architectural metalwork, and general blacksmithing applications.
Is the PH50 difficult to maintain?
No. The PH50 features an automatic lubrication system, low-friction cylinder technology, and a near-zero maintenance design to help minimize routine servicing and maximize reliability.
Is additional tooling available?
Yes. A wide range of optional forging dies, embossing tools, cutting tools, punching dies, riveting tooling, shaping dies, and custom tooling are available to expand the machine's capabilities.
Where is the Nargesa PH50 manufactured?
The PH50 is designed and manufactured entirely in Spain, reflecting Nargesa's focus on quality engineering, precision manufacturing, and long-term reliability.
