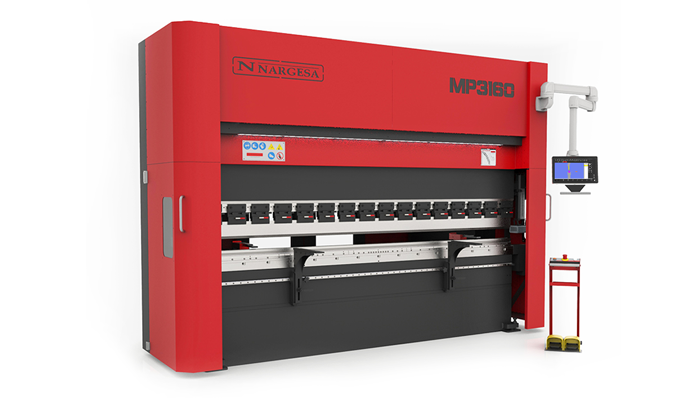

The Nargesa MP3160CNC is a 160-ton CNC hydraulic press brake with a 3100 mm (122") total folding length, an ESA S840W CNC with a 15" touchscreen and an automatic crowning table. It is built for fabrication shops and manufacturers bending steel, stainless steel and aluminum sheet in production.
Key specs
| Bending force | 160 tons |
|---|---|
| Total folding length | 3100 mm (122") |
| Inner folding length | 2630 mm (103.5") |
| Neck (throat) | 400 mm (15.75") |
| Max. punch displacement | 220 mm (8.66") |
| Free distance table/slide | 445 mm (17.52") |
| Back gauge travel (X) | 600 + 100 mm (23.62" + 4") |
| Punch speeds | 9 mm/s working, 97 mm/s return, 200 mm/s approach |
| Motor | 15 kW (20 HP), inverter start |
| Power supply | 230/400 V three-phase |
| CNC controller | ESA S840W, 15" colour touchscreen |
| Machine dimensions | 3751 × 1997 × 2585 mm (147.67" × 78.62" × 101.77") |
| Weight | 11,900 kg (26,235 lb) |
What's included
- Promecam punch PS.135.85.R08
- Promecam die M.460.R
- Automatic crowning table
- Basic CNC software plus complete Windows PC software (2D bending simulator and optimizer)
- Delivered fully assembled
Options
- Motorized R axis for the back gauge
- Z1–Z2 axes (requires R axis and CNC graphics software)
- CNC 2D graphics and bending calculation software
- ESA3D BEND 3D programming software
- Additional Promecam punches and dies
Features and applications
Key Features
- 160-ton hydraulic bending capacity for demanding industrial sheet metal applications
- 122-inch (3100 mm) total folding length for large workpieces
- 103.5-inch (2630 mm) inner folding length
- ESA S840W CNC control with 15-inch HD colour touchscreen
- Automatic Y1/Y2 CNC bending axis control
- Automatic crowning table for consistent bending across the full working length
- High-precision GIVI MISURE optical encoder with 0.005 mm resolution
- CNC-controlled X-axis back gauge with 0.05 mm mechanical precision
- Adaptive electronic hydraulic pressure control
- Electronic frame compensation for improved bending consistency
- 445 mm / 17.52-inch free distance between table and upper beam
- 400 mm / 15.75-inch neck depth
- Maximum punch displacement of 220 mm / 8.66 inches
- Punch working speed of 9 mm/s
- Punch return speed of 97 mm/s
- Punch lowering speed of 200 mm/s
- Automatic hydraulic oil temperature compensation
- Promecam punch clamping system with quick-release segmented flanges
- Euro Promecam/Wila die clamping system
- Front sheet-support arms on linear recirculating ball screw guides
- High-frequency laser safety system
- Electronically monitored side doors and safety muting
- LED bending-zone lighting
- Industry 4.0 connectivity
- Ethernet, USB, EtherCAT and CANbus connectivity
- PC-based 2D and 3D bending programming and simulation
- Support for more than 20 CNC interface languages
- Robust welded, stabilized and machined steel chassis
- Manufactured in Spain to CE industrial machinery standards
Applications
The MP3160CNC is designed for manufacturers requiring high-capacity, repeatable sheet metal bending across a wide range of industrial applications.
Typical applications include:
- Heavy-duty sheet metal fabrication
- Industrial equipment manufacturing
- Structural metal fabrication
- Steel component production
- Stainless steel fabrication
- Aluminum component manufacturing
- Copper sheet forming
- Enclosures and cabinets
- Machine frames and housings
- Industrial panels
- Custom metal components
- Repetitive production bending
- Large-format sheet metal work
The combination of 160 tons of bending force and 3100 mm of folding length makes the MP3160CNC particularly well suited to large components where a smaller press brake would require multiple setups or repositioning.
Why Choose the Nargesa MP3160CNC?
The Nargesa MP3160CNC is built for manufacturers that need high-capacity sheet metal bending with the precision and repeatability of CNC control. Its combination of 160 tons of bending force, 122 inches of folding length and automatic crowning makes it well suited to large and demanding production work.
Key advantages include:
- 160 tons of hydraulic bending capacity for heavy-duty sheet metal fabrication
- 122-inch (3100 mm) total folding length for large workpieces
- Automatic Y1/Y2 CNC axis control for accurate and repeatable bending
- Automatic crowning table to compensate for deflection across the full bending length
- High-precision optical encoder with 0.005 mm resolution
- CNC-controlled X-axis back gauge with 0.05 mm mechanical precision
- Adaptive electronic pressure control
- ESA S840W CNC control with 15-inch HD touchscreen
- 2D and 3D bending programming, simulation and sequence optimization
- Industry 4.0 connectivity with Ethernet, USB, EtherCAT and CANbus
- Optional R and Z1-Z2 axes for additional back-gauge automation
- Optional ESA3D BEND CAD/CAM software
- Robust welded, stabilized and machined steel construction
- Manufactured in Spain using European hydraulic and electronic components
Video
Capacity charts and documents
Compare Nargesa models
- Nargesa MP1500CNC 40-ton CNC press brake
- Nargesa PP200CNC 20-ton horizontal press brake
- All Nargesa machines
Frequently Asked Questions
What can the Nargesa MP3160CNC bend?
It is a 160-ton CNC press brake with a 3100 mm (122") total folding length for steel, stainless steel, aluminum, copper and other sheet metals. Nargesa publishes a folding table showing the force needed for each thickness and die opening.
What power does the MP3160CNC need?
Nargesa specifies a 15 kW (20 HP) motor on a 230/400 V three-phase supply. Confirm your shop’s voltage with BTH Sales before ordering.
Which CNC controller does it use?
The ESA S840W with a 15" colour touchscreen, metric and imperial units, 20+ languages, and USB, Ethernet, EtherCAT and CANbus ports.
What tooling is included?
A Promecam PS.135.85.R08 punch, an M.460.R die and the automatic crowning table. The R axis, Z1–Z2 axes and 3D software are optional.
How long does delivery take?
BTH Sales ships across Canada from St. Marys, ON. This machine has a 4–6 week lead time; contact us for an exact date.
