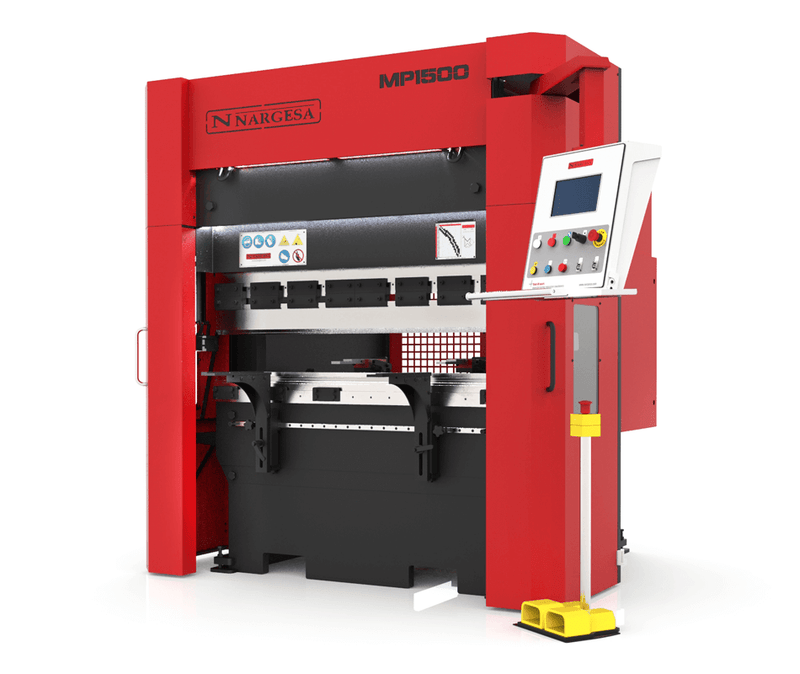

Nargesa MP1500CNC Hydraulic Press Brake
The Nargesa MP1500CNC Hydraulic Press Brake is a precision CNC sheet metal bending machine designed for demanding fabrication and industrial production environments. With a 40-ton hydraulic capacity and 1,500 mm (59") total folding length, the MP1500CNC combines a rigid, precision-machined steel chassis with advanced CNC positioning and hydraulic control for accurate, repeatable bending.
At the heart of the machine is the ESA S630 CNC control, featuring a 10" high-resolution colour touchscreen and an intuitive graphical interface. The CNC system automatically controls the vertical bending axis and positions the machine according to programmed part dimensions, helping operators produce consistent bends without manually calculating each machine position.
Advanced features including electronic pressure control, frame deflection compensation, high-precision optical measurement, hydraulic oil temperature compensation, and a motorized X-axis back gauge further improve bending accuracy and repeatability.
The MP1500CNC is manufactured entirely in Spain and uses established European hydraulic, electrical, and control components. It is designed for fabricators and manufacturers that need CNC automation and industrial bending performance in a relatively compact 40-ton press brake.
Key Features
- 40-ton hydraulic bending capacity for demanding sheet metal fabrication
- 1,500 mm (59") total folding length with a 1,250 mm (49.2") inner folding length
- ESA S630 CNC control with a 10" high-resolution colour touchscreen
- Automatic CNC control of the Y axis for precise and repeatable bending operations
- 2D and 3D graphic programming and simulation for simplified setup and bending-sequence planning
- Stores and manages bending programs and tooling information through the CNC control
- Motorized X-axis back gauge with ESA servo control and Bosch Rexroth recirculating ball screw guides
- 0.05 mm (0.002") mechanical precision on the standard X axis
- 0.005 mm (0.0002") optical encoder resolution for high-precision vertical-axis measurement
- Electronic frame compensation helps compensate for chassis deflection during bending
- Adaptive electronic pressure control adjusts hydraulic pressure according to the bending operation
- Hydraulic oil temperature compensation helps maintain consistent machine performance during production
- Synchronized Atos hydraulic system with safety monitoring and pressure control
- Promecam tooling system with segmented punch clamping and Euro Promecam die guide rail
- High-speed laser safety system with electronically monitored safety features
- LED bending-zone lighting improves visibility around the work area
- Industry 4.0 connectivity with Ethernet, USB, and remote diagnostic capabilities
- Optional motorized R axis for additional back-gauge positioning control
- Optional Z1-Z2 axis for automated rear-gauge finger positioning and parallelism adjustment
- 5.5 kW (7.5 HP) motor and 230/400 V three-phase power supply
- Welded, stabilized, and machined steel chassis designed for industrial production
- Manufactured in Spain using established European components
Applications
The MP1500CNC is designed for precision sheet metal bending where repeatability, controlled positioning, and production efficiency are important.
Typical applications include:
- General sheet metal fabrication
- Industrial equipment manufacturing
- Machinery component fabrication
- Enclosures and cabinets
- Metal panels and covers
- Structural sheet metal components
- HVAC and ventilation components
- Architectural metalwork
- Custom fabrication
- Repetitive production bending
- Prototype and low-volume CNC bending

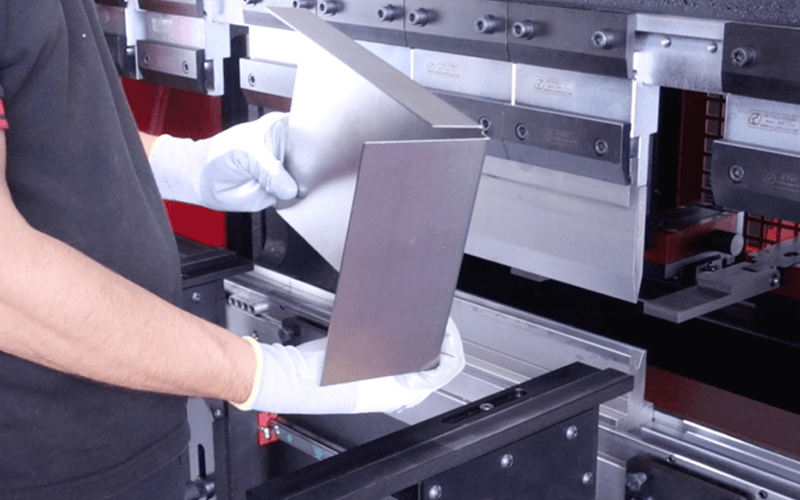

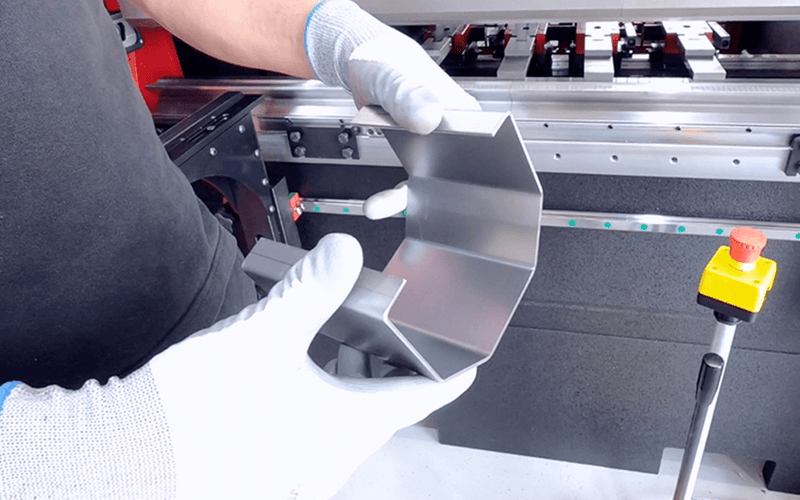

- Multi-bend components requiring programmed sequences
The CNC control allows operators to program individual bends as well as complex multi-step parts, making the MP1500CNC suitable for both one-off components and repeat production.
Why Choose the Nargesa MP1500CNC?
The MP1500CNC is designed for fabricators who need more than basic hydraulic bending capability. Its combination of 40-ton capacity, CNC automation, precision measurement, hydraulic control, and programmable back-gauge positioning provides a controlled bending process from setup through production.
The ESA S630 CNC simplifies programming by allowing operators to enter the required part dimensions and bending sequence while the machine automatically controls the programmed axis positions. Graphic programming and simulation further reduce the need for manual calculations and help operators identify the correct bending sequence before production.
For repeat manufacturing, features such as electronic frame compensation, adaptive pressure control, optical axis measurement, and temperature compensation help maintain consistent results throughout production.
The machine can also be expanded with the optional R axis and Z1-Z2 axis, providing additional automation for more complex or higher-volume bending applications.
Included Accessories / Included Components
The MP1500CNC includes:
- ESA S630 CNC control with 10" colour touchscreen

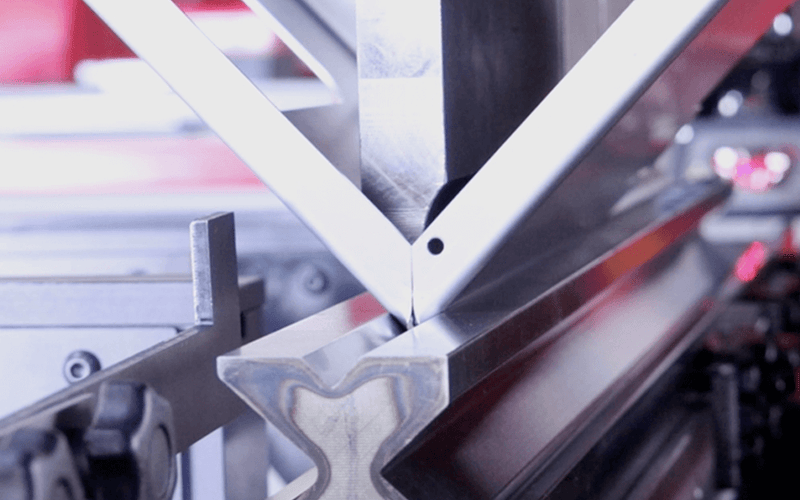

- Promecam PS.135.85.R08 punch, induction hardened and ground in the working areas
- Promecam M.460.R die, induction hardened and ground in the working areas
- Promecam segmented punch clamping system
- Euro Promecam die guide rail
- Front sheet-support arms
- Complete PC software for graphic bending programming and simulation
- Bending program and tooling library
- CNC touchscreen interface
The standard Promecam tooling is manufactured from C45 steel, with a specified mechanical resistance of 560–710 N/mm² and hardness of 54–60 HRC.
Optional Accessories
Motorized R Axis
The optional motorized R axis adds automated vertical positioning of the rear gauge. It can be installed when the machine is purchased or added later.
Key specifications include:
- Maximum R-axis travel: 150 mm (5.9")
- Search speed: 130 mm/s (5.12 in/s)
- Mechanical precision: 0.05 mm (0.002")
- High-precision recirculating ball linear guides
- 1 Nm / 5,000 rpm servo motor
- CANopen communication
Z1-Z2 Axis
The optional Z1-Z2 axis automatically adjusts the horizontal position of the rear-gauge fingers according to the programmed workpiece and tooling configuration.
It provides:
- Search speed: 400 mm/s (15.75 in/s)
- 2,600 mm (102.36") axis stroke
- Mechanical precision: 0.05 mm (0.002")
- High-precision recirculating ball linear guides
- 1 Nm / 5,000 rpm servo motors
The Z1-Z2 option requires the R axis and graphic/CNC bending calculation software.
CNC Simulator & Optimizer
The optional CNC simulator and optimizer can be installed directly on the machine's CNC control. It provides additional capabilities for simulating and optimizing bending sequences and can be installed at the time of purchase or later.
Additional Promecam Tooling
Additional Promecam punches and dies can be specified for applications requiring different tooling configurations.
Technical Specifications
| Specification | Nargesa MP1500CNC |
|---|---|
| Machine Type | CNC Hydraulic Press Brake |
| Hydraulic Bending Capacity | 40 tons |
| Total Folding Length | 1,500 mm / 59" |
| Inner Folding Length | 1,250 mm / 49.2" |
| Maximum Punch Displacement | 200 mm / 7.9" |
| Neck Depth | 270 mm / 10.6" |
| Punch Working Speed | 8.3 mm/s / 0.3 in/s |
| Punch Return Speed | 120 mm/s / 4.7 in/s |
| Punch Lowering Speed | 200 mm/s / 7.9 in/s |
| X-Axis Displacement | 600 + 100 mm / 23.6 + 3.9" |
| X-Axis Mechanical Precision | 0.05 mm / 0.002" |
| Optical Encoder Resolution | 0.005 mm / 0.0002" |
| Motor Power | 5.5 kW / 7.5 HP |
| Power Supply | 230/400 V, three-phase |
| CNC Control | ESA S630 |
| CNC Touchscreen | 10" high-resolution colour |
| CNC Languages | 20+ |
| Standard Punch | Promecam PS.135.85.R08 |
| Standard Die | Promecam M.460.R |
| Ethernet | 10/100 Mbit LAN |
| USB | USB 2.0 |
| Machine Dimensions | 2,110 × 1,880 × 2,210 mm (83" × 74" × 87") |
| Machine Weight | 4,900 kg / 10,803 lb |
| Country of Manufacture | Spain |
