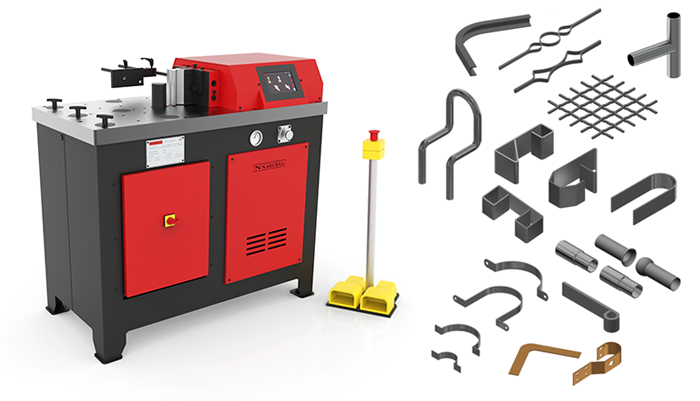

The Nargesa PP200CNC is a 20-ton horizontal hydraulic press brake with an ESA S625 CNC and a 250 mm stroke. It bends, folds, cuts, punches, notches and expands or reduces tube ends with interchangeable tooling, so it suits fabrication and wrought iron shops that need one flexible machine.
Key specs
| Force | 20 tons (200 kN) |
|---|---|
| Max. stroke | 250 mm (9.84 in) |
| Speeds | 9.8 mm/s working, 35 mm/s return |
| Frame | 60 mm (2.36 in) welded steel monoblock |
| Motor | 2.2 kW (3 HP) at 1400 rpm |
| Power supply | 230/400 V three-phase |

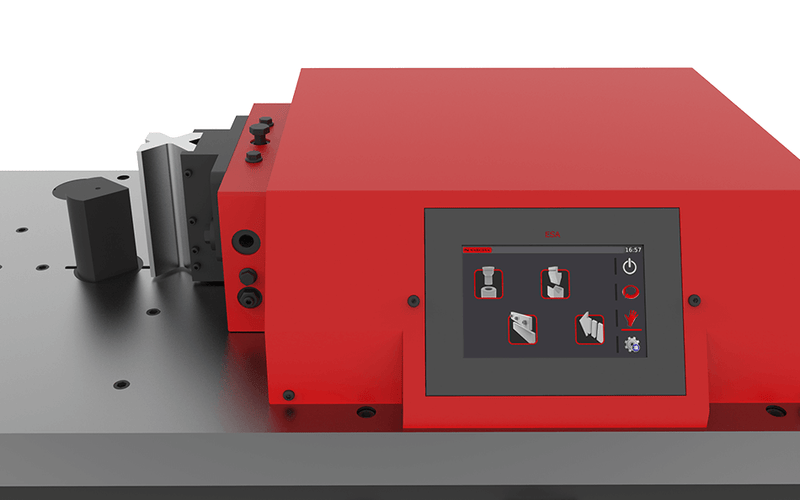

| CNC controller | ESA S625, 10,000 programs, automatic angle control |
| Machine dimensions | 660 × 1180 × 1130 mm (26 × 46.5 × 44.5 in) |
| Weight | 665 kg (1,466 lb) |
What's included
- Folding die with four V openings (16, 22, 35, 50 mm; max. 8 mm sheet)
- Bending punch, 100 mm at 80°
- Delivered fully assembled on a palletized base
Options
- Automated X-axis gauge
- Bending simulation software
- Hole punching, tube trimming, corner rounding and other tooling
Features and applications
Key Features & Benefits
Applications & Capabilities

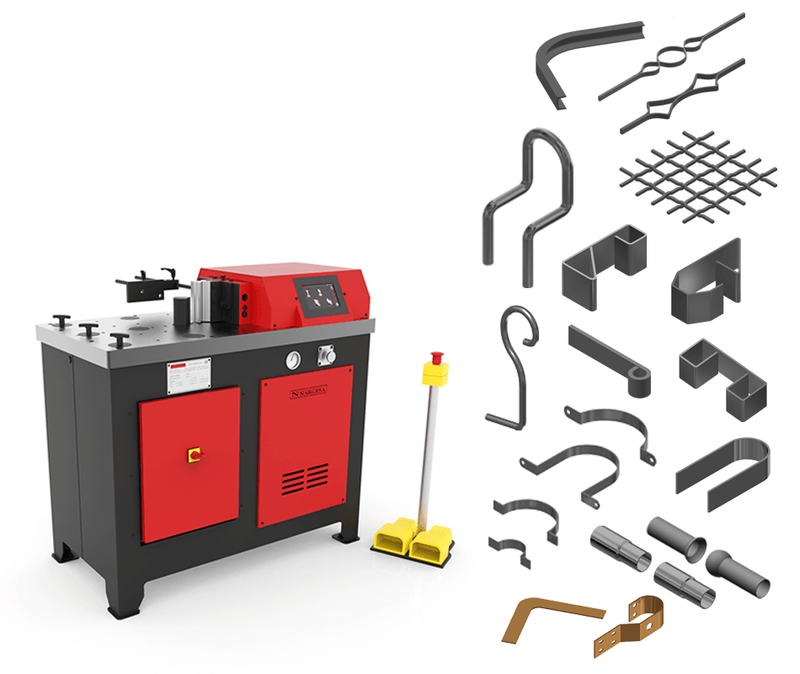

The PP200CNC is used across a wide range of fabrication and metal forming operations, including:
- Metal bending and folding (flat bar, sheet, plate)
- Pipe and tube forming (expanding, reducing, shaping ends)
- Profile bending (angle iron, structural sections, solid bar)
- Pipe notching and joint preparation
- Punching and cutting of flat bar and light sheet materials
- Cold forming and decorative forging components
- Custom radius forming with controlled straight-end geometry
Why Choose the PP200CNC?
The PP200CNC is designed for workshops that need to consolidate multiple forming processes into a single machine while maintaining CNC-level precision and repeatability.
It improves workflow efficiency by combining bending, cutting, punching, and shaping operations into one compact horizontal system, reducing the need for multiple dedicated machines.
Video
Capacity charts and documents
Compare Nargesa models
- Nargesa MP3160CNC 160-ton CNC press brake
- Nargesa MP1500CNC 40-ton CNC press brake
- All Nargesa machines
Frequently Asked Questions
What can the PP200CNC do?
Bending, folding, cutting, cold forming, tube end expanding and reducing, notching, punching and assembly, using Nargesa tooling or dies made by any toolmaker.
What power does the PP200CNC need?
Nargesa specifies a 2.2 kW (3 HP) motor on a 230/400 V three-phase supply. Confirm your shop’s voltage with BTH Sales before ordering.
What tooling comes with it?
A four-V folding die (16, 22, 35 and 50 mm openings, up to 8 mm sheet) and a 100 mm, 80° bending punch.
Is there an automatic back gauge?
Yes, as an option. The automated gauge positions the X axis from the ESA S625 CNC.
How long does delivery take?
BTH Sales ships across Canada from St. Marys, ON. This machine is arriving soon; contact us for an ETA.
