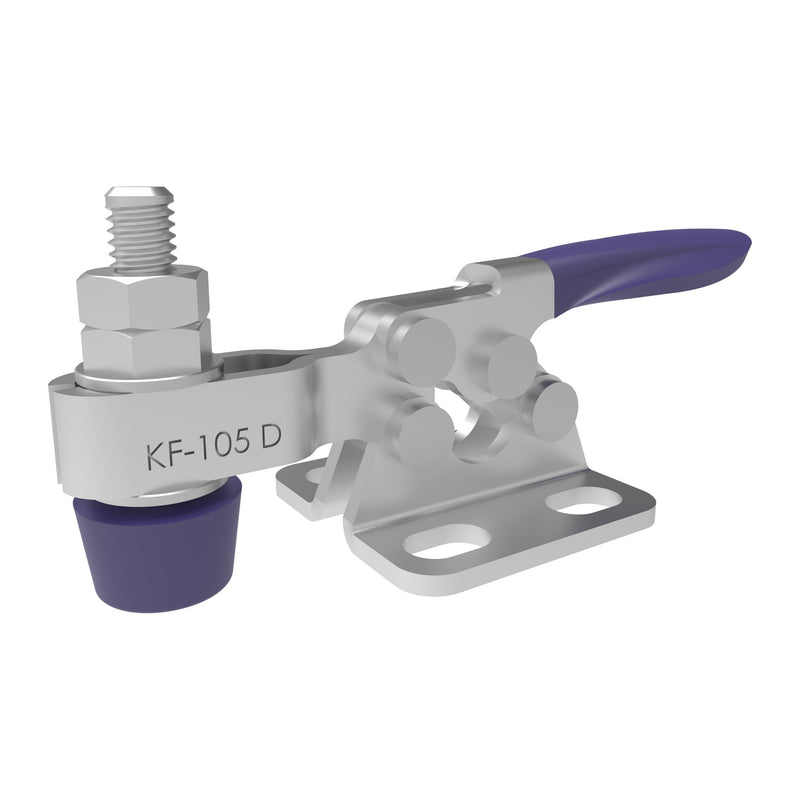

The Kifix KF-105 is a horizontal hold-down toggle clamp rated at 30 kgf (66 lbf) holding force, with an M4 spindle thread, for light jigs, templates and woodworking. This model has a flanged base. Kifix toggle clamps are made in Brazil, and BTH Sales is the exclusive Canadian importer of Kifix.
Ships across Canada from our St. Marys, Ontario warehouse.
Key specs
| Holding force | 30 kgf (66 lbf) |
|---|---|
| Opening angle | 85° |
| Spindle thread | M4 |
| Base | Flanged base |
| Weight | 0.030 kg (0.066 lb) |
| Brand | Kifix (Brazil) |
Dimensions

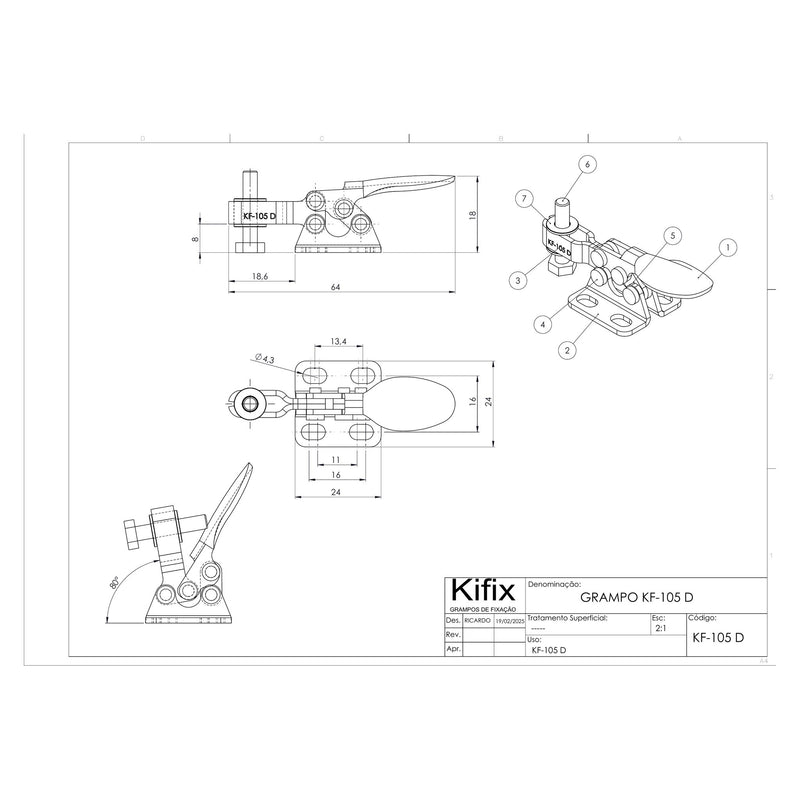

Letters refer to the Kifix dimension drawing in the image gallery.
| A | 18 mm (0.71 in) |
|---|---|
| B | 64 mm (2.52 in) |
| C | 8 mm (0.31 in) |
| D | 13.5 mm (0.53 in) |
| E | 16 mm (0.63 in) |
| F | 24 mm (0.94 in) |
| G | 24 mm (0.94 in) |
| H | 18.6 mm (0.73 in) |
| J | 4.3 mm (0.17 in) |
Typical uses
- Quick-action hold-down in jigs and fixtures: Kifix horizontal clamps lock with the handle lying flat, on an adaptable base, with an arm that carries the clamping spindle
- Welding fixtures and jigs
Industries served: Kifix makes quick-action clamps for all industrial segments, highlighting aeronautical, automotive, agricultural, furniture, food, chemical, pharmaceutical, cosmetic and metal-mechanical.
What's included
1 × Kifix KF-105 D clamp.
Frequently Asked Questions
How does this compare with the other Kifix horizontal clamps we sell?
By holding force and spindle thread: KF-105 D 30 kgf (66 lbf), M4; KF-103 D 75 kgf (165 lbf), M6; KF-523 D 180 kgf (396 lbf), M8; KF-515 DS 360 kgf (792 lbf), M8 solid bar; KF-541 D 400 kgf (880 lbf), M10. Choose by force and the clearance you need for the handle.
