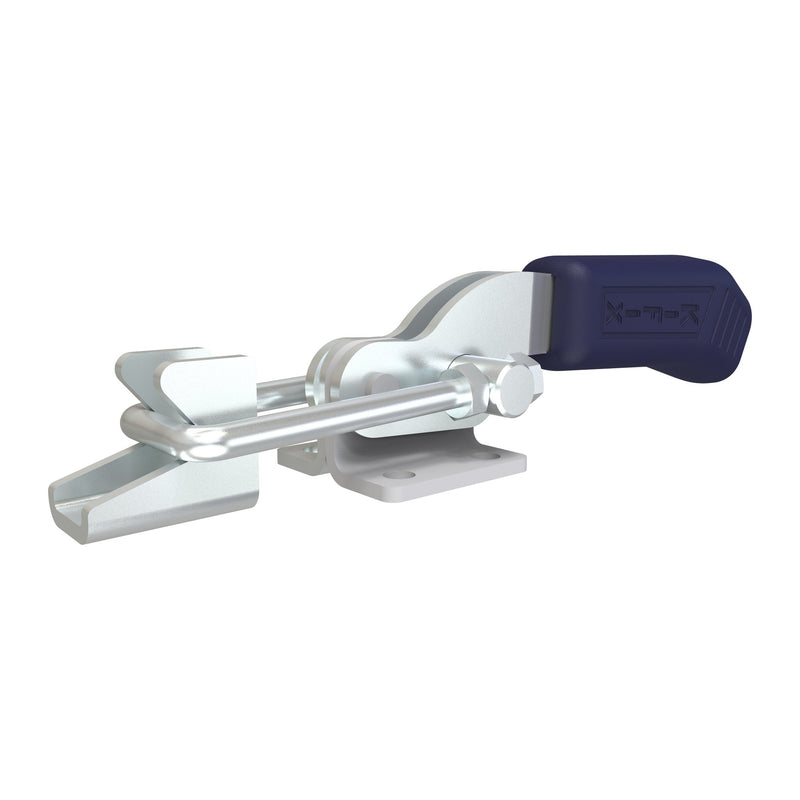

The Kifix KF-233 is a pull-action latch clamp rated at 160 kgf (352 lbf) holding force, with 14 mm (0.55 in) of plunger travel and an M4 threaded hook, for boxes, small lids and jigs. This model has a flanged base. Kifix toggle clamps are made in Brazil, and BTH Sales is the exclusive Canadian importer of Kifix.
Ships across Canada from our St. Marys, Ontario warehouse.
Key specs
| Holding force | 160 kgf (352 lbf) |
|---|---|
| Plunger travel | 14 mm (0.55 in) |
| Hook thread | M4 |
| Base | Flanged base |
| Weight | 0.120 kg (0.264 lb) |
| Brand | Kifix (Brazil) |
Dimensions

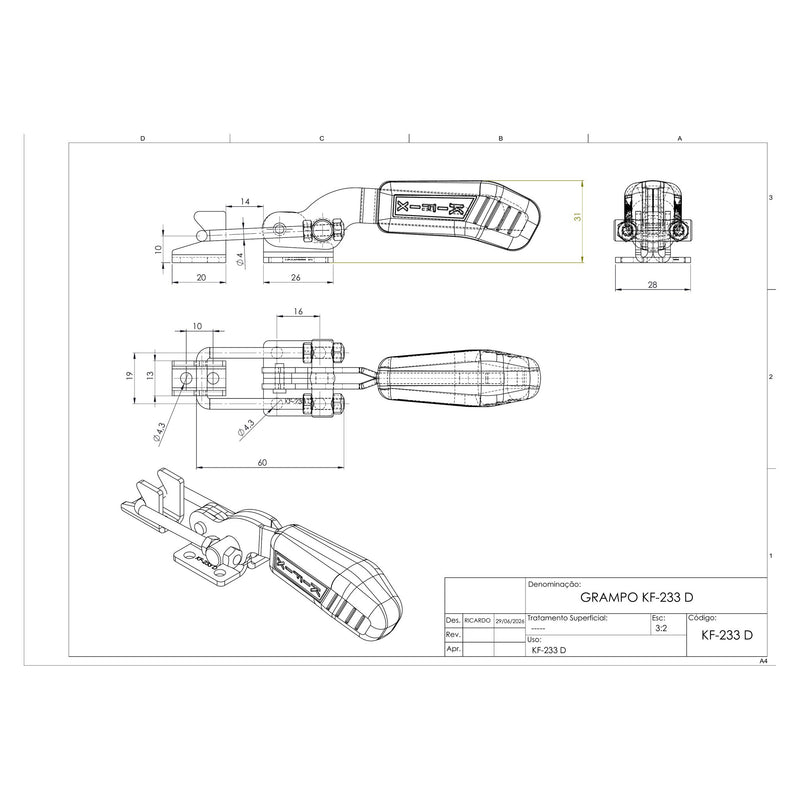

Letters refer to the Kifix dimension drawing in the image gallery.
| A | 31 mm (1.22 in) |
|---|---|
| B min. | 112 mm (4.41 in) |
| B max. | 126 mm (4.96 in) |
| C | 10 mm (0.39 in) |
| D | 16 mm (0.63 in) |
| E | 19 mm (0.75 in) |
| F | 26 mm (1.02 in) |
| G | 28 mm (1.10 in) |
| H | 20 mm (0.79 in) |
| J | 4.3 mm (0.17 in) |
| L | 13 mm (0.51 in) |
| M | 19 mm (0.75 in) |
| N | 4 mm (0.16 in) |
| O | 10 mm (0.39 in) |
| Q | 55 mm (2.17 in) |
Typical uses
- Pulling and holding parts or closures together with a latch (tension) action; Kifix latch clamps come with a straight (R) or bent (D) base that can be welded or bolted on
- Kifix also makes some latch models that take a padlock or other safety device when locked; ask us before ordering if you need one
Industries served: Kifix makes quick-action clamps for all industrial segments, highlighting aeronautical, automotive, agricultural, furniture, food, chemical, pharmaceutical, cosmetic and metal-mechanical.
What's included
1 × Kifix KF-233 clamp.
Frequently Asked Questions
How does a pull-action latch clamp work?
Closing the handle pulls the hook toward the clamp body and locks it over centre, holding a lid, cover or fixture closed until you release the handle.
How does this compare with the other Kifix latch clamps we sell?
By holding force: KF-233 D 160 kgf (352 lbf); KF-743 D and KF-643 D 200 kgf (440 lbf); KF-423 220 kgf (484 lbf); KF-133 D 300 kgf (660 lbf); KF-843 D 340 kgf (748 lbf). Check plunger travel and hook thread on each product page.
