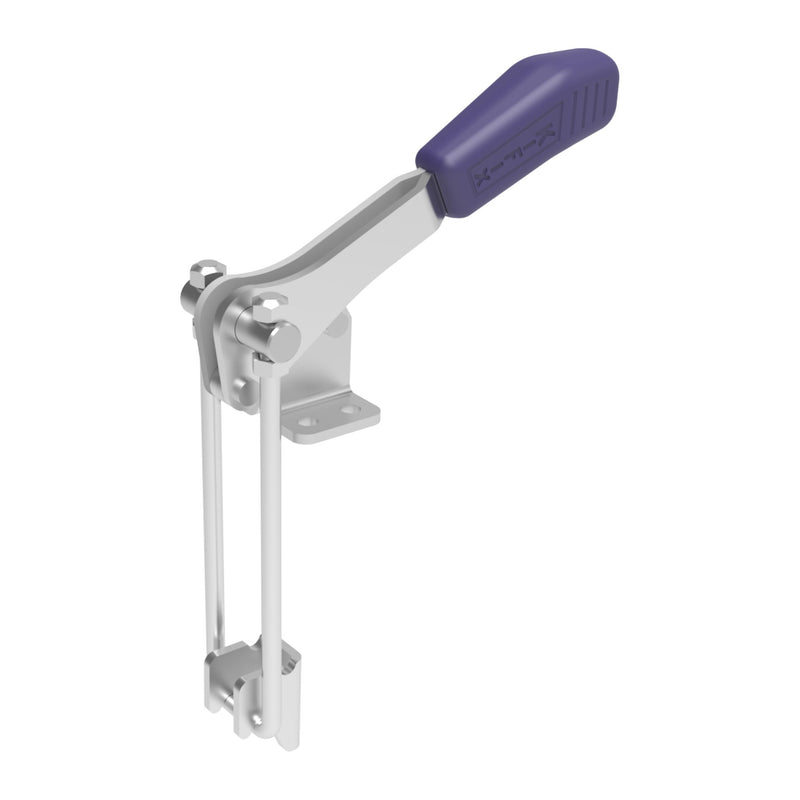

The Kifix KF-423 is a pull-action latch clamp rated at 220 kgf (484 lbf) holding force with an M5 threaded hook, for doors, covers and fixtures. Kifix toggle clamps are made in Brazil, and BTH Sales is the exclusive Canadian importer of Kifix.
Ships across Canada from our St. Marys, Ontario warehouse.
Key specs
| Holding force | 220 kgf (484 lbf) |
|---|---|
| Hook thread | M5 |
| Base | Bent base (standard on the KF-423) |
| Weight | 0.230 kg (0.506 lb) |
| Brand | Kifix (Brazil) |
Sometimes listed as KF-423 D; the bent base is standard.
Dimensions
Letters refer to the Kifix dimension drawing in the image gallery.
| A | 77 mm (3.03 in) |
|---|---|
| B | 122 mm (4.80 in) |
| C max. | 83 mm (3.27 in) |
| D | 12.7 mm (0.50 in) |
| D2 | 142 mm (5.59 in) |
| E | 22.4 mm (0.88 in) |
| F | 25.4 mm (1.00 in) |
| G | 35.1 mm (1.38 in) |
| H | 25 mm (0.98 in) |
| J1 | 5.1 mm (0.20 in) |
| J2 | 4.3 mm (0.17 in) |
| N | 5 mm (0.20 in) |
| O | 14 mm (0.55 in) |
| Q | 123 mm (4.84 in) |
Typical uses
- Pulling and holding parts or closures together with a latch (tension) action; Kifix latch clamps come with a straight (R) or bent (D) base that can be welded or bolted on
- Kifix also makes some latch models that take a padlock or other safety device when locked; ask us before ordering if you need one
Industries served: Kifix makes quick-action clamps for all industrial segments, highlighting aeronautical, automotive, agricultural, furniture, food, chemical, pharmaceutical, cosmetic and metal-mechanical.
What's included
1 × Kifix KF-423 clamp.
Frequently Asked Questions
How does a pull-action latch clamp work?
Closing the handle pulls the hook toward the clamp body and locks it over centre, holding a lid, cover or fixture closed until you release the handle.
How is the KF-423 mounted?
Kifix latch clamps have a base that can be welded or bolted on. The KF-423 comes with a bent base as standard.
How does the KF-423 compare with the other Kifix latch clamps we sell?
By holding force and hook thread: KF-233 D 160 kgf (352 lbf), M4; KF-743 D and KF-643 D 200 kgf (440 lbf), M5; KF-423 220 kgf (484 lbf), M5; KF-133 D 300 kgf (660 lbf), M6; KF-843 D 340 kgf (748 lbf), M6. Kifix catalogues the KF-423 in a different latch family (KF-423/433/443) from the others.
