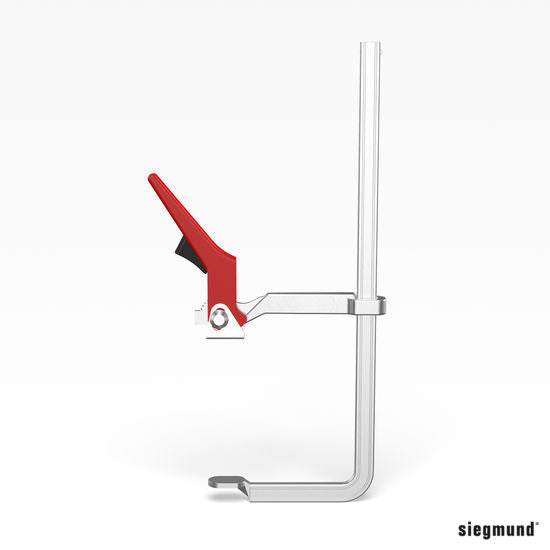

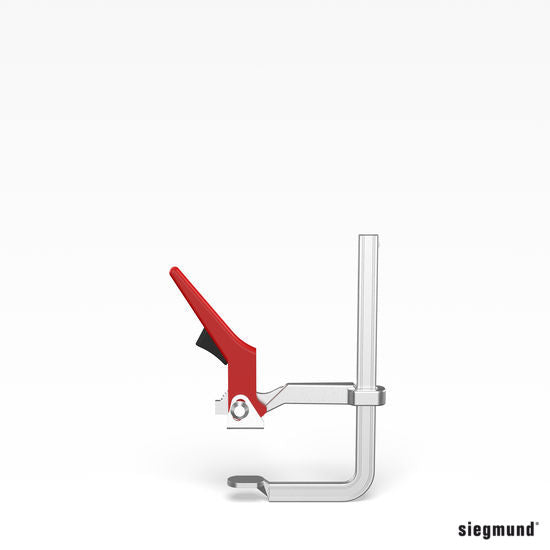

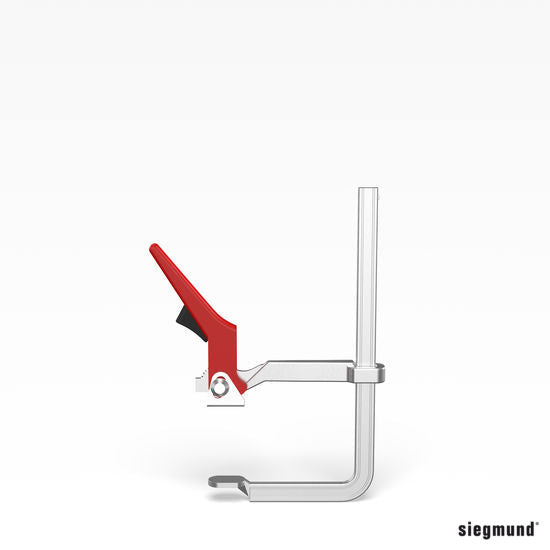

Items 280616, 280616.1, 280616.2 and 280616.3: Siegmund Fast Tension Clamp, Standard S20, S25, S30 and S40, for System 28 work. Siegmund describes it as a conventional fast tension clamp whose simple, precise mechanism enables fast clamping, and offers it in four sizes: 200 x 100, 250 x 120, 300 x 140 and 400 x 120 mm (length x width). BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Siegmund article | 280616 (siegmund.com) | 280616.1 (siegmund.com) | 280616.2 (siegmund.com) | 280616.3 (siegmund.com) |
|---|---|---|---|---|
| Description | Fast Tension Clamp, Standard S20 | Fast Tension Clamp, Standard S25 | Fast Tension Clamp, Standard S30 | Fast Tension Clamp, Standard S40 |
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) | |||
| Length | 200 mm (7.87 in) | 250 mm (9.84 in) | 300 mm (11.81 in) | 400 mm (15.75 in) |
| Width | 100 mm (3.94 in) | 120 mm (4.72 in) | 140 mm (5.51 in) | 120 mm (4.72 in) |
| Weight | 1.39 kg (3.06 lb) | 1.56 kg (3.44 lb) | 2.29 kg (5.05 lb) | 2.47 kg (5.45 lb) |
| GTIN | 4251805917840 | 4251805919493 | 4251805919509 | 4251805919516 |
Compatibility
- Fits: Siegmund System 28 welding tables and tooling with Ø28 mm bores on a 100 mm grid. Siegmund System 28 accessories also fit other 28 mm system welding tables with Ø28 mm bores on a 100 mm grid. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
- Not compatible: System 16 (Ø16 mm) tables; Siegmund builds each system around one bore size.
- Works with: other Siegmund System 28 clamps, bolts, stops, squares and U-squares on the same table.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
Choose one option; each option is one piece:
- 1 x Siegmund Fast Tension Clamp, Standard S20 (280616)
- 1 x Siegmund Fast Tension Clamp, Standard S25 (280616.1)
- 1 x Siegmund Fast Tension Clamp, Standard S30 (280616.2)
- 1 x Siegmund Fast Tension Clamp, Standard S40 (280616.3)
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. BTH Sales does not sell cobots; for cobot cells we help with table integration and fixturing (see cobot welding with Siegmund tables). Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Typical uses
- Fast clamping with a simple, precise mechanism (Siegmund).
- Siegmund describes System 28 as ideal for light to heavy components and designed for maximum clamping forces, multi-ton structures and high distortion forces.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Frequently Asked Questions
Which size should I choose?
Pick by reach. Siegmund lists S20 (280616) at 200 x 100 mm, S25 (280616.1) at 250 x 120 mm, S30 (280616.2) at 300 x 140 mm and S40 (280616.3) at 400 x 120 mm.
How is this different from the Professional Fast Tension Clamp?
Siegmund calls this a conventional fast tension clamp with a simple, precise mechanism. The Professional Fast Tension Clamp (280615.N) is a ratchet clamp whose force is set with the grating, with a height-adjustable cast iron cross.
Will it fit other 28 mm welding tables?
Yes, if the table has Ø28 mm bores on a 100 mm grid. Check the bore diameter and grid before ordering. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
