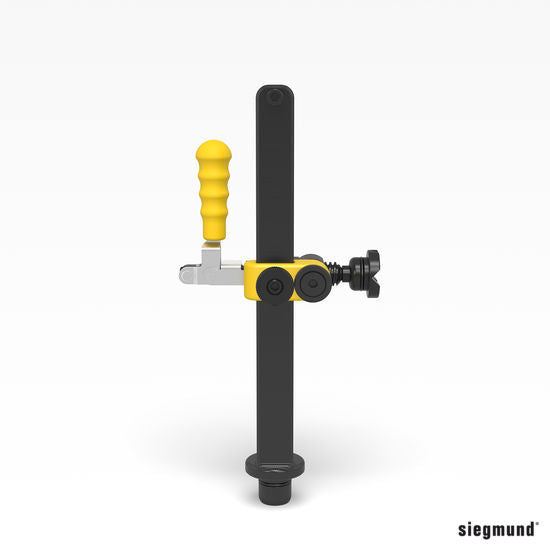

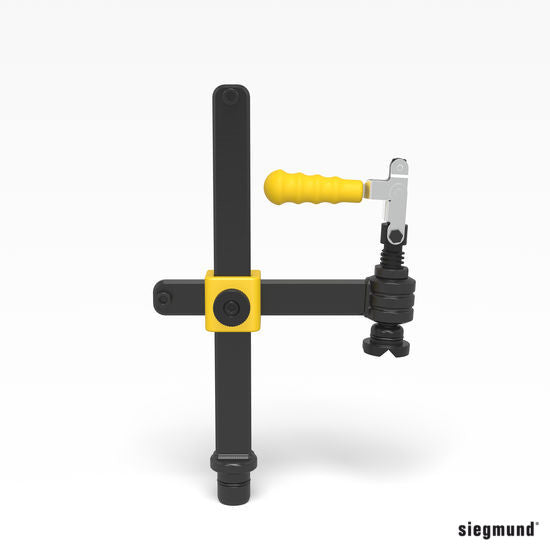

Items 280611.1 and 280611.2: Siegmund Professional Screw Clamp with vertical action toggle, straight or 45°/90°, for System 28 welding tables with Ø28 mm bores. The toggle clamps vertically from above for maximum clamping stability, with a stronger clamping stroke than conventional fast tension clamps, at up to 2.5 kN. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Siegmund article | 280611.1 (siegmund.com) | 280611.2 (siegmund.com) |
|---|---|---|
| Description | Professional Screw Clamp with vertical action toggle | Professional Screw Clamp 45°/90° with vertical action toggle |
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) | |
| Width | 222 mm (8.74 in) | – |
| Height | 310 mm (12.20 in) | |
| Weight | 2.86 kg (6.31 lb) | 2.5 kg (5.51 lb) |
| Max. clamping force | 2.5 kN (≈ 562 lbf) | |
| Spindle | Ball diameter 16 mm, trapezoid thread 20 x 4 mm | |
| Prism | Interchangeable | |
| Vertical bar | Hardened and reinforced | |
| Height adjustment | Handwheel on the cast iron cross | |
| GTIN | 4251805920451 | 4251805920444 |
Compatibility
- Fits: Siegmund System 28 welding tables and tooling with Ø28 mm bores on a 100 mm grid. Siegmund System 28 accessories also fit other 28 mm system welding tables with Ø28 mm bores on a 100 mm grid. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
- Not compatible: System 16 (Ø16 mm) tables; Siegmund builds each system around one bore size.
- Works with: other Siegmund System 28 clamps, bolts, stops, squares and U-squares on the same table.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
Choose one option; each option is one piece:
- 1 x Siegmund Professional Screw Clamp with vertical action toggle (280611.1)
- 1 x Siegmund Professional Screw Clamp 45°/90° with vertical action toggle (280611.2)
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. BTH Sales does not sell cobots; for cobot cells we help with table integration and fixturing (see cobot welding with Siegmund tables). Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Typical uses
- Quick, effortless clamping from above: Siegmund says vertical clamping gives maximum clamping stability.
- Jobs that need a longer stroke: Siegmund highlights a stronger clamping stroke than conventional fast tension clamps.
- Siegmund describes System 28 as ideal for light to heavy components and designed for maximum clamping forces, multi-ton structures and high distortion forces.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Frequently Asked Questions
What is the difference between 280611.1 and 280611.2?
Both are Siegmund Professional Screw Clamps with vertical action toggle, rated at 2.5 kN maximum clamping force and 310 mm high. 280611.1 is the straight version (222 mm wide, 2.86 kg). 280611.2 is the 45°/90° version (2.5 kg).
Why choose a toggle screw clamp over a fast tension clamp?
Siegmund says the special feature of this screw clamp is a stronger clamping stroke compared with conventional fast tension clamps, and that clamping vertically from above gives maximum clamping stability. The height is set quickly with the handwheel on the cast iron cross.
Can I replace worn parts instead of buying a new clamp?
Yes. Siegmund sells the spare parts individually. Its parts list for 280611.1 is 280632.N, 280631.N, 280617, 280662.2, 280618.N, 009902.1 and 280657.1.N; for 280611.2 it is 280633.N, 280617.2, 280662.2, 289109.N.Set, 289108.N, 009902.1 and 280657.1.N. Email sales@bthsales.ca with the part number you need.
Will it fit other 28 mm welding tables?
Yes, if the table has Ø28 mm bores on a 100 mm grid. Check the bore diameter and grid before ordering. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
