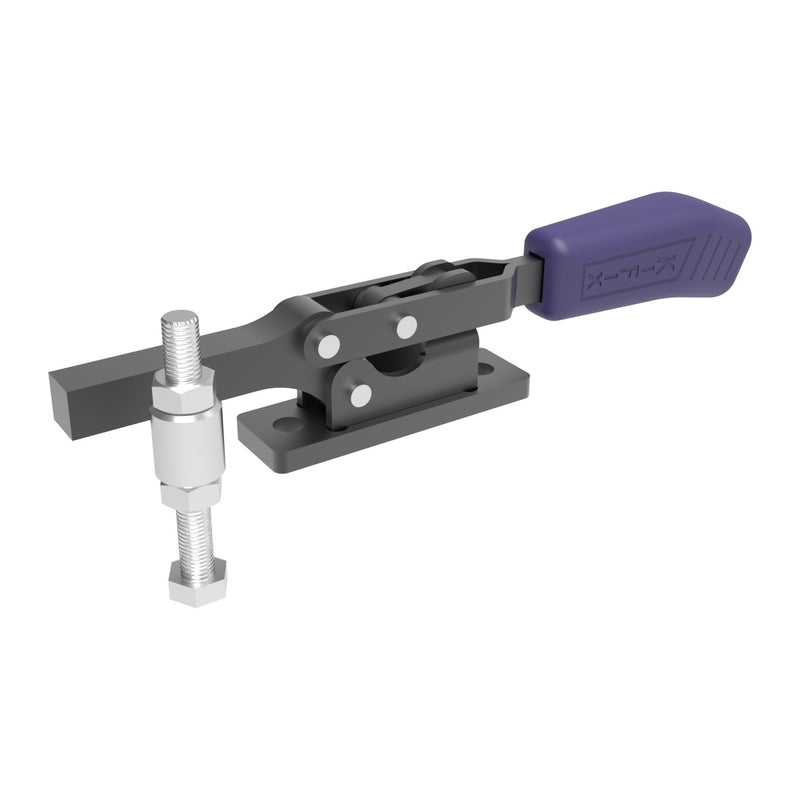

The Kifix KF-515 is a horizontal hold-down toggle clamp rated at 360 kgf (792 lbf) holding force, with an M8 spindle thread, for fixtures and assembly. This model has a flanged base, solid bar arm. Kifix toggle clamps are made in Brazil, and BTH Sales is the exclusive Canadian importer of Kifix.
Ships across Canada from our St. Marys, Ontario warehouse.
Key specs
| Holding force | 360 kgf (792 lbf) |
|---|---|
| Opening angle | 85° |
| Spindle thread | M8 |
| Base | Flanged base |
| Arm | Solid bar |
| Weight | 0.520 kg (1.144 lb) |
| Brand | Kifix (Brazil) |
Dimensions

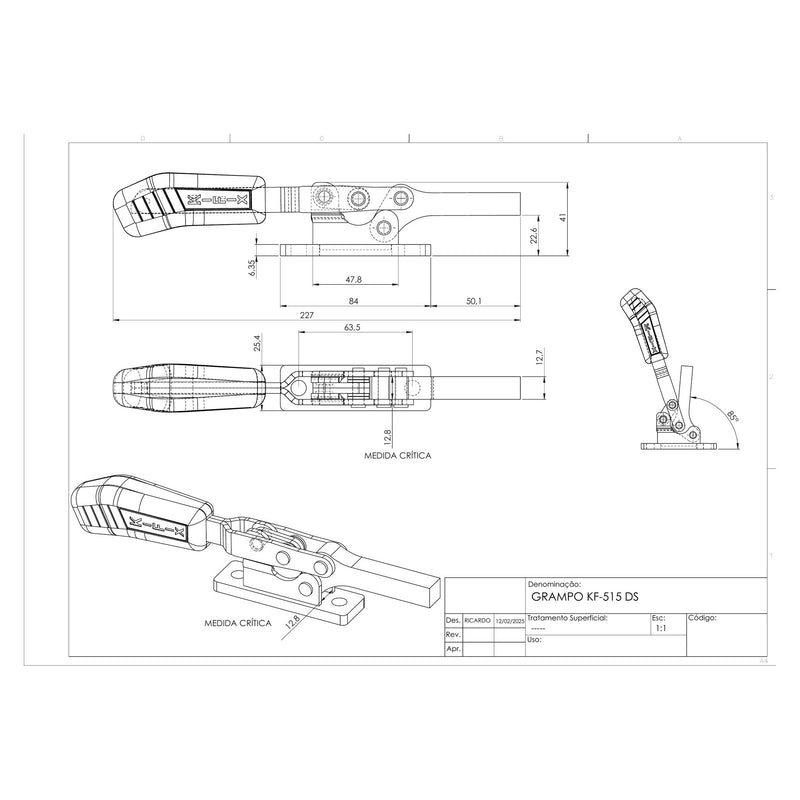

Letters refer to the Kifix dimension drawing in the image gallery.
| A | 40.8 mm (1.61 in) |
|---|---|
| B | 228 mm (8.98 in) |
| C | 22.3 mm (0.88 in) |
| D | 63.5 mm (2.50 in) |
| F | 84 mm (3.31 in) |
| G | 25.4 mm (1.00 in) |
| H | 50 mm (1.97 in) |
| J | 8.5 mm (0.33 in) |
| K | 12.7 mm (0.50 in) |
| L | 12.7 mm (0.50 in) |
| E | – |
Compare
The Kifix KF-515 is comparable in style to the DESTACO 215-U and Carr Lane CL-350-HTC. The DESTACO 215-U is a U-bar clamp; the KF-515 has a solid bar arm.
DESTACO and Carr Lane are trademarks of their respective owners; BTH Sales and Kifix are not affiliated with them. Part numbers are shown for identification and comparison only; check holding force and dimensions before substituting.
Typical uses
- Quick-action hold-down in jigs and fixtures: Kifix horizontal clamps lock with the handle lying flat, on an adaptable base, with an arm that carries the clamping spindle
- Welding fixtures and jigs
Industries served: Kifix makes quick-action clamps for all industrial segments, highlighting aeronautical, automotive, agricultural, furniture, food, chemical, pharmaceutical, cosmetic and metal-mechanical.
What's included
1 × Kifix KF-515 DS clamp.
Frequently Asked Questions
How does this compare with the other Kifix horizontal clamps we sell?
By holding force and spindle thread: KF-105 D 30 kgf (66 lbf), M4; KF-103 D 75 kgf (165 lbf), M6; KF-523 D 180 kgf (396 lbf), M8; KF-515 DS 360 kgf (792 lbf), M8 solid bar; KF-541 D 400 kgf (880 lbf), M10. Choose by force and the clearance you need for the handle.
