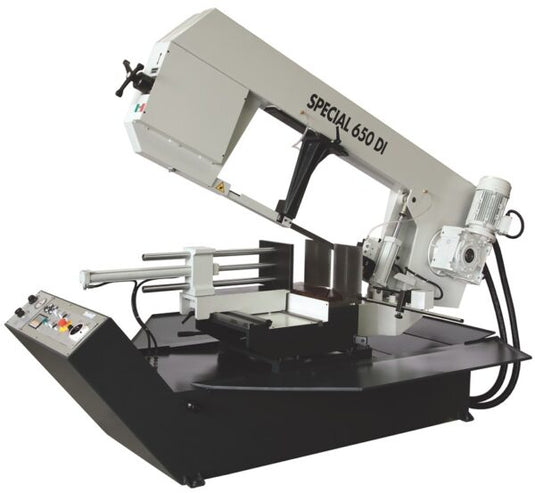

MACC: Special 650 DI Bandsaw

MACC: Special 650 DI Bandsaw

BTH Sales
$44,110.00
$44,110.00
Sale Sold out
/
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

MAXIMUM CUTTING CAPACITIES:

Solid Round Tube Round Tube Square Tube Rectangular Tube

 Imperial:

  • Straight Cut: 7.9"
  • 45° Left Cut: 7.9"
  • 60° Left Cut: 7.9"
  • 45° Right Cut: 7.9"
  • 60° Right Cut: 7.9"

Metric:

  • Straight Cut: 200mm
  • 45° Left Cut: 200mm
  • 60° Left Cut: 200mm
  • 45° Right Cut: 200mm
  • 60° Right Cut: 200mm

 Imperial:

  • Straight Cut: 18.1"
  • 45° Left Cut: 17.7"
  • 60° Left Cut: 9.4"
  • 45° Right Cut: 17.7"
  • 60° Right Cut: 11.8"

Metric:

  • Straight Cut: 460mm
  • 45° Left Cut: 450mm
  • 60° Left Cut: 240mm
  • 45° Right Cut: 450mm
  • 60° Right Cut: 300mm

 Imperial:

  • Straight Cut: 17.7"
  • 45° Left Cut: 16.9"
  • 60° Left Cut: 11.8"
  • 45° Right Cut: 16.1"
  • 60° Right Cut: 11.8"

Metric:

  • Straight Cut: 450mm
  • 45° Left Cut: 430mm
  • 60° Left Cut: 300mm
  • 45° Right Cut: 410mm
  • 60° Right Cut: 300mm

 Imperial:

  • Straight Cut: 17.7"x24.4"
  • 45° Left Cut: 15.7"x17.7"
  • 60° Left Cut: 8.7"x12.6"
  • 45° Right Cut: 13.4"x17.7"
  • 60° Right Cut: 10.6"x16.5"

Metric:

  • Straight Cut: 450x620mm
  • 45° Left Cut: 400x450mm
  • 60° Left Cut: 220x320mm
  • 45° Right Cut: 340x450mm
  • 60° Right Cut: 270x42 0mm

TECHNICAL DATA AND STANDARD ACCESSORIES

  • Highly efficient semiautomatic belt saw machine with excel- lent cutting accuracy, used to cut middlesize/bigsize and full bars. Its sturdy structure provides the machine with the requi- red stiffness and cutting unit accuracy.
  • High-capacity band control by motor with inverter and special reducer with bronze gear and tempered worm screw
  • Appropriately dimensioned flywheels
  • Strong blade guides with tight stress-raiser bearings and adjustable widia tips
  • Band stretching is obtained by electro-mechanical blade ten- sioner with microswitch for blade rotation
  • Safety device on the flywheel casing and on the blade
  • Cutting thickness 1,5 mm
  • Cutting range 60°left 60°right
  • Blade cleaning device with brush
  • Motor hydraulic gearcase 0,37 kW
  • 0,09 kW electropump for band cooling
  • Vice Jaws height 250 mm
  • Vice Jaws lenght 200 mm
  • Bed heigth 760 mm
  • Machine weight 1250 kg 12260 N
