MAXIMUM CUTTING CAPACITIES:
| Round Tube | Square Tube | Rectangular Tube |
|
Imperial:
Metric:
|
Imperial:
Metric:
|
Imperial:
Metric:
|
TECHNICAL DATA AND STANDARD ACCESSORIES

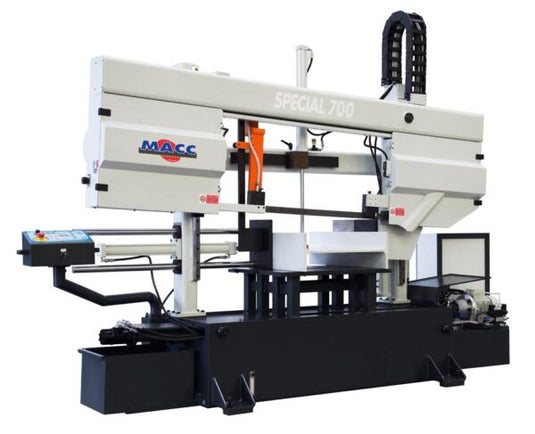

- Highly efficient semiautomatic belt saw with excellent cutting accuracy, used to cut middlesize and large bars and sections. Its sturdy structure and arc sliding vertically on two columns provide the machine with the required stiffness and cutting unit accuracy.
- Motor power 4 kW
- Control unit motor 1,5 kW
- Electric pump 0,12 kW
- Fly wheel dimensions ø 520 mm
- Blade size: (lenght x width x thick) 5540x41x1,3 mm
- Cutting thickness 1,5 mm
- Cutting angle max 45° right – 60° left
- Appropriately dimensioned flywheels
- Coolant tank capacity 50 l
- Blade cleaning device with brush
