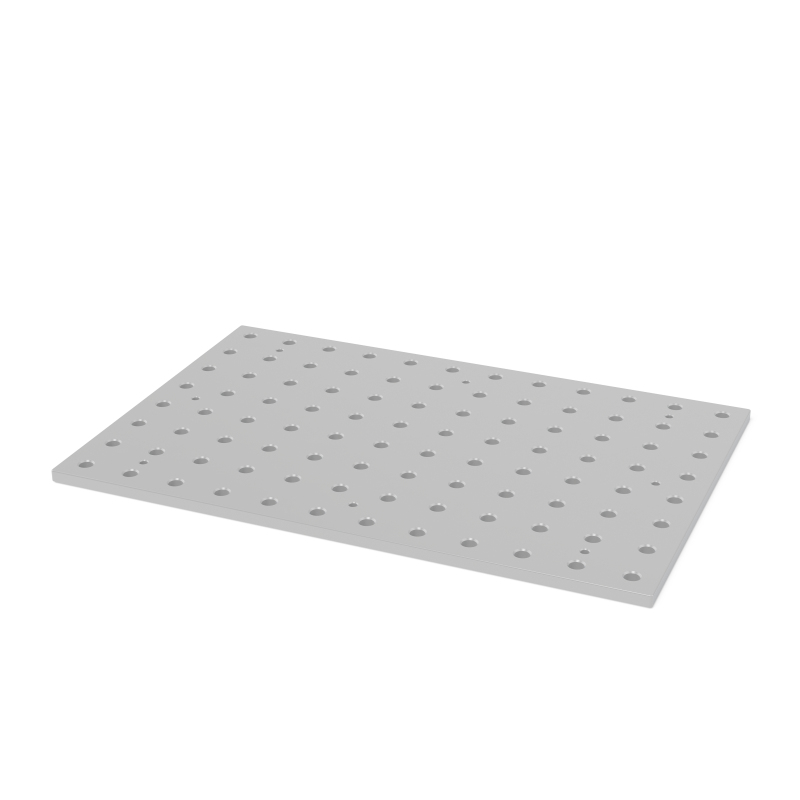

The Siegmund Perforated Plate X8.7 1200x800x25 (284004.X07) is a System 28 workstation plate in Siegmund X8.7 tool steel, 1200 x 800 mm and 25 mm thick, weighing 180 kg. Siegmund calls it the ideal basis for your fixtures. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Item no. | 284004.X07 (siegmund.com) |
|---|---|
| Siegmund name | Perforated plate X8.7 1200x800x25 |
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) |
| Length | 1200 mm (47.24 in) |
| Width | 800 mm (31.50 in) |
| Material thickness | 25 mm (0.98 in) |
| Weight | 180 kg (396.83 lb) |
- Material: tool steel X8.7 (Siegmund).
- Mounting: Siegmund specifies 8x mounting screws 00005770 to fit a 1200 x 800 mm plate on the Workstation base frame. The screws are not included with the plate or the base frame.
Compatibility
- Fits: Siegmund lists this plate as compatible with the Workstation 1208, the height-adjustable rotating table and the 500 kg mobile lifting table.
- Not compatible: System 16 (Ø16 mm) tables; Siegmund builds each system around one bore size.
- Related products: 284004.P System 28 Perforated plate S355J2+N 1200x800x25 Plasma nitrided, 164004.P.1 System 16 - Workstation - Perforated plate S355J2+N 1200x800x12 Plasma nitrided (PLATE ONLY).
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
1 x Siegmund Perforated plate X8.7 1200x800x25 (284004.X07). Mounting screws (00005770) are not included.
Typical uses
- A System 28 fixture base on a Siegmund Workstation 1208 frame.
- A replacement or second top for the height-adjustable rotating table or the 500 kg mobile lifting table (Siegmund compatibility list).
- Heavy fixtures that use System 28 bolts, clamps, stops and squares.
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Ships across Canada by freight from 5 Industrial Rd, St. Marys, ON N4X 1G2, or pick up from our warehouse. Email sales@bthsales.ca or call +1-519-461-1381 for a freight quote and lead time.
Frequently Asked Questions
What steel is this plate made from?
Siegmund lists item 284004.X07 as tool steel X8.7. Item 284004.P is the plasma-nitrided S355J2+N steel version of the same 1200 x 800 x 25 mm plate.
What does this plate fit?
Siegmund lists it as compatible with the Workstation 1208, the height-adjustable rotating table and the 500 kg mobile lifting table.
Are mounting screws included?
No. Siegmund specifies 8x mounting screws 00005770 for a 1200 x 800 mm plate on the Workstation base frame, and they are not included with the plate or base frame.
How heavy is the plate?
Siegmund lists 180 kg (397 lb) for the 1200 x 800 x 25 mm plate, so plan to move it with suitable lifting equipment.
