Siegmund - System 16 Professional Extreme 8.7 PLUS - 3000x1500x150 Plasma nitrided
Steel Legs for Welding table top with holes
160040.X7PL: Siegmund System 16 Professional Extreme 8.7 PLUS 3000x1500 Plasma Nitrided
160040.X7PL: Siegmund System 16 Professional Extreme 8.7 PLUS 3000x1500 Plasma Nitrided
160040.X7PL: Siegmund System 16 Professional Extreme 8.7 PLUS 3000x1500 Plasma Nitrided
160040.X7PL: Siegmund System 16 Professional Extreme 8.7 PLUS 3000x1500 Plasma Nitrided
Load image into Gallery viewer, Siegmund - System 16 Professional Extreme 8.7 PLUS - 3000x1500x150 Plasma nitrided
Load image into Gallery viewer, Steel Legs for Welding table top with holes
Load image into Gallery viewer, 160040.X7PL: Siegmund System 16 Professional Extreme 8.7 PLUS 3000x1500 Plasma Nitrided
Load image into Gallery viewer, 160040.X7PL: Siegmund System 16 Professional Extreme 8.7 PLUS 3000x1500 Plasma Nitrided
Load image into Gallery viewer, 160040.X7PL: Siegmund System 16 Professional Extreme 8.7 PLUS 3000x1500 Plasma Nitrided
Load image into Gallery viewer, 160040.X7PL: Siegmund System 16 Professional Extreme 8.7 PLUS 3000x1500 Plasma Nitrided

SKU: 4-160040.X7PL + (6x) 160853.X

160040.X7PL: Siegmund System 16 Professional Extreme 8.7 PLUS 3000x1500 Plasma Nitrided

BTH Sales
$14,168.00
$14,168.00
Sale Sold out
/
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.

The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. With the Series 8.7 Plus Siegmund Welding tables, the top plate achieves a hardness of 850 Vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the welding table.


Technical Data

Item No.: 4-160040.X7PL

Length (a) 3000 mm
Width (b) 1500 mm
Height (c) 150 mm
Weight  850 kg





Welding Table Specs and Features:

  • Overall Tabletop Size: 3000x1500x150mm (118.11" x 59.05" x 5.90")
  • Borehole: Ø 16mm (0.629")
  • Welding Table Series: Professional Extreme 8.7 Plus Series
  • Welding Table Material Thickness: Approx. 11.5 – 13mm (0.45" - 0.51")
  • Welding Table Material Type and Finish: Professional Extreme 8.7
    Hardened Tool Steel, Plasma Nitrided and BAR-Coated Table
  • Surface Hardness: 450-850 Vickers
  • Official Siegmund Welding Table Part No.: 4-160040.X7PL
  • Maximum Weight Load: 13,227 lbs. / 6,000 kg. (Based on Even Distribution)
  • Approximate Table Weight: 1,873 lbs. / 850 kg.
  1. Boreholes on the Surface: 50x50mm Grid (1.96"x1.96").
  2. Boreholes have a radius of 2mm (0.078"). Radius 3mm (0.118") / 6mm
    (0.236") on table edges and corners.
  3. Height of table side 150mm (5.90") - Borehole spacing of table side
    25mm (0.98")

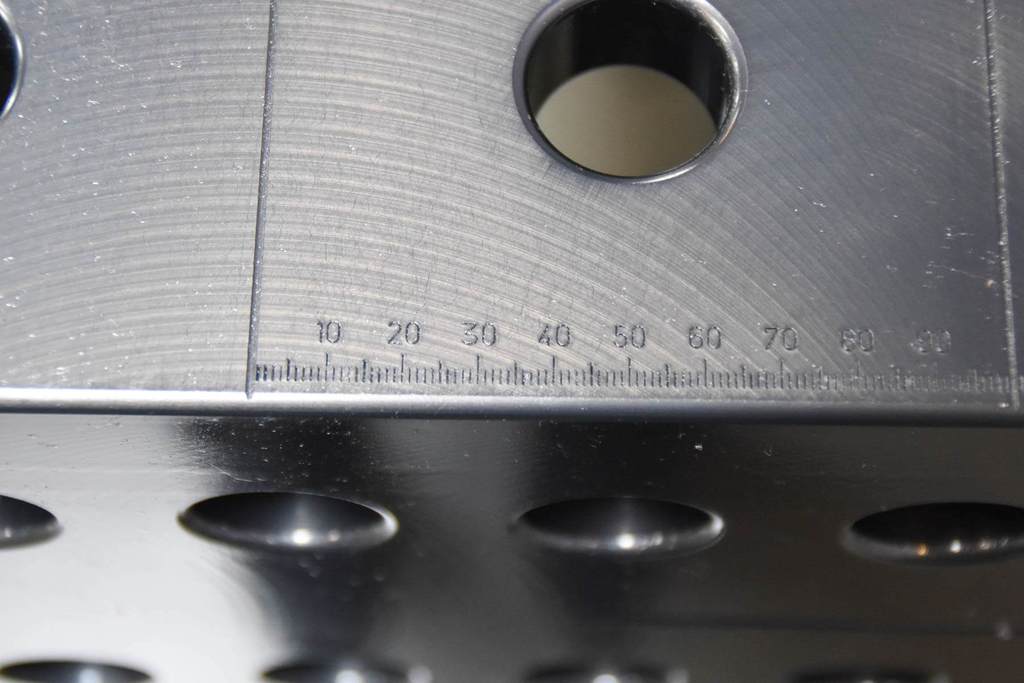

  4. Metric Scaling on the surface.
  5. Construction reinforced with ribbing.

The System 16 Welding Table Series was created with Heavy Duty Applications in Mind.

All System 16 Professional Extreme Plus tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

Available Style Variants

  • Standard 750mm Legs
  • Alternate Height Standard 850mm Legs
  • Height Adjustable 550-950mm Legs
  • Caster with locking brake 850mm Legs
  • Caster with Locking brake and Height Adjustable 600-900mm Legs
  • Floor Anchoring 750mm Legs
