The Siegmund modular laser welding cell 3680 × 3680 mm is the square mid size, with room around a 2400 × 1200 mm welding table. It measures 3740 × 3770 × 2520 mm outside and has an extra-wide double door. Order it with a closed roof (3636.LC.MR) or without roof (3636.LC.M).
With roof or without roof

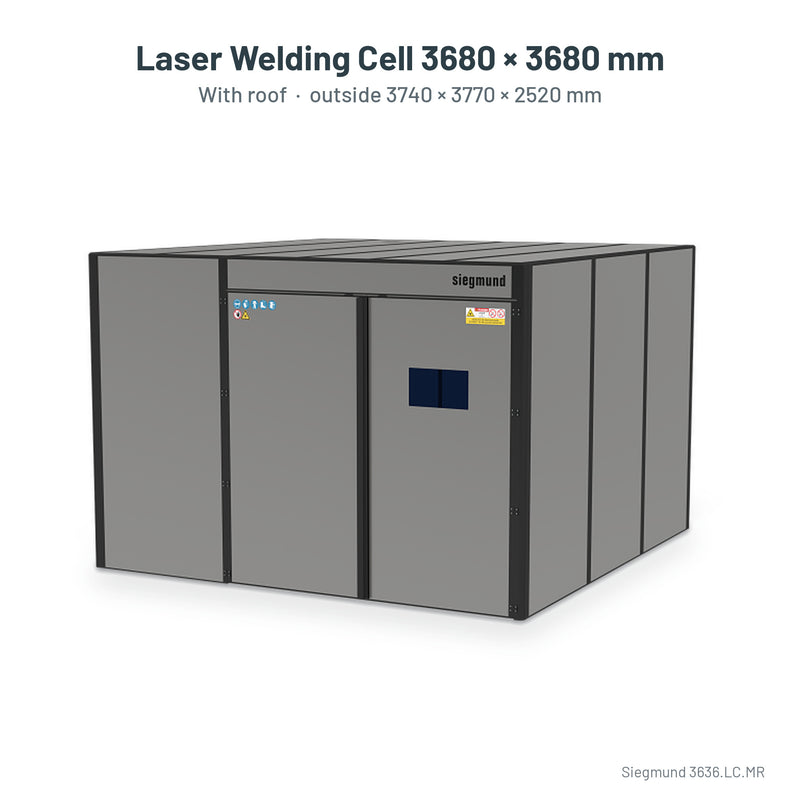

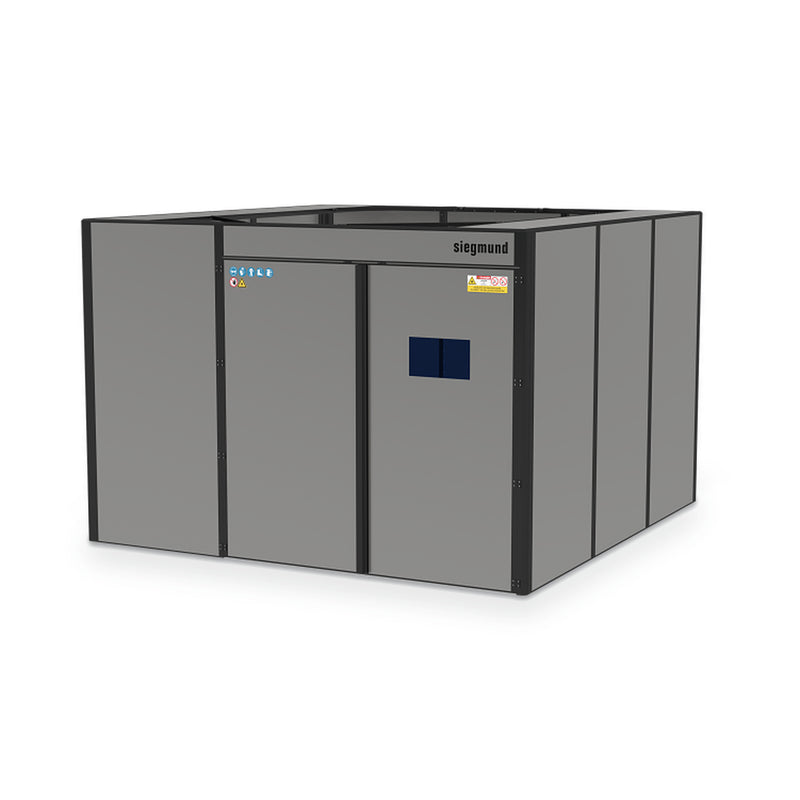

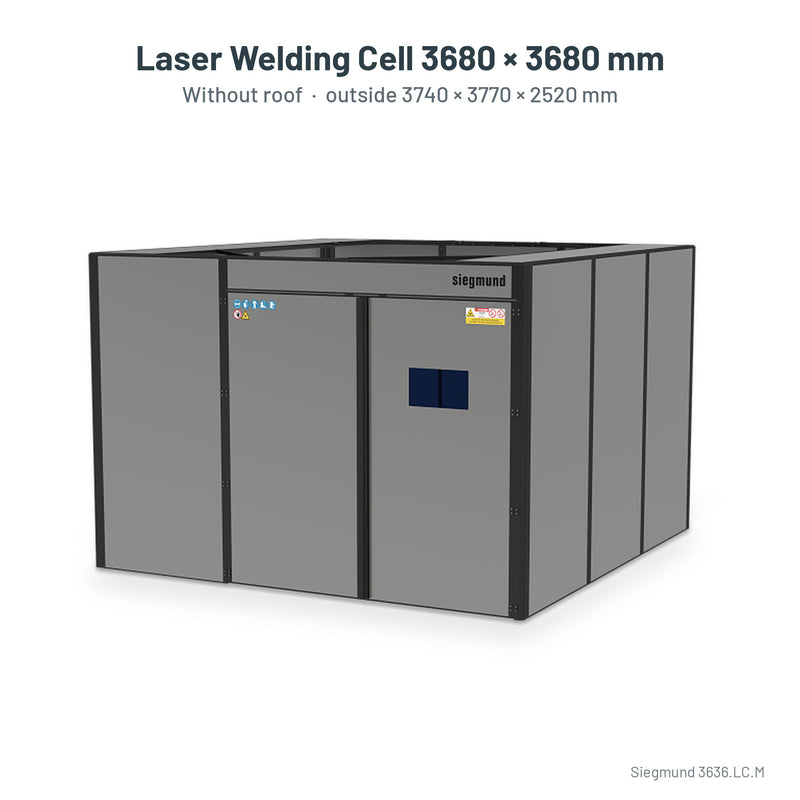

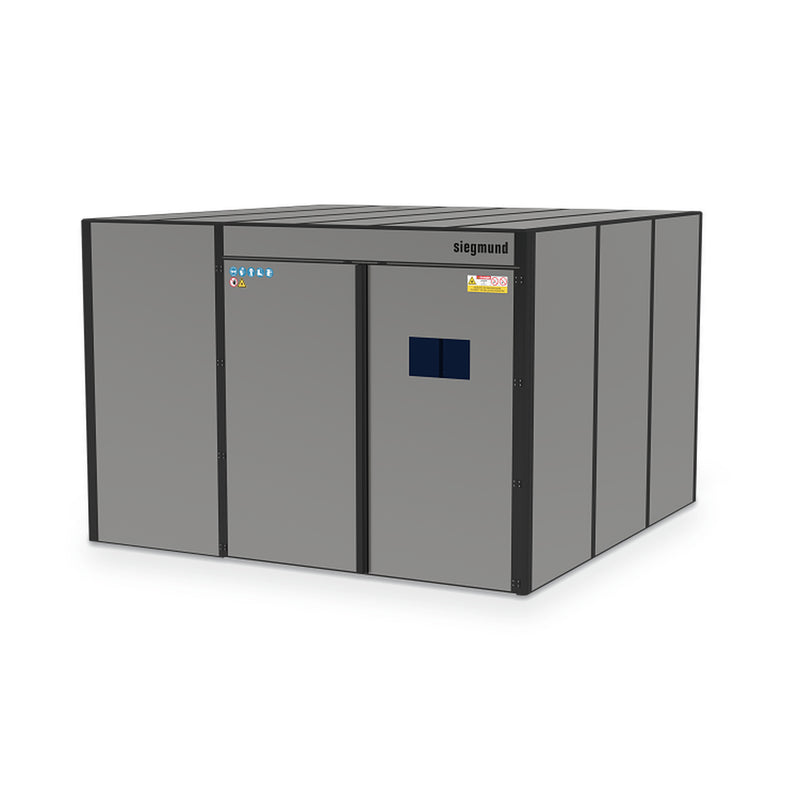

The 3636.LC.MR version has a closed roof of aluminum composite panels with a Ø 200 mm connection for welding fume extraction. The 3636.LC.M version has the same footprint, door and wall height, without the roof.
Siegmund recommends the roof. Assembly without a roof is only permitted based on an individual risk assessment that considers and eliminates hazards for surrounding persons. Upgrading is possible at any time, so you can add the roof later.
Specifications
| Siegmund item no. | 3636.LC.MR (with roof) / 3636.LC.M (without roof) |
|---|---|
| Nominal size | 3680 × 3680 mm |

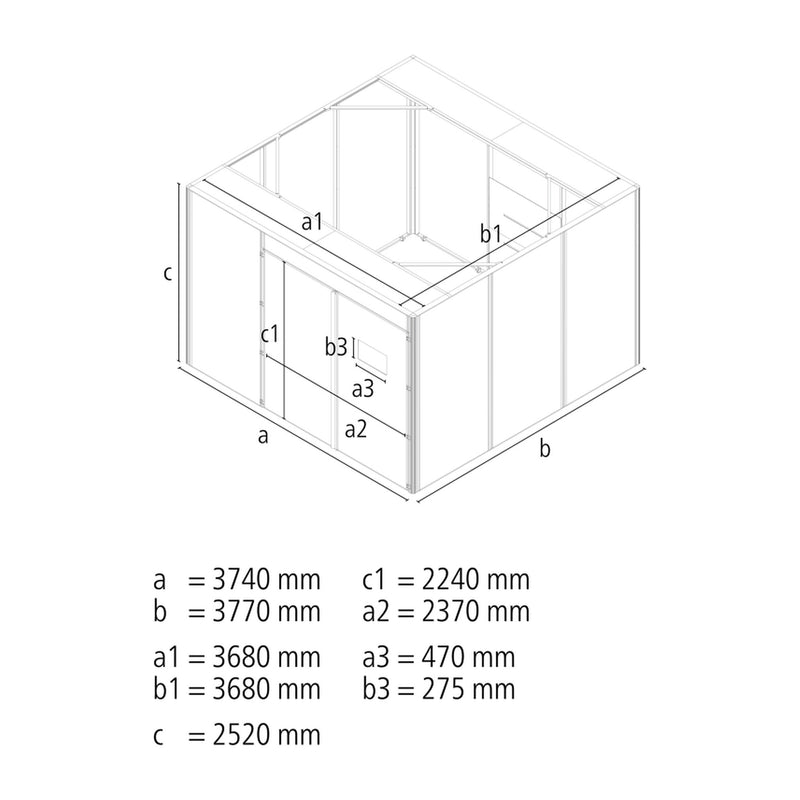

| Outside dimensions L × W × H | 3740 × 3770 × 2520 mm (length and width are external) |
| Weight | 389 kg with roof / 319 kg without roof |
| Door | Extra-wide double door, 2370 mm wide × 2240 mm high; door position can be chosen freely |
| Wall height / wall thickness | 2520 mm / 4 mm |
| Side walls | Pre-assembled aluminum composite panels (B1 certified) |
| Frame profiles | Black anodized aluminum |
| Laser protection window | 3 mm polycarbonate, certified to DIN EN 60825-4 and DIN EN 207 |
| Approved wavelength | 940–1090 nm |
| Maximum laser power | 4 kW (semi-automated: up to 2 kW) |
| Use | Manual laser welding and laser cleaning |
| Certification | CE compliant (safety component); certified to DIN EN 60825-4 |
| Ventilation | Wall with passive ventilation opening |
| Anchoring | Ground anchoring included |
| Roof (.MR only) | Closed roof of 4 mm aluminum composite panels (B1), DIN EN 60825-4, connection for welding fume extraction Ø 200 mm |
| Expansion | Expandable at any time |
| Catalogue example table | 2400 × 1200 mm welding table, with 640 mm clear at the sides and 1240 mm at the front and back |
| Price (CAD, excl. tax and freight) | $16,817 with roof / $13,808 without roof |
Layout and table fit
Siegmund's catalogue example places a 2400 × 1200 mm welding table in this cell, with 640 mm clear at the sides and 1240 mm at the front and back. For manual laser welding at 1.5 kW, Siegmund recommends a minimum distance of 600 mm between the table and the cell wall. See the Siegmund laser cell operating manual for details.

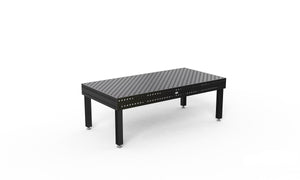

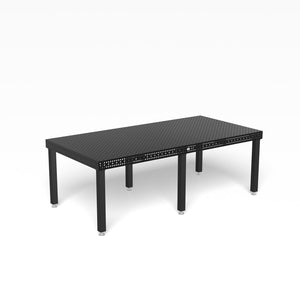

Browse Siegmund System 16 welding tables and Siegmund System 28 welding tables.
Other sizes: 2480 × 2480 mm, 3680 × 2480 mm, 4880 × 3680 mm. Compare all four on Siegmund Laser Welding Cells in Canada.
Canadian safety package
BTH Sales is building a custom safety package for these cells in Canada, for Canadian voltages and CSA requirements. The safety package is required to operate the cell and is not included in the cell price. We quote it with every cell order, and you can request a safety package quote before you buy.
Request a safety package quote
Lighting
Siegmund recommends at least two LED interior lights per cell. Add the Siegmund LED interior lighting for laser welding cells with your cell or later.
Price, freight and pickup
Prices are CAD list prices, excluding tax and freight, shipped from St. Marys, ON. Siegmund's note: plus packaging and transportation costs. Order online or request a quote. After you order, we contact you to confirm freight, the delivery estimate and your safety package before the cell ships. Ships across Canada by freight from St. Marys, ON, or pick up. Read more about shipping and delivery across Canada.
