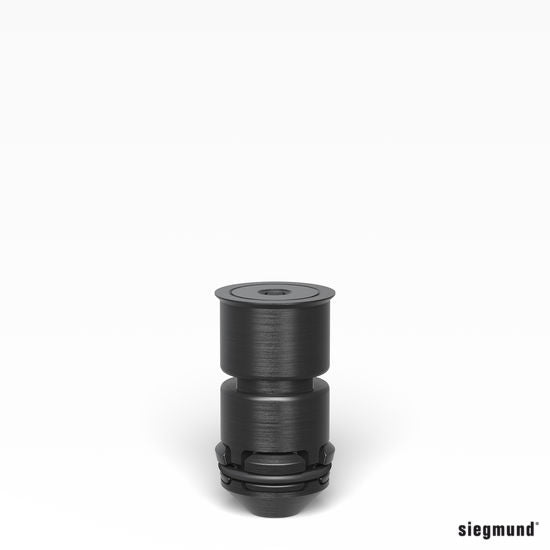

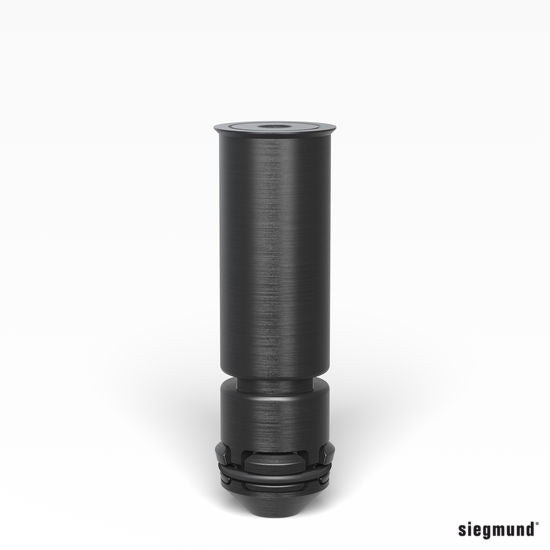

Siegmund System 16 - Areal Clamping Flush Mount Bolt

  • Sale
  • Regular price $95.00
Shipping calculated at checkout.


SIEGMUND SYSTEM 16 AREAL CLAMPING FLUSH MOUNT BOLT



The range of Siegmund System 16 Bolts are compatible with any 16mm fixture table. Made in Germany to the highest of quality assurance. You always know that with Siegmund tooling, you will never be let down.



Technical Data:

Item No.: 2-160595

Areal Clamping Flush Mount Bolt double ‐ burnished

Length (a) 33 mm
Weight 0,05 kg
Shearing Force 45 kN
Tightening Torque Steel 10 Nm
Tightening Torque Aluminum 10 Nm
Tensile Force Steel  3 kN
Tensile Force Aluminum 2 kN



Product description
‐ for clamping 2 components
‐ countersunk connection of components
‐ Clamping range approx. 22-26 mm
‐ recommended for clamping aluminum profiles
‐ not suitable for elongated holes
‐ MUST NOT be used for connecting tables and U-shaped squares
‐ with hexagon socket (Size 4)



Item No.: 2-160595.4

Areal Clamping Flush Mount Bolt quadruple ‐ burnished

Length (a) 57 mm
Weight 0,08 kg
Shearing Force 45 kN
Tightening Torque Steel 10 Nm
Tightening Torque Aluminum 10 Nm
Tensile Force Steel  3 kN
Tensile Force Aluminum 2 kN



Product description
‐ for clamping 4 components
‐ countersunk connection of components
‐ Clamping range approx. 46-50 mm
‐ recommended for clamping aluminum profiles
‐ not suitable for elongated holes
‐ MUST NOT be used for connecting tables and U-shaped squares
‐ with hexagon socket (Size 4)




Item No.: 2-160595.3

Areal Clamping Flush Mount Bolt triple ‐ burnished

Length (a) 45 mm
Weight 0,07 kg
Shearing Force 45 kN
Tightening Torque Steel 10 Nm
Tightening Torque Aluminum 10 Nm
Tensile Force Steel  3 kN
Tensile Force Aluminum 2 kN



Product description
‐ for clamping 3 components
‐ countersunk connection of components
‐ Clamping range approx. 34-38 mm
‐ recommended for clamping aluminum profiles
‐ not suitable for elongated holes
‐ MUST NOT be used for connecting tables and U-shaped squares
‐ with hexagon socket (Size 4)
