Items CS160790, CS009082, CS009083, CS009093, CS000183 and CS000184: Siegmund toggle clamps and adapter plates for System 16 welding tables. CS160790 comes with adapter CS160715.4 for 16 mm system bores; the other three clamps come without an adapter, and the CS000183 adapter plate takes their hole patterns. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Siegmund article | CS160790 (siegmund.com) | CS009082 (siegmund.com) | CS009083 (siegmund.com) | CS009093 (siegmund.com) | CS000183 (siegmund.com) | CS000184 (siegmund.com) |
|---|---|---|---|---|---|---|
| Description | Vertical clamp 1800 with Adapter | Vertical clamp 1800 | Horizontal Toggle Clamp 2500 | Horizontal Toggle Clamp 4000 | Adapter plate with hole pattern for Toggle Clamp nitrided | Adapter plate without hole pattern for Toggle Clamp nitrided |
| System | Siegmund System 16 (Ø16 mm bores, 50 mm grid) | Hole-pattern mount (no system bore) | Hole-pattern mount (no system bore) | Hole-pattern mount (no system bore) | Hole-pattern mount (no system bore) | Hole-pattern mount (no system bore) |
| Length | – | 104 mm (4.09 in) | 120 mm (4.72 in) | 180 mm (7.09 in) | 70 mm (2.76 in) | 70 mm (2.76 in) |
| Width | – | 56 mm (2.20 in) | – | – | 70 mm (2.76 in) | 70 mm (2.76 in) |
| Height | – | 190 mm (7.48 in) | – | – | – | – |
| Material thickness | – | – | – | – | 12 mm (0.47 in) | 12 mm (0.47 in) |
| Adjusting range | – | 30 mm (1.18 in) | – | – | – | – |
| Weight | 0.79 kg (1.74 lb) | 0.43 kg (0.95 lb) | 0.51 kg (1.12 lb) | 1 kg (2.20 lb) | 0.41 kg (0.90 lb) | 0.44 kg (0.97 lb) |
| Max. clamping force | 1.8 kN (≈ 405 lbf) | 1.8 kN (≈ 405 lbf) | 2.5 kN (≈ 562 lbf) | 4 kN (≈ 899 lbf) | – | – |
| Finish | – | – | – | – | Nitrided | Nitrided |

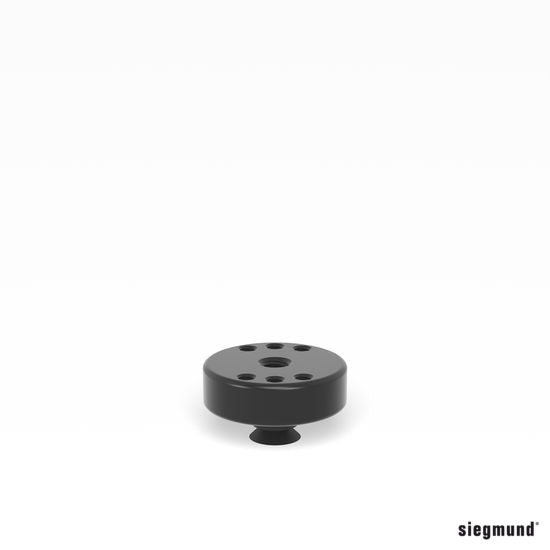

| Adapter | CS160715.4, for 16 mm system bores | Without adapter | Without adapter | Without adapter | Adapter plate | Adapter plate |
| Hole pattern | – | 40x20 mm | 40 mm | 40 mm | For toggle clamps with 40x20, 40x40 or 40 mm patterns | None; a drilling pattern can be added by the customer |
| Opening angle | – | 110° | – | – | – | – |
| Fastening | – | – | – | – | Countersunk bolts 160528 | Countersunk bolts 160528 |
| GTIN | 4251805908756 | 4251805907742 | 4251805925111 | 4251805925142 | 4251805903706 | 4251805903713 |
Related products & accessories
-
Siegmund System 16 & 28 - Anti-Splatter
From $38.00
-
Siegmund System 16 & 28 - Clean Basic
From $32.00
-
Siegmund System 16 & 28 - Ground Connection Comfort
$104.00
-
Siegmund System 28 - Fast Clamping Equipment
From $75.00
-
Siegmund System 16 - Flush Mount Bolt
From $68.00
-
Siegmund Robotic Toggle Starter Set – System 16 (31 pcs)
$3,350.00
Compatibility
- Fits: Siegmund System 16 welding tables and tooling with Ø16 mm bores on a 50 mm grid. Siegmund System 16 accessories also fit other 16 mm system welding tables with Ø16 mm bores on a 50 mm grid. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
- Not compatible: System 28 (Ø28 mm) tables; Siegmund builds each system around one bore size.
- Works with: other Siegmund System 16 clamps, bolts, stops, squares and U-squares on the same table.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
Choose one option; each option is one piece:

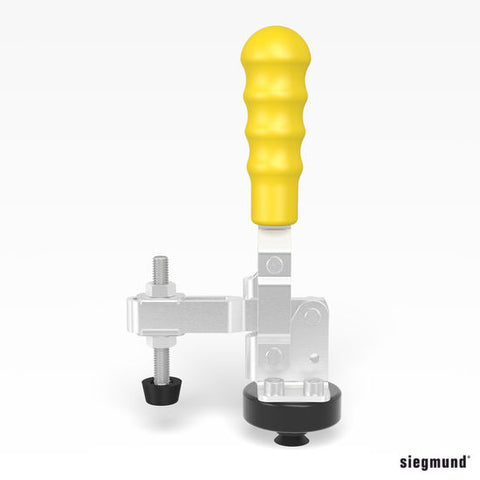

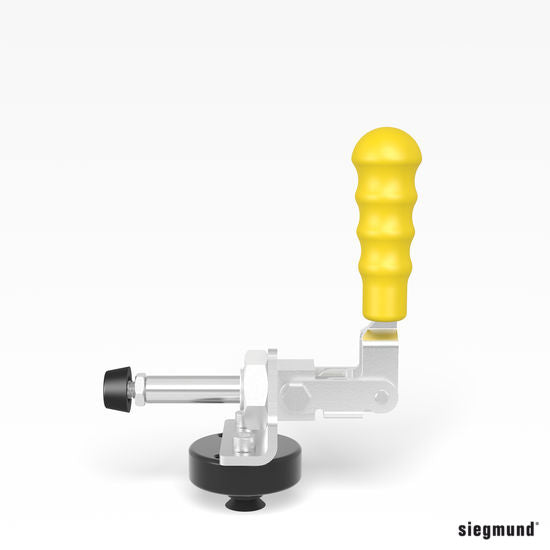

- 1 x Siegmund Vertical clamp 1800 with Adapter (CS160790)

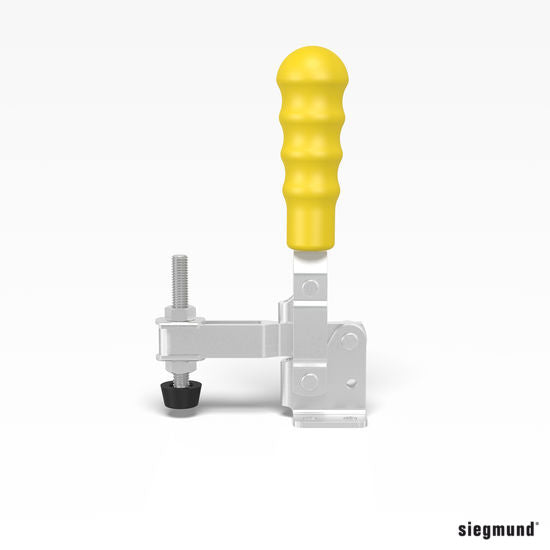

- 1 x Siegmund Vertical clamp 1800 (CS009082)
- 1 x Siegmund Horizontal Toggle Clamp 2500 (CS009083)
- 1 x Siegmund Horizontal Toggle Clamp 4000 (CS009093)
- 1 x Siegmund Adapter plate with hole pattern for Toggle Clamp nitrided (CS000183)
- 1 x Siegmund Adapter plate without hole pattern for Toggle Clamp nitrided (CS000184)
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. BTH Sales does not sell cobots; for cobot cells we help with table integration and fixturing (see cobot welding with Siegmund tables). Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Typical uses
- Fast toggle clamping straight from a 16 mm system bore with CS160790 and its adapter CS160715.4 (Siegmund).
- Free positioning of quick-change clamps with the CS000183 adapter plate (Siegmund).
- Fitting quick-change clamps from other manufacturers to the CS000184 blank plate, which takes a drilling pattern you add (Siegmund).
- Siegmund recommends System 16 for light to medium-duty work and precision fixtures; its close 50 mm grid lets small components be fixed with high precision.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Frequently Asked Questions
Which toggle clamp mounts straight into the table bores?
Siegmund lists the Vertical Clamp 1800 with Adapter (CS160790) with adapter CS160715.4 for 16 mm system bores, rated at 1.8 kN maximum clamping force. Siegmund lists CS009082, CS009083 and CS009093 without an adapter.
How do I mount the clamps without an adapter?
Siegmund's adapter plate with hole pattern (CS000183, 70 x 70 x 12 mm) takes toggle clamps with 40x20 mm, 40x40 mm or 40 mm hole patterns and is fastened with countersunk bolts 160528. Siegmund lists CS009082 with a 40x20 mm hole pattern, and CS009083 and CS009093 with a 40 mm hole pattern.
Which horizontal clamp do I need?

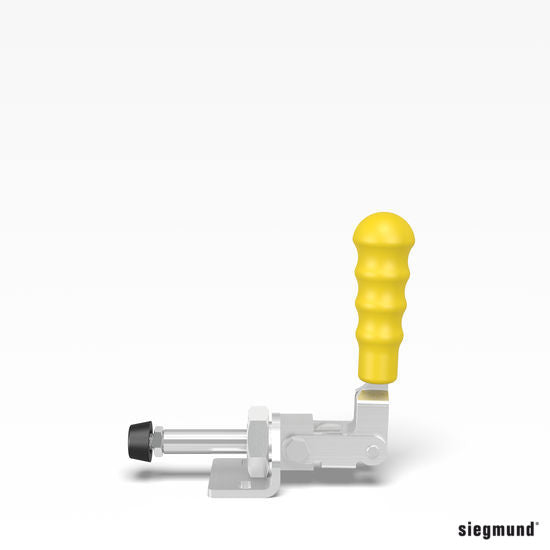

Siegmund lists the Horizontal Toggle Clamp 2500 (CS009083) at 2.5 kN, 120 mm long and 0.51 kg, and the Horizontal Toggle Clamp 4000 (CS009093) at 4 kN, 180 mm long and 1 kg. Both come without an adapter.
Will it fit other 16 mm welding tables?
Yes, if the table has Ø16 mm bores on a 50 mm grid. Check the bore diameter and grid before ordering. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
