Horizontal bars and a horizontal round pipe for Siegmund System 16 clamps. Each part is made for a specific clamp: 160637 for 160606, 160643 for 160610 and 160601, and the round pipe 160678 for 160604. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Item no. | 160637 (siegmund.com) | 160643 (siegmund.com) | 160678 (siegmund.com) |
|---|---|---|---|
| Siegmund name | Horizontal Bar with Fast Clamping Function 100 | Horizontal Bar 150 | Horizontal Round Pipe 150 |
| System | Siegmund System 16 (Ø16 mm bores, 50 mm grid) | ||
| Length | 100 mm (3.94 in) | 150 mm (5.91 in) | 150 mm (5.91 in) |
| Width | 20 mm (0.79 in) | 20 mm (0.79 in) | – |
| Material thickness | 10 mm (0.39 in) | 10 mm (0.39 in) | – |
| Diameter | – | – | 16 mm (0.63 in) |
| Weight | 0.25 kg (0.55 lb) | 0.23 kg (0.51 lb) | 0.25 kg (0.55 lb) |

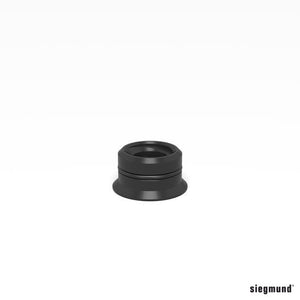

- 160643 is supplied without the bushing 160618.1 and 160678 without the arbor thread 160679; Siegmund says to order these separately.
Works with this product
-
Siegmund System 16 - Professional Fast Tension Clamp
$187.00
-
Siegmund System 16 - Professional Screw Clamp
$137.00
-
Siegmund System 16 - Screw Clamp with Round Pipe
$137.00
-
Siegmund System 16 - Pipe Clamp Universal
$140.00
-
Siegmund System 16 - Thread Bushing
From $14.00
-
Siegmund System 16 - Clamp Spare Parts
From $5.00
-
Siegmund System 16 & 28 - Anti-Splatter
From $38.00
-
Siegmund System 16 & 28 - Clean Basic
From $32.00
Compatibility
- Fits: Siegmund System 16 welding tables and tooling with Ø16 mm bores.
- Not compatible: System 28 (Ø28 mm) tables; Siegmund builds each system around one bore size.
- Related products: 160606 Siegmund System 16 - Professional Fast Tension Clamp, 160610 Siegmund System 16 - Professional Screw Clamp, 160601 Siegmund System 16 - Screw Clamp With Round Pipe, 160604 Siegmund System 16 - Pipe Clamp Universal, 160618.1 Siegmund System 16 - Thread Bushing, 160679 Siegmund System 16 - Clamp Spare Parts.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
Choose one option; each option is one piece:
- 1 x Siegmund Horizontal Bar with Fast Clamping Function 100 (160637)
- 1 x Siegmund Horizontal Bar 150 (160643)
- 1 x Siegmund Horizontal Round Pipe 150 (160678)
Typical uses
- Replacing a horizontal bar on a System 16 clamp
- Changing the reach of a clamp
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Ships across Canada by freight from 5 Industrial Rd, St. Marys, ON N4X 1G2, or pick up from our warehouse. Email sales@bthsales.ca or call +1-519-461-1381 for a freight quote and delivery estimate.
Frequently Asked Questions
Which horizontal bar fits my clamp?

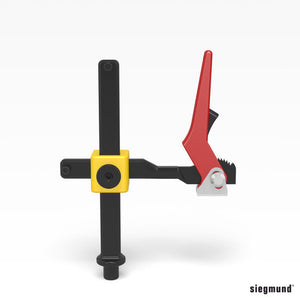

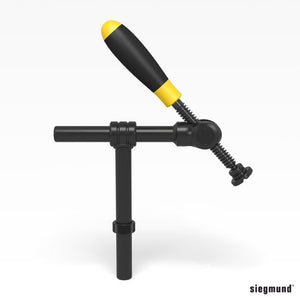

Per Siegmund: 160637 (with fast clamping function, 100 mm) fits 160606, 160643 (150 mm) fits 160610 and 160601, and the round pipe 160678 (150 mm) fits 160604.
Is the bushing or arbor thread included?
No. 160643 comes without the bushing 160618.1 and 160678 comes without the arbor thread 160679. Please order them separately.
