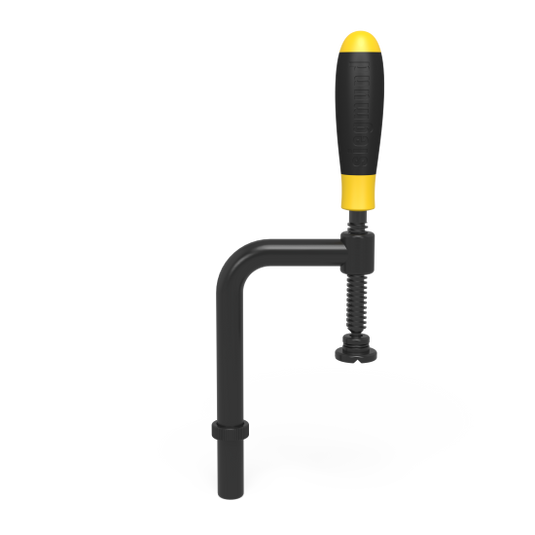

Item 2-160626.N (160626.N): Siegmund Pipe Elbow Clamp, nitrided, for System 16 welding tables. A compact screw clamp with a bent round-pipe arm, 1.5 kN maximum clamping force and an interchangeable prism. Siegmund describes it as a compact design with minimal interference contour and a cost-effective alternative to conventional clamps.
Shipping: Ships across Canada from St. Marys, Ontario; most orders ship within 48 hours.
Specifications
| Item no. | 2-160626.N |
|---|---|
| System | Siegmund System 16 (Ø 16 mm bores) |
| Width (B) | 100 mm (3.94 in) |
| Height (H) | 285 mm (11.22 in) |
| Weight | 0.50 kg (1.10 lb) |
| Max. clamping force | 1.5 kN (≈ 337 lbf) |
| Spindle | Ball diameter 8 mm (0.31 in), trapezoid thread 12 × 3 mm |
| Prism | Interchangeable |
| Fastening | Adjusting ring |
| Finish | Nitrided |
Compatibility
- Fits: Siegmund System 16 welding tables and System 16 tooling with Ø 16 mm bores. Also fits other 16 mm tables with Ø16 mm bores on a 50 mm grid.
- Not compatible: System 28 tables (Ø 28 mm bores) or System 22 tables.
- Works with: other Siegmund System 16 clamps, stops and squares on the same table.
What's included
- Single: 1 × Siegmund Pipe Elbow Clamp, nitrided (2-160626.N)
- 6-pack: 6 × Siegmund Pipe Elbow Clamp, nitrided (SKU 2-160626.N.6), 5% off the single price
Typical uses
- Clamping workpieces to a System 16 table where space around the part is tight; Siegmund highlights the compact design with minimal interference contour.
- Everyday screw clamping as a cost-effective alternative to conventional clamps (Siegmund).
- Siegmund positions System 16 for fine details, for example railings and frame constructions.
Industries served: Siegmund's published practical examples show its welding tables and tooling in agriculture, interior fit-out, lighting and electrical engineering, machine tools and plant construction, measurement and testing technology, motorcycle engineering, revolving door systems, robotic technology, stage technology, stainless steel processing, steel, sheet metal and metal construction, textile production, train construction, vehicle construction, welding technology and woodworking.
Frequently Asked Questions
What is the Siegmund item number for the System 16 Pipe Elbow Clamp?
2-160626.N (160626.N). It is the nitrided pipe elbow clamp for Siegmund System 16 tables.
How much clamping force does the 2-160626.N have?
Siegmund rates the 2-160626.N at a maximum clamping force of 1.5 kN (≈ 337 lbf).
Will it fit other 16 mm welding tables?
Yes, if the table has Ø 16 mm bores on a 50 mm grid. Check the bore diameter before ordering.
Is the 2-160626.N available as a 6-pack?
Yes. Choose Pack size: 6-pack (SKU 2-160626.N.6) for six clamps at 5% off the single price: $370.50 CAD instead of $390.00.
Do you ship the 2-160626.N across Canada?
Yes. It ships across Canada from St. Marys, Ontario, and most orders ship within 48 hours.
