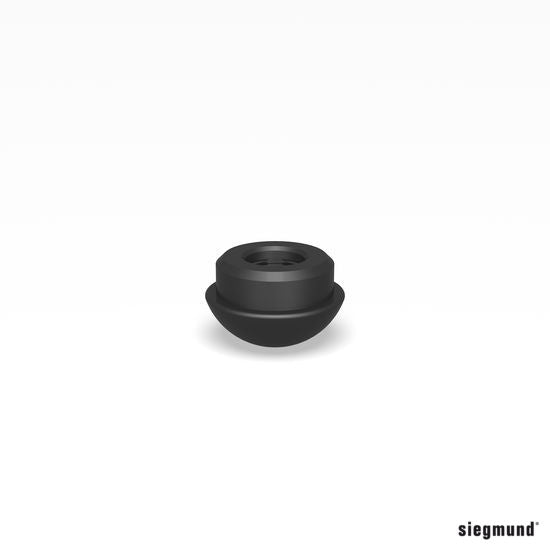

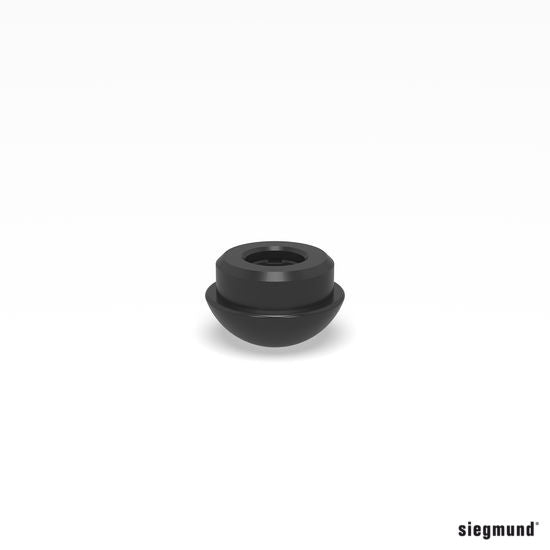

Items 160660, 160660.E, 160660.PA and 160661: Siegmund Pressure Ball for Screw Clamps, System 16, in burnished steel, stainless steel or polyamide, plus a burnished blank to finish to your own spec. Designed for clamping in corners or grooves, it sits on the ball head of the threaded arbor and pulls off for a quick change. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Siegmund article | 160660 (siegmund.com) | 160660.E (siegmund.com) | 160660.PA (siegmund.com) | 160661 (siegmund.com) |
|---|---|---|---|---|
| Description | Pressure Ball for Screw Clamps burnished | Pressure Ball for Screw Clamps Stainless Steel | Pressure Ball for Screw Clamps Polyamide | Pressure Ball Blank for Screw Clamps burnished |
| System | Siegmund System 16 (Ø16 mm bores, 50 mm grid) | |||
| Height | 13 mm (0.51 in) | 13 mm (0.51 in) | 13 mm (0.51 in) | 25 mm (0.98 in) |
| Diameter | 20 mm (0.79 in) | 20 mm (0.79 in) | 20 mm (0.79 in) | 25 mm (0.98 in) |
| Weight | 0.02 kg (0.04 lb) | 0.02 kg (0.04 lb) | 0.01 kg (0.02 lb) | 0.07 kg (0.15 lb) |
| Finish | Burnished | – | – | Burnished |
| Fits | Spindles with 8 mm ball diameter (clamps only) | |||
| GTIN | 4251805904932 | 4251805905496 | 4251805905502 | 4251805904949 |
Compatibility
- Fits: Siegmund System 16 welding tables and tooling with Ø16 mm bores on a 50 mm grid. It fits System 16 screw clamps with an 8 mm ball spindle, including clamps used on other 16 mm system welding tables with Ø16 mm bores. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
- Not compatible: System 28 (Ø28 mm) tables; Siegmund builds each system around one bore size.
- Works with: other Siegmund System 16 clamps, bolts, stops, squares and U-squares on the same table.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
Choose one option; each option is one piece:
- 1 x Siegmund Pressure Ball for Screw Clamps burnished (160660)

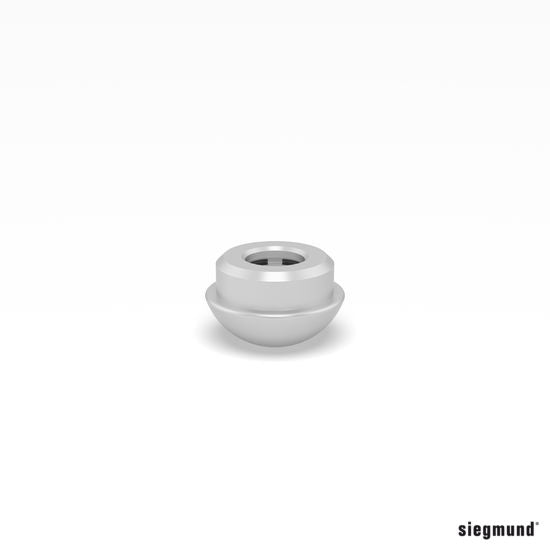

- 1 x Siegmund Pressure Ball for Screw Clamps Stainless Steel (160660.E)
- 1 x Siegmund Pressure Ball for Screw Clamps Polyamide (160660.PA)
- 1 x Siegmund Pressure Ball Blank for Screw Clamps burnished (160661)
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. BTH Sales does not sell cobots; for cobot cells we help with table integration and fixturing (see cobot welding with Siegmund tables). Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Typical uses
- Clamping in corners or grooves (Siegmund).
- Polyamide pressure ball for scratch-prone surfaces; stainless steel for scratch-resistant metals to prevent rust (Siegmund).

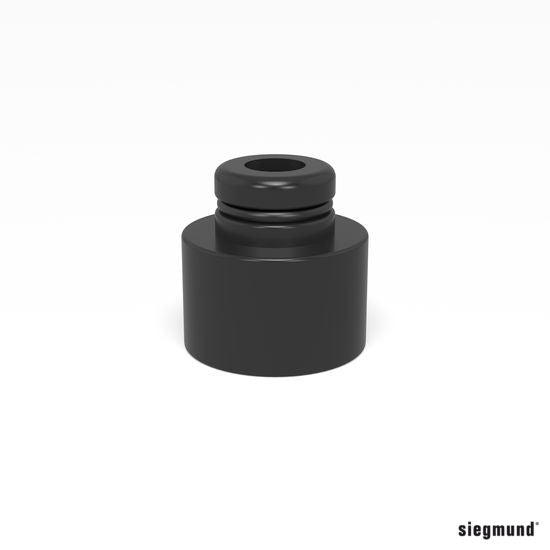

- Blank 160661: machined to customer specification (Siegmund).
- Siegmund recommends System 16 for light to medium-duty work and precision fixtures; its close 50 mm grid lets small components be fixed with high precision.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Frequently Asked Questions
Which pressure ball material should I choose?
Siegmund offers burnished steel (160660), stainless steel (160660.E) for scratch-resistant metals to prevent rust, and polyamide (160660.PA) for scratch-prone surfaces. The burnished blank (160661) is made to the customer's own specification.
When should I use a pressure ball instead of a prism?
Siegmund designed the pressure ball especially for clamping in corners or grooves; the prism is for clamping round and square pipes. Both fit spindles with an 8 mm ball head.
Will it fit screw clamps used on other 16 mm welding tables?
Yes, if the clamp has a spindle with an 8 mm ball head. Check the ball diameter before ordering. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
Related parts
- System 16 Prism for Screw Clamps (160656)
- System 16 Professional Screw Clamp (160610)
- System 16 threaded arbors
- Siegmund System 16 welding table clamps
- All Siegmund System 16 clamp replacement parts
