SIEGMUND SYSTEM 16 - SUB TABLE BOXES WITH DRAWERS FOR PLUS
The Siegmund System 16 Sub Table Boxes are compatible with any 16mm fixture table. Made in Germany to the highest of quality assurance. You always know that with Siegmund tooling, you will never be let down.
Technical Data:
|
Item No.: 161990
Sub Table Box for Basic
| Length (a) |
630 mm |
| Width (b) |
485 mm |
| Height (c) |
430 mm |
| Weight |
28,5 kg |
| Load capacity |
100 kg |
Product description
The Siegmund ST Box enables the creation and storage of tools for easy access when required.
The ST Box has a total maximum load capacity of approx. 100 kg. Each drawer carries a maximum load of approx. 50 kg.
The design is totally enclosed to protect the contents from weld spatters and dirt.
Self assembly instructions are provided and you can easily attach the assembled ST Box to your welding table.
‐ powder coated finish
‐ 360 mm space for drawers
‐ lockable
‐ incl. two keys
Item No.: 161990.2
Set Sub Table Box for Basic incl. 3 drawers
| Length (a) |
630 mm |
| Width (b) |
485 mm |
| Height (c) |
430 mm |
| Weight |
47,5 kg |
| Load capacity |
100 kg |
Product description
The Siegmund ST Box enables the creation and storage of tools for easy access when required.
The ST Box has a total maximum load capacity of approx. 100 kg. Each drawer carries a maximum load of approx. 50 kg.
The design is totally enclosed to protect the contents from weld spatters and dirt.
Will be delivered pre-assembled.
‐ incl. drawers (1x 004220, 1x 004225, 1x 004230)
‐ powder coated finish
‐ lockable
‐ incl. two keys
‐ drawer pull-out length 500 mm
|
Item No.: 161990.1
Set Sub Table Box for Basic incl. 2 drawers
| Length (a) |
630 mm |
| Width (b) |
485 mm |
| Height (c) |
430 mm |
| Weight |
42,5 kg |
| Load capacity |
100 kg |
Product description
The Siegmund ST Box enables the creation and storage of tools for easy access when required.
The ST Box has a total maximum load capacity of approx. 100 kg. Each drawer carries a maximum load of approx. 50 kg.
The design is totally enclosed to protect the contents from weld spatters and dirt.
Will be delivered pre-assembled.
‐ incl. drawers (2x 004230)
‐ powder coated finish
‐ lockable
‐ incl. two keys
‐ drawer pull-out length 500 mm
|
Compatibility
-

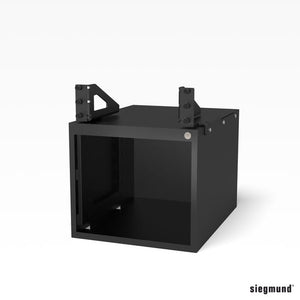

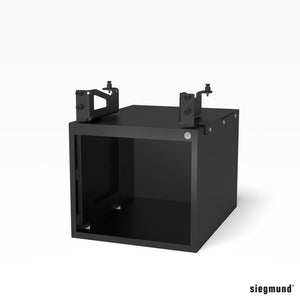

Siegmund System 16: Siegmund's "Sub Table Box lockable for Basic" (161990), for System 16 Basic tables (BTH lists no Basic table); other System 16 tables take the 160990 box or the 162990 PLUS box.
Related: System 16 Sub Table Boxes with Drawers · System 16 Sub Table Boxes with Drawers for PLUS · All System 16 sub table boxes
Frequently Asked Questions
Which tables is the Basic version for?
161990 is the System 16 ST Box version for Basic tables. Siegmund says Basic tables need a special mounting.
How much weight do the drawers hold?
Siegmund lists a total maximum load capacity of approx. 100 kg for the ST Box, with each drawer carrying approx. 50 kg.
Is it lockable?
Yes. Siegmund lists the ST Box as lockable, including two keys, with a powder-coated finish and a totally enclosed design that protects the contents from weld spatter and dirt.
