Item 280715: the Siegmund Adapter with Hole Pattern is a burnished Ø 50 mm adapter that mounts a toggle clamp in any 28 mm bore for System 28 welding tables. Sold in Canada by BTH Sales, exclusive Canadian importer of Siegmund; ships from St. Marys, Ontario.
It accepts toggle clamps with a 32x19 mm or 37 mm hole pattern, and its integrated O-ring gives a tight fit in the bore.
Specifications
| Item no. | Siegmund name | Height | Material thickness | Weight | Diameter |
|---|---|---|---|---|---|

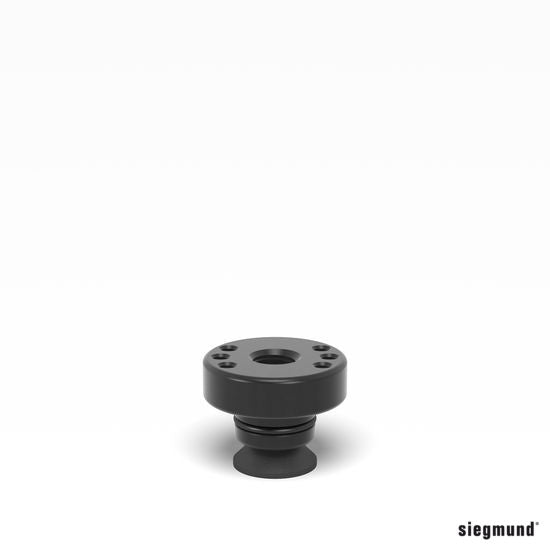

| 280715 | Adapter with Hole Pattern Ø 50 / 15 burnished | 29.5 mm (1.16 in) | 14.5 mm (0.57 in) | 0.29 kg (0.64 lb) | 50 mm (1.97 in) |

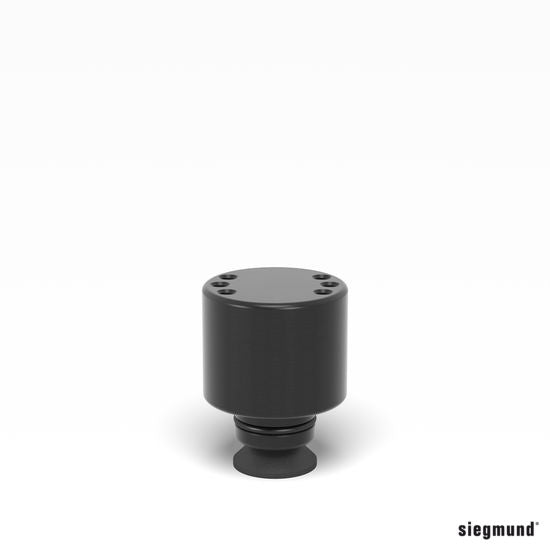

| 280715.1 | Adapter with Hole Pattern Ø 50 / 40 burnished | 55 mm (2.17 in) | 40 mm (1.57 in) | 0.56 kg (1.23 lb) | 50 mm (1.97 in) |
Compatibility
- Fits: Siegmund System 28 tables and tools; Siegmund says it can be used universally with 28 mm boreholes. Also fits other 28 mm system welding tables with Ø 28 mm bores on a 100 mm grid.
- Not compatible with: System 16 (Ø 16 mm bores) tables and tools.
- Works with: Vertical Toggle Clamp with Adapter CS280791, Horizontal Toggle Clamp with Adapter CS280793, Vertical Toggle Clamp 009082, Horizontal Toggle Clamp 009083.
- Also matches (Kifix): the Kifix KF-017 DB and Kifix KF-211 DB vertical toggle clamps (flanged base) have a 32 × 19 mm base hole pattern, which matches this adapter's hole pattern, so they mount on Siegmund System 28 welding tables with 280715 or 280715.1.
What's included
1 × adapter in the selected height (burnished, with integrated O-ring). Toggle clamp and screws are not included.
Typical uses
- Mounting a vertical or horizontal toggle clamp at any bore position on the table
- Raising a toggle clamp to the workpiece with the taller 280715.1 (Ø 50 / 40) version
- Repeatable fixtures that can be removed and re-set in seconds
- Light to heavy workpieces: Siegmund describes System 28 as ideal for light to heavy components and designed for maximum clamping forces, multi-ton structures and high distortion forces
Industries served: Siegmund's published practical examples show its welding tables and tooling in agriculture, interior fit-out, lighting and electrical engineering, machine tools and plant construction, measurement and testing technology, motorcycle engineering, revolving door systems, robotic technology, stage technology, stainless steel processing, steel, sheet metal and metal construction, textile production, train construction, vehicle construction, welding technology and woodworking.
FAQ
Which toggle clamps fit the 280715 adapter?
Toggle clamps with a 32x19 mm or 37 mm hole pattern, per Siegmund.
Which height should I choose?
Pick the height that brings the clamp to your workpiece. Siegmund lists 280715 at 29.5 mm high and 280715.1 at 55 mm high.
Does the adapter come with a clamp?
No. It is the adapter only; toggle clamps are sold separately.
Will it fit a System 16 table?
No. It is made for 28 mm bores. Siegmund makes a separate System 16 version (item 160715) for Ø 16 mm bores. The 160715 adapter is available on request; contact sales@bthsales.ca.
Will it fit other 28 mm welding tables?
Yes, if the table has Ø 28 mm bores. Siegmund System 28 tables have Ø 28 mm bores on a 100 × 100 mm (or diagonal) grid and a material thickness of about 24.5–27 mm, so check your table's bore diameter and plate thickness before ordering. Ask us if you are unsure.
