Siegmund System 28 - Areal Clamping Flush Mount Bolt

  • Sale
  • Regular price $103.00
Shipping calculated at checkout.


SIEGMUND SYSTEM 28 - AREAL CLAMPING FLUSH MOUNT BOLT



Siegmund offers a wide range of Bolts for System 28, 28mm fixture tables. Manufactured in Germany, Siegmund's Bolts are made with the highest quality standards on the market. Choose Siegmund and take on any job with confidence.



Technical Data:

Item No.: 2-280595

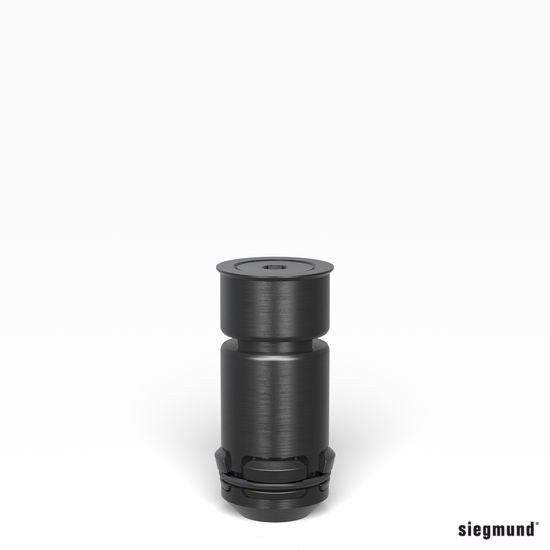

Areal Clamping Flush Mount Bolt double ‐ burnished

Length (a) 65 mm
Weight 0,29 kg
Shearing Force 200 kN
Tightening Torque Steel 50 Nm
Tightening Torque Aluminum 20 Nm
Tensile Force Steel  10 kN
Tensile Force Aluminum 6 kN



Product description
‐ for clamping 2 components
‐ countersunk connection of components
‐ Clamping range approx. 47-53 mm
‐ recommended for clamping aluminum profiles
‐ not suitable for elongated holes
‐ MUST NOT be used for connecting tables and U-shaped squares
‐ with hexagon socket (Size 6)



Item No.: 2-280595.4

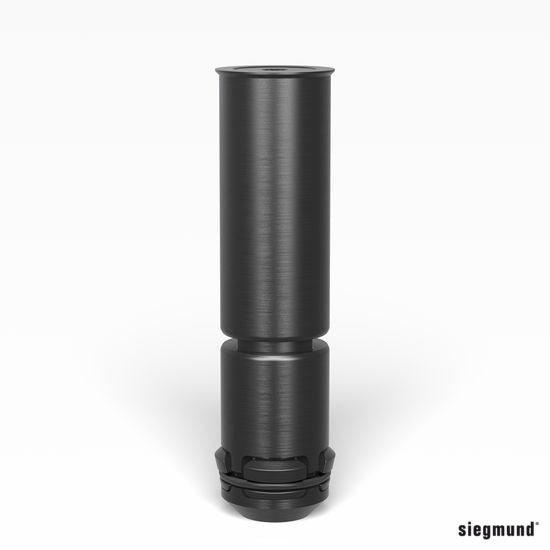

Areal Clamping Flush Mount Bolt quadruple ‐ burnished

Length (a) 115 mm
Weight 0,52 kg
Shearing Force 200 kN
Tightening Torque Steel 50 Nm
Tightening Torque Aluminum 20 Nm
Tensile Force Steel  10 kN
Tensile Force Aluminum 6 kN



Product description
‐ for clamping 4 components
‐ countersunk connection of components
‐ Clamping range approx. 97-103 mm
‐ recommended for clamping aluminum profiles
‐ not suitable for elongated holes
‐ MUST NOT be used for connecting tables and U-shaped squares
‐ with hexagon socket (Size 6)




Item No.: 2-280595.3

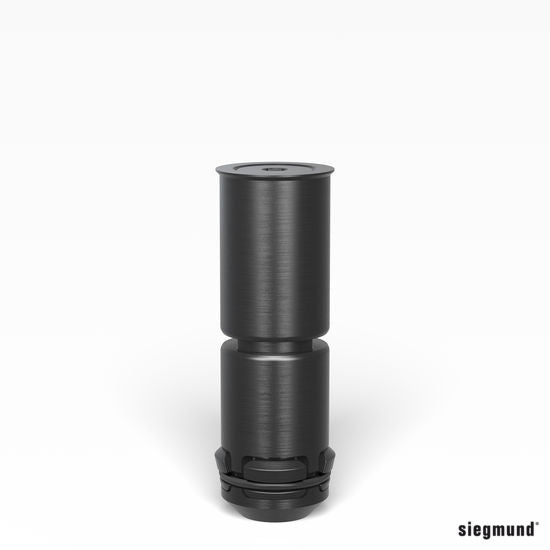

Areal Clamping Flush Mount Bolt triple ‐ burnished

Length (a) 90 mm
Weight 0,41 kg
Shearing Force 200 kN
Tightening Torque Steel 50 Nm
Tightening Torque Aluminum 20 Nm
Tensile Force Steel  10 kN
Tensile Force Aluminum 6 kN



Product description
‐ for clamping 3 components
‐ countersunk connection of components
‐ Clamping range approx. 72-78 mm
‐ recommended for clamping aluminum profiles
‐ not suitable for elongated holes
‐ MUST NOT be used for connecting tables and U-shaped squares
‐ with hexagon socket (Size 6)
