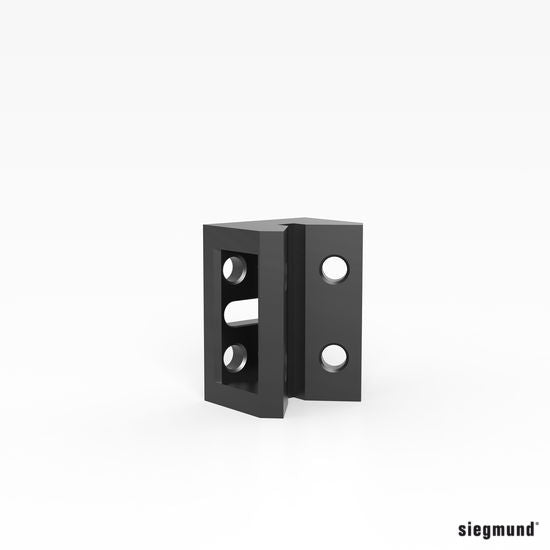

Siegmund System 28 Corner Connection 280190.N, product view

Siegmund System 28 - Corner Connection

SKU: 2-280190.N

Siegmund

$482.00 CAD

Sale Sold out

Shipping calculated at checkout.

Quantity must be 1 or more

SIEGMUND SYSTEM 28 - CORNER CONNECTION

Siegmund System 28 Squares can be used with any 28mm fixture table. Manufactured in Germany, Siegmund's System 28 Squares are made with the highest quality standards on the market! Choose Siegmund and take on any job with confidence.

Technical Data:

Item No.: 280190.N

Corner Connection small, Cast Iron ‐ nitrided

Length (a)	200 mm
Width (b)	150 mm
Height (c)	120 mm
Weight	11,8 kg

Product description
Standard Corner Connection, provides more workspace by giving the option to extend the table diagonally at a 45° angle. The Corner Connection can be securely fastened and works as a prism, stop or connecting piece. It is compatible with all other squares. The Corner Connection is extremely sturdy and provides connecting-, stop- and clamping options on 5 sides (Item No. 280191.N).

This component is manufactured of high quality GGG40 ductile cast iron.

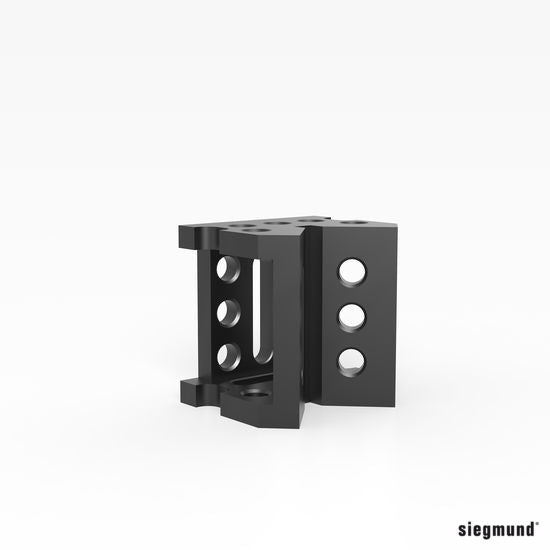

Item No.: 280191.N

Corner Connection, Cast Iron ‐ nitrided

Length (a)	200 mm
Width (b)	200 mm
Height (c)	170 mm
Weight	15,7 kg

Compatibility

Siegmund System 28: fits every System 28 Siegmund table, including the Professional Extreme 8.7 and 8.8 PLUS tables listed on bthsales.ca; on a System 16 table it needs Siegmund's Reduction Bushing 28->16 (000546, suits boreholes and elongated holes) with System 16 bolts, or the Combination Fast Clamping Bolt 28->16 (000520); neither is listed on bthsales.ca.

Frequently Asked Questions

What does the Corner Connection do?

Siegmund says it extends the table diagonally at 45° for more workspace, and can be fastened securely to work as a prism, stop or connecting piece. It is compatible with all other squares.

What is the difference between 280190.N and 280191.N?

280190.N is the small version at 200 x 150 x 120 mm and 11.8 kg. 280191.N is 200 x 200 x 170 mm and 15.7 kg and gives connecting, stop and clamping options on 5 sides.
