Siegmund System 28 - Fast Clamping Bolt Flat Without Slot

  • Sale
  • Regular price $113.00
Shipping calculated at checkout.


SIEGMUND SYSTEM 28 - FAST CLAMPING BOLT FLAT WITHOUT SLOT



Siegmund offers a wide range of Bolts for System 28, 28mm fixture tables. Manufactured in Germany, Siegmund's Bolts are made with the highest quality standards on the market. Choose Siegmund and take on any job with confidence.



Technical Data:

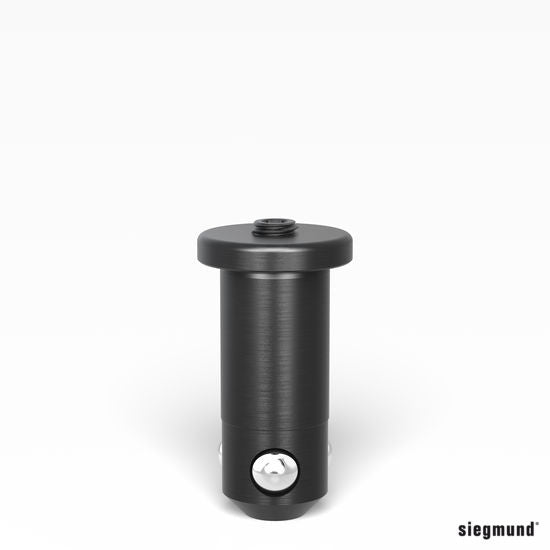

Item No.: 2-280524

Fast Clamping Bolt flat without slot double ‐ burnished

Length (a) 74 mm
Weight 0,36 kg
Shearing Force 220 kN
Tightening Torque Steel 25 Nm
Tightening Torque Aluminum 10 Nm
Tensile Force Steel  25 kN



Product description
Flat Burnished Clamping Bolt, mainly used for clamping of elongated holes. Like the countersunk bolt, it reduces protrusion.

Ideal for cordless screwdriver with up to 25 Nm turning moment.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Clamping torque dependent on table type.

‐ for clamping 2 components
‐ suitable for aluminum profiles
‐ with hexagon socket (Size 6)

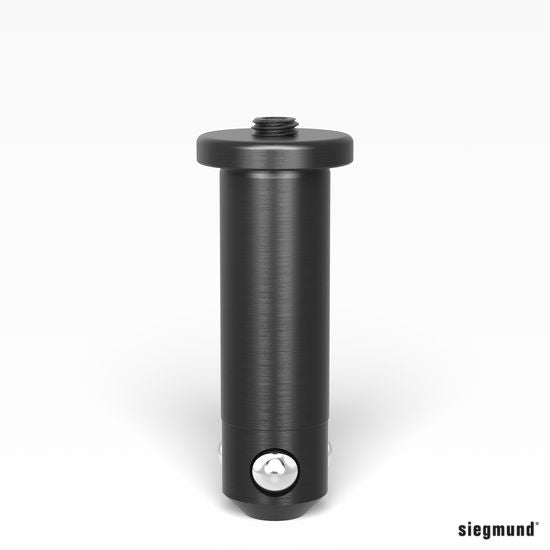

Item No.: 2-280525

Fast Clamping Bolt flat without slot triple ‐ burnished

Length (a) 99 mm
Weight 0,42 kg
Shearing Force 220 kN
Tightening Torque Steel 25 Nm
Tightening Torque Aluminum 10 Nm
Tensile Force Steel  25 kN



Product description
Flat Burnished Clamping Bolt, mainly used for clamping of elongated holes. Like the countersunk bolt, it reduces protrusion.

Ideal for cordless screwdriver with up to 25 Nm turning moment.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Clamping torque dependent on table type.

‐ for clamping 3 components
‐ suitable for aluminum profiles
‐ with hexagon socket (Size 6)
