Item 280412: Siegmund Flex Stop 25x156, aluminum, for System 28 welding tables with Ø28 mm bores. It is adjusted individually through its elongated hole (100 mm range); Siegmund says it is favoured for stainless steel work and in confined spaces. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Siegmund article | 280412 (siegmund.com) |
|---|---|
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) |
| Length | 156 mm (6.14 in) |
| Width | 52 mm (2.05 in) |
| Material thickness | 25 mm (0.98 in) |
| Adjusting range | 100 mm (3.94 in) |
| Weight | 0.3 kg (0.66 lb) |
| Finish | Aluminum |
| Wall thickness | 12 mm |
| Mounting | Elongated hole |
| GTIN | 4251805917628 |
Related products & accessories
Compatibility
- Fits: Siegmund System 28 welding tables and tooling with Ø28 mm bores on a 100 mm grid. Siegmund System 28 accessories also fit other 28 mm system welding tables with Ø28 mm bores on a 100 mm grid. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
- Siegmund System 28: fits every System 28 Siegmund table, including the Professional Extreme 8.7 and 8.8 PLUS tables listed on bthsales.ca; on a System 16 table it needs Siegmund's Reduction Bushing 28->16 (000546, suits boreholes and elongated holes) with System 16 bolts, or the Combination Fast Clamping Bolt 28->16 (000520); neither is listed on bthsales.ca.
- Works with: other Siegmund System 28 clamps, bolts, stops, squares and U-squares on the same table.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
- 1 x Siegmund Flex Stop 25x156 Aluminum (280412)
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. BTH Sales does not sell cobots; for cobot cells we help with table integration and fixturing (see cobot welding with Siegmund tables). Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Typical uses
- Stopping stainless steel workpieces (Siegmund).
- Stopping in corners and on freeform stop surfaces (Siegmund).
- Siegmund describes System 28 as ideal for light to heavy components and designed for maximum clamping forces, multi-ton structures and high distortion forces.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Frequently Asked Questions
Where does a flex stop work best?
Siegmund says the rounded clamping sides let it be used in corners as well as on freeform stop surfaces, and that the Flex Stop is favoured when working with stainless steel and in confined spaces.
Aluminum or galvanized steel?
Siegmund favours the aluminum Flex Stop for stainless steel work. It lists the 25x156 aluminum (280412) at 0.3 kg and the 25x140 galvanized steel (280416) at 0.37 kg, both with a 100 mm adjusting range.
Will it fit other 28 mm welding tables?
Yes, if the table has Ø28 mm bores on a 100 mm grid. Check the bore diameter and grid before ordering. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
Related parts

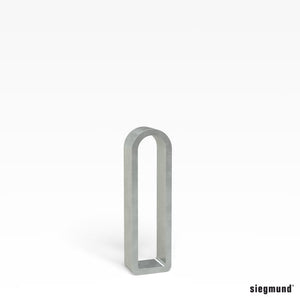

- System 28 Flex Stop 25x140 galvanized (280416)
- System 28 Universal Stop 150 L
- System 28 bolts
- All Siegmund System 28 stops
Ships across Canada from 5 Industrial Rd, St. Marys, ON N4X 1G2, or pick up from our warehouse. Email sales@bthsales.ca or call +1-519-461-1381 with questions or for a freight quote.
