Items 280300.N (stop on right) and 280301.N (stop on left): Siegmund Support and Clamping Frame, Cast Iron 300x200x100, nitrided, for System 28 welding tables with Ø28 mm bores. Made from GGG40 ductile cast iron, it connects different elements and works as a table extension or console, with fixed or variable stops. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications

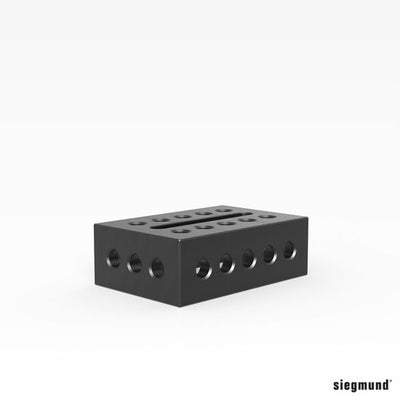

| Siegmund article | 280300.N (siegmund.com) | 280301.N (siegmund.com) |
|---|---|---|

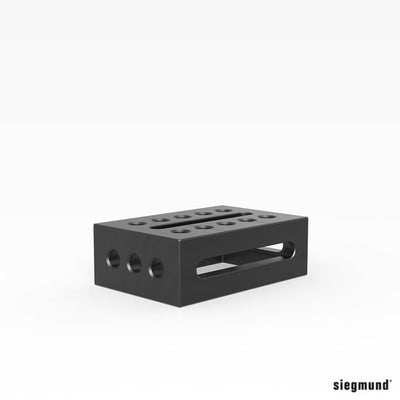

| Description | Support and Clamping Frame, Cast Iron 300x200x100 right nitrided | Support and Clamping Frame, Cast Iron 300x200x100 left nitrided |
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) | |
| Length | 300 mm (11.81 in) | |
| Width | 200 mm (7.87 in) | |
| Height | 100 mm (3.94 in) | |
| Material thickness | 25 mm (0.98 in) | |
| Weight | 19.5 kg (42.99 lb) | |
| Finish | Nitrided | |
| Stop side | Right | Left |
| Material | GGG40 ductile cast iron | |
| Bored faces | System bores on a 50 mm grid on five sides, plus elongated holes | |
| GTIN | 4251805921595 | 4251805921731 |
Compatibility
- Fits: Siegmund System 28 welding tables and tooling with Ø28 mm bores on a 100 mm grid. Siegmund System 28 accessories also fit other 28 mm system welding tables with Ø28 mm bores on a 100 mm grid. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
- Not compatible: System 16 (Ø16 mm) tables; Siegmund builds each system around one bore size.
- Works with: other Siegmund System 28 clamps, bolts, stops, squares and U-squares on the same table.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
Choose one option; each option is one piece:
- 1 x Siegmund Support and Clamping Frame, Cast Iron 300x200x100 right nitrided (280300.N)
- 1 x Siegmund Support and Clamping Frame, Cast Iron 300x200x100 left nitrided (280301.N)
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. BTH Sales does not sell cobots; for cobot cells we help with table integration and fixturing (see cobot welding with Siegmund tables). Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Typical uses
- Connecting different elements in a fixture (Siegmund).
- Table extension or console (Siegmund).
- Fixed and variable stops through the bores and elongated holes (Siegmund).
- Siegmund describes System 28 as ideal for light to heavy components and designed for maximum clamping forces, multi-ton structures and high distortion forces.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Frequently Asked Questions
Do I need the left or the right version?
The two versions differ only in which side the stop is on: 280300.N has the stop on the right and 280301.N on the left. Siegmund lists the same size (300 x 200 x 100 mm, 25 mm material thickness) for both.
Can I set variable stops with the support and clamping frame?
Yes. Siegmund says both fixed and variable stops are possible because the frame combines system bores with elongated holes, and the 50 mm grid of bores on five sides gives a wide range of combination options.
Will it fit other 28 mm welding tables?
Yes, if the table has Ø28 mm bores on a 100 mm grid. Check the bore diameter and grid before ordering. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
