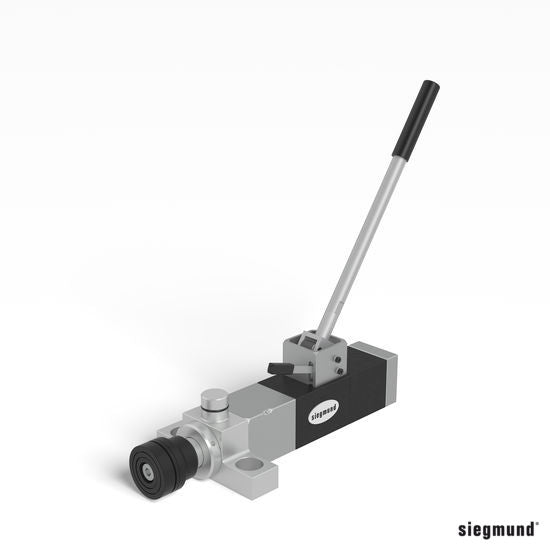

The Siegmund Table Press straightens bent or stressed steel parts right on a System 28 welding table. Siegmund rates it at a compressive force of 2.5 tonnes, with a 60 mm total stroke and an overflow valve that stops pressure build-up at full extension. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Item no. | 280780 (siegmund.com) |
|---|---|
| Siegmund name | Table press System 28 |
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) |
| Weight | 6.7 kg (14.77 lb) |
- Stroke: 60 mm total in 13 pump strokes (4.6 mm per stroke) at an operating force of approx. 330 N, per Siegmund.
- Fixing: Siegmund says the press must always be fixed in two places; it can be fixed through the turret head with fast clamping bolts.
Works with this product
-

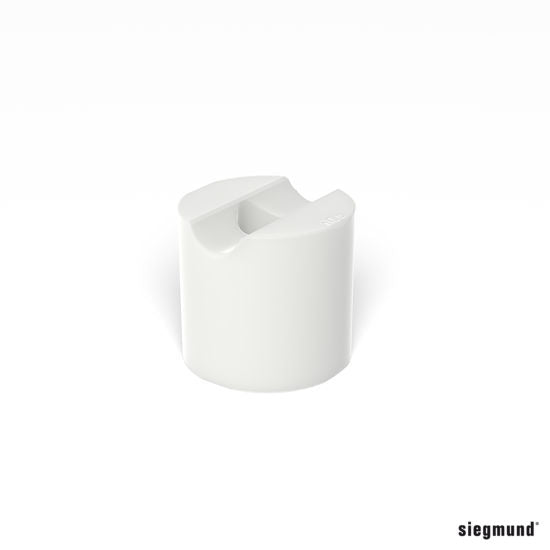

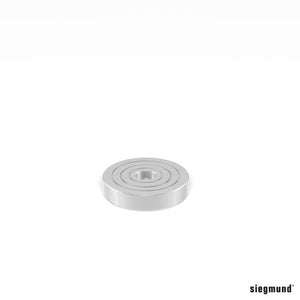

Siegmund System 16/28 - Thrust Piece
From $41.00
-

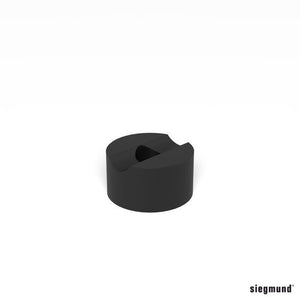

Siegmund System 16/28 - Pipe Adapter
$47.00
-

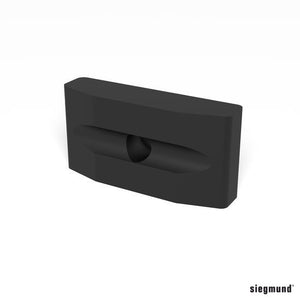

Siegmund System 16/28 - Pipe Bending Plug
$86.00
-

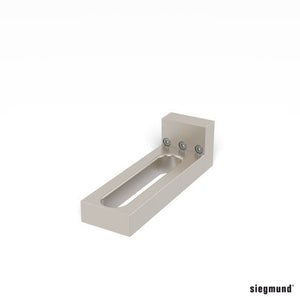

Siegmund System 28 - Special Square System 28
$218.00
-
Siegmund System 28 - Fast Clamping Bolt without Slot
From $115.00
-
Siegmund System 16 & 28 - Anti-Splatter
From $38.00
-
Siegmund System 16 & 28 - Clean Basic
From $32.00
-
Siegmund System 16 & 28 - Ground Connection Comfort
$104.00
Compatibility
- Fits: Siegmund System 28 welding tables and tooling with Ø28 mm bores.
- Not compatible: System 16 (Ø16 mm) tables; Siegmund builds each system around one bore size.
- Related products: 000701.AL Siegmund System 16/28 - Thrust Piece, 000703.1 Siegmund System 16/28 - Pipe Adapter, 000704.1 Siegmund System 16/28 - Pipe Bending Plug, 280702 Siegmund System 28 - Special Square System 28, 280511 Siegmund S28 Fast Clamping Bolt without Slot.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
- 1 x Siegmund Table press System 28 (280780)
Typical uses

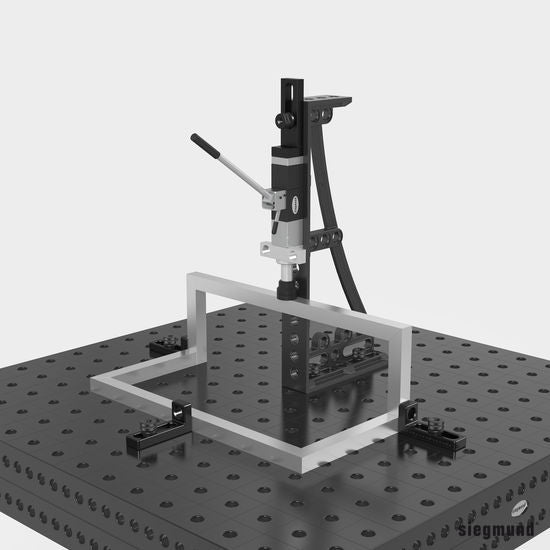

- Straightening distorted weldments on the table

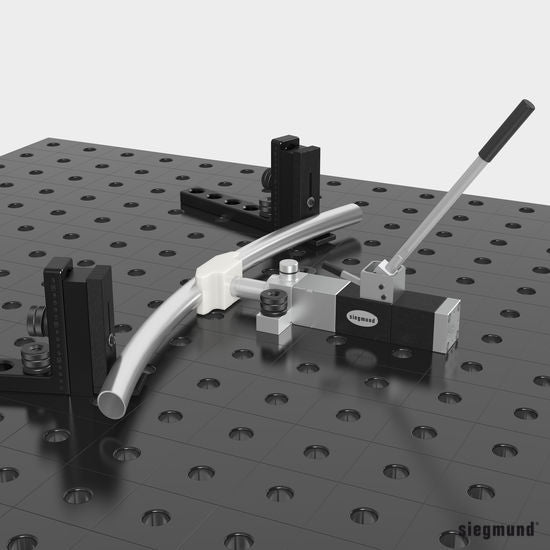

- Bending pipe up to Ø42 mm with the pipe bending plug

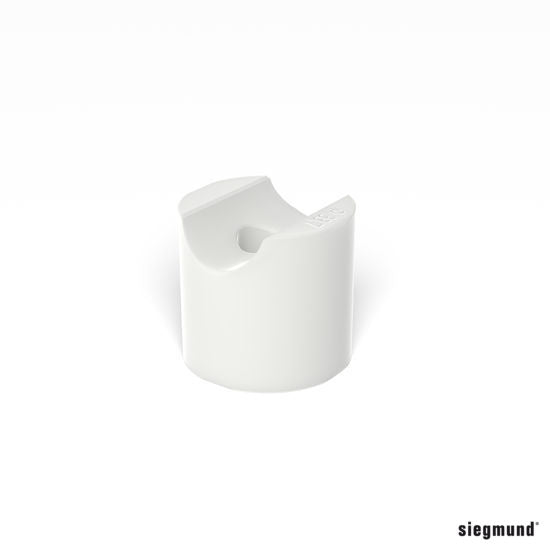

- Pressing corners with the aluminum or polyamide thrust piece
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Ships across Canada by freight from 5 Industrial Rd, St. Marys, ON N4X 1G2, or pick up from our warehouse. Email sales@bthsales.ca or call +1-519-461-1381 for a freight quote and delivery estimate.
Frequently Asked Questions
How much force does the table press have?
Siegmund rates the table press at a compressive force of 2.5 tonnes, with a total stroke of 60 mm reached in 13 pump strokes at an operating force of approx. 330 N.
Can it bend pipe?
Yes. With the pipe bending plug, Siegmund says pipes with a diameter of up to 42 mm can be bent. Pipe adapters and bending plugs are made for specific pipe diameters.
How is the press fixed to the table?
Siegmund says the table press must always be fixed in two places. It can be fixed through the turret head with fast clamping bolts, and the Special Square 280702 adds an extension and vertical fixation.
