SIEGMUND SYSTEM 28 - VARIO PRISM Ø 50 90° / 120° WITH SCREWED-IN COLLAR

Siegmund's Prisms and Supports are compatible with all 28mm fixture tables. Manufactured in Germany, Siegmund's Prisms are made with the highest quality standards on the market. That way, you can take on any job with confidence using Siegmund tooling.

Siegmund's System 28 Prisms are designed for pipes of significant diameter. Throughout the design process, Siegmund ensures that the final product creates the perfect support surface for large, round piping. A screw-in collar is able to be fastened in the boreholes of any 28mm fixture table, and assuredly secured with ease. The collar can also be unscrewed from the prism, allowing operators to position the prism independently from the table's borehole grid. Additionally, Prism Extensions can be used to change the working height for any task and Prisms are available in Polyamide to eliminate marking and scratching on softer materials.

Technical Data:

Item No.: 280645.1

Vario Prism Ø 50 90° / 120° with screwed-in collar ‐ burnished

Height (c)	20 mm
Weight	0,2 kg
Diameter	50 mm

Product description

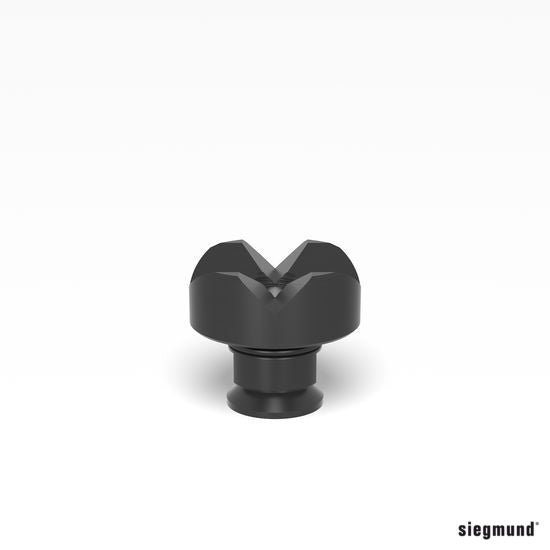

Vario Prism, suitable for both rounded and 45° twisted square pipes with a diameter of up to 50 mm.

The prism with screwed-in collar can be fastened in the boreholes and securely fixed using the M16 countersunk screw (Item No. 009410). For free positioning of the prism independent of the hole grid you can easily unscrew the collar from the prism. If necessary, the working height of the prism can be varied by a prism extension.

Polyamid Prisms are used for scratch-prone surfaces.

‐ M16 thread for e.g. prism extensions Item No. 280649

Item No.: 280645.1.A

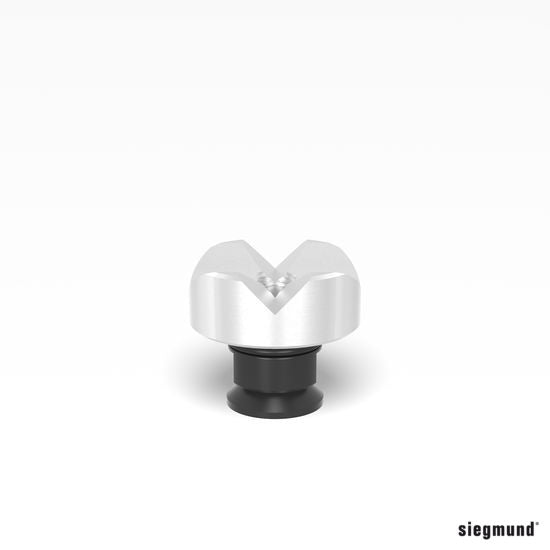

Vario Prism Ø 50 90° / 120° with screwed-in collar ‐ Aluminum

Height (c)	20 mm
Weight	0,07 kg
Diameter	50 mm

Item No.: 280645.1.PA

Vario Prism Ø 50 90° / 120° with screwed-in collar ‐ Polyamide

Height (c)	20 mm
Weight	0,03 kg
Diameter	50 mm

Works with this product

Compatibility

Siegmund System 28: fits every System 28 Siegmund table, including the Professional Extreme 8.7 and 8.8 PLUS tables listed on bthsales.ca; Siegmund's page cross-references 009410, 280649; on a System 16 table it needs Siegmund's Reduction Bushing 28->16 (000546, suits boreholes and elongated holes) with System 16 bolts, or the Combination Fast Clamping Bolt 28->16 (000520); neither is listed on bthsales.ca.

Frequently Asked Questions

What pipe sizes does the S28 Vario Prism Ø50 take?

Siegmund says it suits both round and 45° twisted square pipes with a diameter of up to 50 mm.

How is it fixed in the bore?

The screwed-in collar fastens it in the boreholes, and Siegmund says it is securely fixed with the M16 countersunk screw 009410. Unscrew the collar to position the prism off the hole grid.

Which material should I choose?

This page offers burnished (280645.1), aluminum (280645.1.A) and polyamide (280645.1.PA). Siegmund uses polyamide prisms for scratch-prone surfaces.
