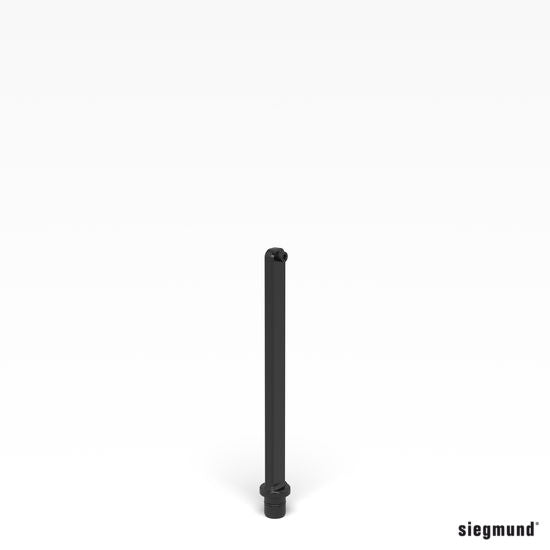

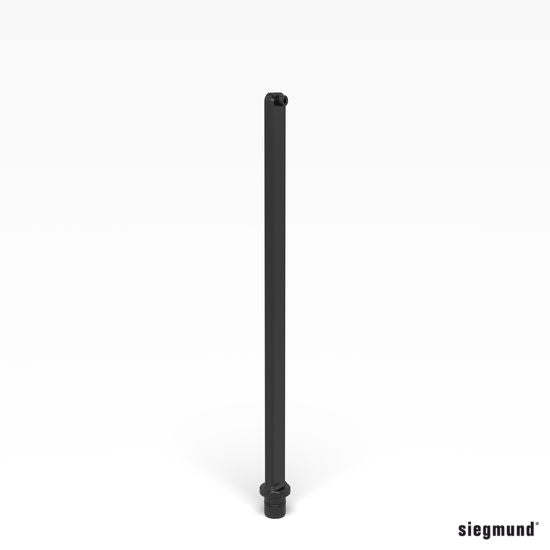

Reinforced vertical bars for the Siegmund System 28 Professional Screw Clamp 280610.N, clamp 280611.1 and Fast Tension Clamp 280615.N. Siegmund makes them 310, 500 and 800 mm long, 30 mm wide and 14 mm thick. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Item no. | 280632.1.N (siegmund.com) | 280632.2.N (siegmund.com) | 280632.N (siegmund.com) |
|---|---|---|---|
| Siegmund name | Vertical Bar 500 | Vertical Bar 800 | Vertical Bar 310 |
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) | ||
| Length | 500 mm (19.69 in) | 800 mm (31.50 in) | 310 mm (12.20 in) |
| Width | 30 mm (1.18 in) | ||
| Material thickness | 14 mm (0.55 in) | ||
| Weight | 1.83 kg (4.03 lb) | 2.78 kg (6.13 lb) | 1.22 kg (2.69 lb) |
Works with this product
-
Siegmund System 28 - Professional Screw Clamp
$171.00
-
Siegmund System 28 - Professional Screw Clamp with Vertical Action Toggle
From $236.00
-
Siegmund System 28 - Professional Fast Tension Clamp
$221.00
-

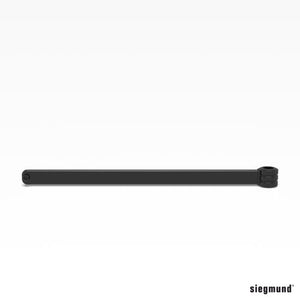

Siegmund System 28 - Horizontal Bars For 280610/280611
From $27.00
-
Siegmund System 16 & 28 - Anti-Splatter
From $38.00
-
Siegmund System 16 & 28 - Clean Basic
From $32.00
-
Siegmund System 16 & 28 - Ground Connection Comfort
$104.00
Compatibility
- Fits: Siegmund System 28 welding tables and tooling with Ø28 mm bores.
- Not compatible: System 16 (Ø16 mm) tables; Siegmund builds each system around one bore size.
- Related products: 280610.N Siegmund System 28 - Professional Screw Clamp, 280611.1 Siegmund System 28 - Professional Screw Clamp With Vertical Action Toggle, 280615.N Siegmund System 28 - Professional Fast Tension Clamp, 280631.N Siegmund System 28 - Horizontal Bars For 280610/280611.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
Choose one option; each option is one piece:
- 1 x Siegmund Vertical Bar 500 (280632.1.N)
- 1 x Siegmund Vertical Bar 800 (280632.2.N)
- 1 x Siegmund Vertical Bar 310 (280632.N)
Typical uses
- Raising the clamping height of a System 28 screw clamp
- Replacing a damaged vertical bar
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Ships across Canada by freight from 5 Industrial Rd, St. Marys, ON N4X 1G2, or pick up from our warehouse. Email sales@bthsales.ca or call +1-519-461-1381 for a freight quote and delivery estimate.
Frequently Asked Questions
Which clamps take these vertical bars?
Siegmund lists them for 280610.N, 280611.1 and 280615.N.
Which lengths are available?
Siegmund makes 280632.N at 310 mm, 280632.1.N at 500 mm and 280632.2.N at 800 mm, all 30 mm wide and 14 mm thick.
