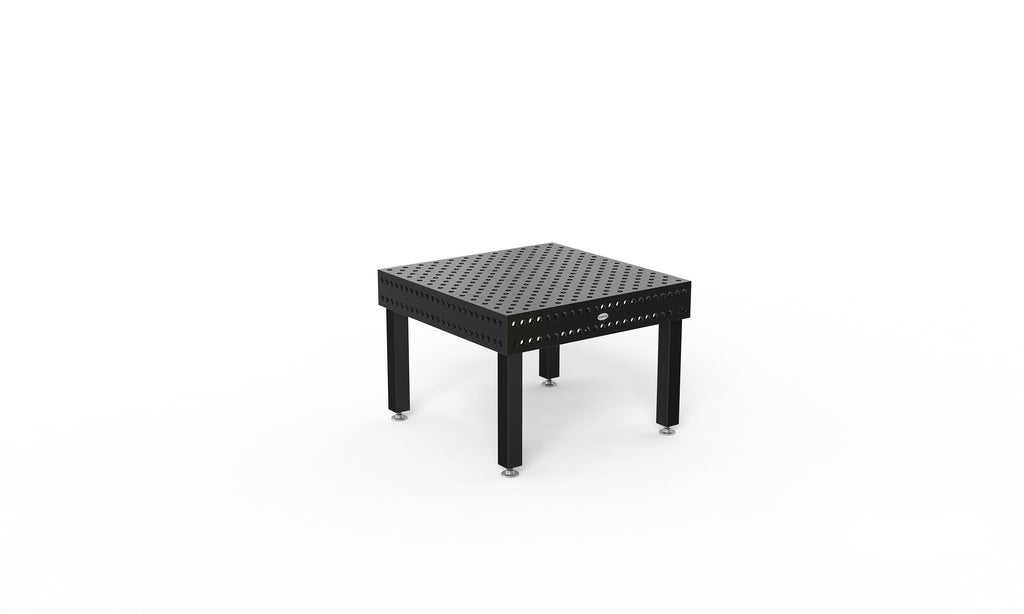

System 28 Professional Extreme 8.7 - 1200x1200x200 Plasma nitrided Diagonal grid ‐ table side with diagonal grid

  • Sale
  • Regular price $9,258.00
Shipping calculated at checkout.


Item Number:  2-280015.XD7D
*Standard Stock


Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.

The 8.7 Series Welding Tables are made with hardened X7 Steel, which is made special for Siegmund in Germany.  This hardness grade of this steel is a notably higher than 98% of the welding tables in the market today. Only Siegmund's 8.8 Series Welding Tables have a harder steel than the 8.7 series tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.

Welding Table Specs and Features:

  • Overall Tabletop Size: 1,200 x 1,200 x 200mm (47.2" x 47.2" x 7.87")

  • Borehole: Ø 28mm (1.10")

  • Welding Table Series: Professional Extreme 8.7 Series

  • Welding Table Material Thickness: Approx. 24.5 – 27mm (0.96" - 1.06")

  • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated

  • Table Surface Hardness: 450-850 Vickers

  • Official Siegmund Welding Table Part No.: 4-280015.XD7D

  • Maximum Weight Load: 7,620 lbs. (Based on Even Distribution)

  • Approximate Table Weight: 1,148 lbs. / 521 kg.

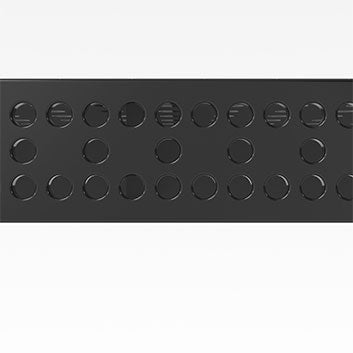

  1. Boreholes on the Surface are in a Diagonal Grid Configuration.
  2. Boreholes have a radius of 3mm (0.118").
  3. Radius 3mm (0.118") / 6mm (0.236") on table edges and corners.
  4. Height of table side 200mm (7.87") - Borehole spacing of table side 50mm (1.96")

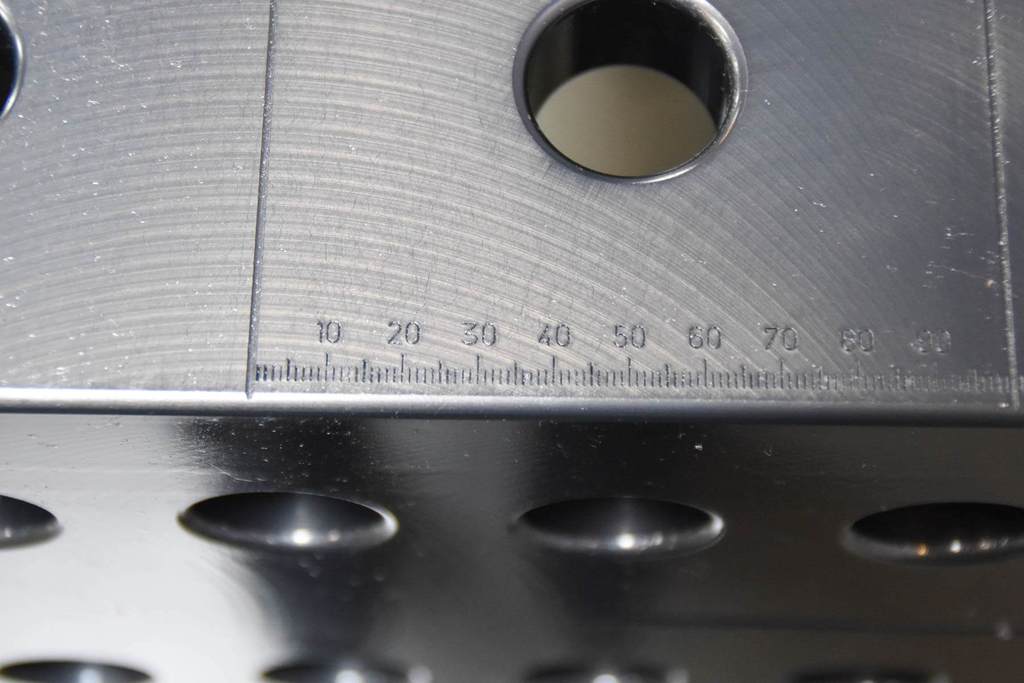

  5. Metric Scaling on the surface.
  6. Construction reinforced with ribbing.



The System 28 Welding Table Series was created with Heavy Duty Applications in Mind.

All System 28 Professional Extreme welding tables feature the latest refinements in  appearance, ingenuity, strength and reliability.

Our Double Hardened Welding Tables are constructed with through-hardened steel,  before undergoing a Plasma Nitride treatment to provide you with a Welding Table of elite quality and performance.

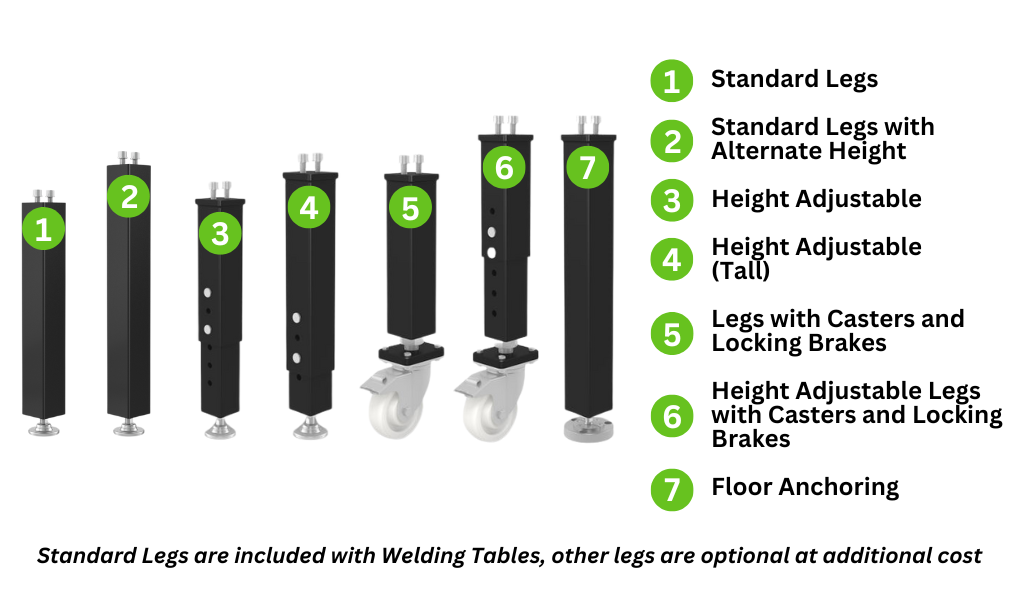

Available Style Variants

  • Standard 850mm Legs,
  • Alternate Height Standard 950mm Legs,
  • Height Adjustable 650-900mm Legs,
  • Height Adjustable Alternate Height 750-1100mm Legs,
  • Caster with locking brake 850mm Legs,
  • Caster with Locking brake and Height Adjustable 750-950mm Legs,
  • Floor Anchoring 850mm Legs
