PETec Table Lift Systems
Item 164014.X7.1.
Elevate your welding game with the PETec Table Lift Systems. This movable table features a patented chain spindle drive, reinforced steel frame, and heavy-duty capacity to ensure superior performance. With 4 legs and casters, easily adjust the height for maximum comfort and precision. Frame with Siegmund System 16 Plate, 1500x1000mm.
Highlights:
- Smooth infinite height adjustment from 650–950 mm (without the table top) using a cordless drill
- With self-locking spindle system
- PETec frame load rating: 1,000 kg (2,205 lbs) in addition to the table top
- Impact and shock-resistant
- Easily height adjustable even under maximum load
- Table legs with additional adjustable machine feet
- Delivered ready for use, fully assembled
- Made in Germany

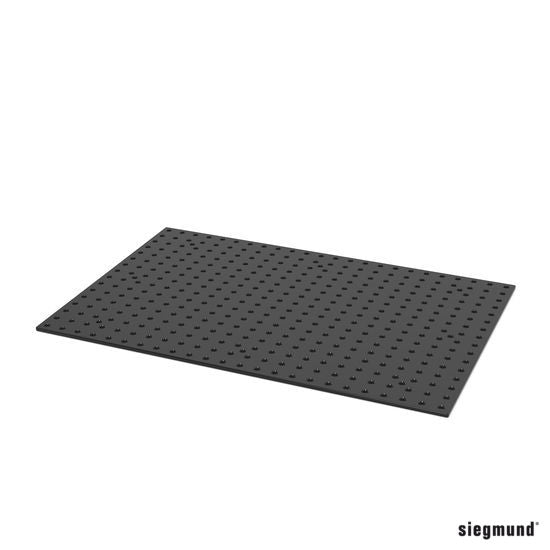

Siegmund System 16 1500x1000mm Plate Product Information:
Item#: 164014.X7.1
| Length: | 1500mm |
| Width: | 1000mm |
| Material Thickness: | 12mm |
| Weight: | 135kg |
| Special Equipment | Available by Request |
Related products & accessories
-
System 16 - Perforated plate X8.7 1500x1000x12 Plasma nitrided (PLATE ONLY)
$2,401.00
-
Siegmund Set 1 – System 16 (29 pcs)
$2,401.00
-
Siegmund Set 2 – System 16 (55 pcs)
$4,293.00
-
Siegmund Set 3 – System 16 (73 pcs)
$6,359.00
-
PETec Height-Adjustable Table Frame 1500x1000 mm (Frame Only)
$6,475.00
-
PETec Height-Adjustable Welding Table 1500x1000 mm with Siegmund System 16 Top
$11,475.00
Compatibility
- Fits Siegmund System 16 tooling (16 mm bores), including Siegmund Sets 1–3 for System 16.
- Not for System 28 tooling.
- 650–950 mm (without the table top).
Frequently Asked Questions
How do I adjust the height of the PETec 1500 x 1000 mm welding table?
You adjust the PETec 1500 x 1000 mm welding table with a Siegmund System 16 plate by using a cordless drill. Its patented chain spindle drive gives smooth, stepless height adjustment of 650–950 mm (without the table top), and the self-locking spindle holds the height you set. PETec recommends an 18 V brushless drill of at least 2,000 rpm, with the impact function off and a 24 mm socket.
What are the specs of the Siegmund System 16 plate on this PETec table?
The Siegmund System 16 plate on this PETec table is 1500 x 1000 mm and 12 mm thick. It takes Siegmund System 16 tooling with 16 mm bores.
What is the maximum load of the PETec frame under this 1500 x 1000 mm table?
The PETec frame under this 1500 x 1000 mm table with a Siegmund System 16 plate has a maximum load of 1,000 kg (2,205 lbs) in addition to the table top, and you can adjust the height even under maximum load.
Which Siegmund tooling fits the PETec 1500 x 1000 mm table with a Siegmund System 16 plate?
The PETec 1500 x 1000 mm table with a Siegmund System 16 plate takes Siegmund System 16 tooling (16 mm bores), including Siegmund Sets 1–3 for System 16. It is not for System 28 tooling.
How do I get a delivery estimate for the PETec 1500 x 1000 mm welding table in Canada?
To get a delivery estimate for the PETec 1500 x 1000 mm welding table with a Siegmund System 16 plate, contact BTH Sales, the exclusive Canadian importer of PETec, at sales@bthsales.ca or 519-461-1381 with your location. PETec delivers it ready for use, fully assembled. School, military and student discounts are also available; just ask.
Related products
Check out the Advantages of the PETec Height-Adjustable Design
Ergonomic Design
Height-adjustable tables promote healthier working conditions by reducing the risk of back pain. The customizable heights create an ergonomically optimized environment that boosts productivity.
Spindle-Chain Drive
Our patented spindle-chain drive ensures reliable, precise height adjustment without hydraulics, reducing the risk of sudden sagging. This enhances workplace safety and makes our tables perfect for precise welding tasks, offering unmatched stability and reliability, even under heavy loads.
Shock and Impact Resistance
Our tables are built to endure heavy-duty use, withstanding impacts and shocks at any height. Crafted for durability, they excel in demanding industrial environments, maintaining stability and structural integrity. Whether dealing with heavy loads or frequent handling, our tables offer unwavering reliability and safety for your workspace.
Unmatched Mobility
Featuring high-quality casters, our tables provide effortless mobility in your workshop. The adjustable height lets you position the table precisely where it's needed.
Outstanding Stability
Our tables offer smooth height adjustability, even under uneven and heavy loads. Built with a strong, stable construction, they prevent wobbling or shifting, providing a reliable and secure platform to meet the toughest industrial demands.
Rock-Solid
Designed for exceptional stability, our tables come with adjustable, rubberized industrial feet, ensuring a secure grip on any surface. Their durable construction maintains stability, even under uneven and heavy loads.
Durability
Built for durability, our tables are a smart investment in your business's future. Equipped with our patented spindle-chain drive and industrial-grade legs with self-lubricating guide bushings, they ensure long-lasting performance and reliability.
Ready to Use
Shipped fully assembled, our height-adjustable tables are ready for immediate use. Save time and get to work instantly, with no need for complicated assembly.
