Siegmund Set 3 for System 16 (item no. 4-163300) is a 73-piece tooling kit for Siegmund System 16 welding and clamping tables. It includes 12 clamps, 4 prisms, 24 bolts, 12 stops and 20 squares, plus the Siegmund accessories set 163999. Order it in Canada from BTH Sales.
Key specs
- System: Siegmund System 16 (Ø 16 mm boreholes)
- Manufacturer article no.: 4-163300 (ERP 16002461)
- GTIN/EAN: 4251805906356
- Set weight: 39.62 kg (manufacturer data)
- Materials: as listed per item in the table above (Siegmund item descriptions)
- Components made by Bernd Siegmund GmbH, Germany

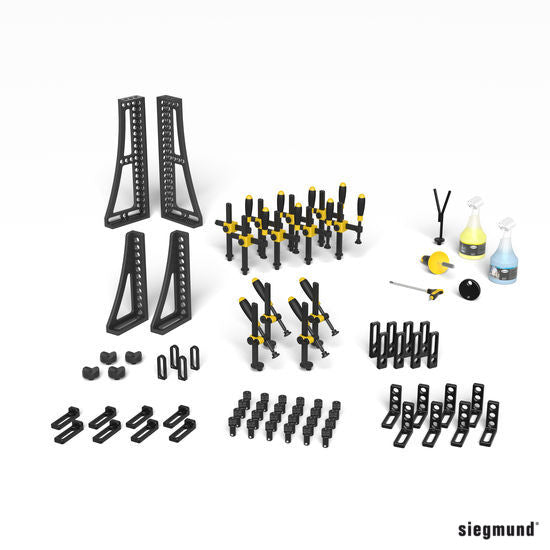

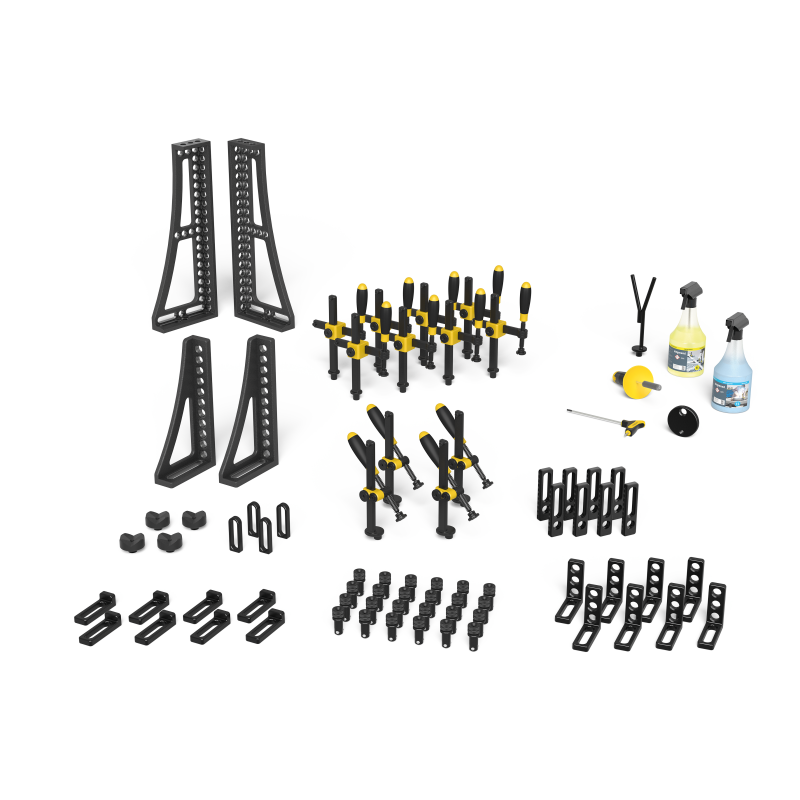

What's included
| Qty | Item no. | Name |
|---|---|---|
| 8 | 160610 | Professional Screw Clamp burnished / nitrided |
| 4 | 160630 | Professional Screw Clamp 45°/90° burnished |
| 4 | 160645.1.N | Vario Prism Ø 50 90°/120° with screwed-in collar nitrided |
| 24 | 160511 | Fast Clamping Bolt without slot double burnished |
| 4 | 160410.N | Universal Stop 80 L nitrided |
| 8 | 160420.N | Universal Stop 115 L nitrided |
| 8 | 160108.N | Stop and Clamping Square 90 X nitrided |
| 8 | 160110.N | Stop and Clamping Square 90 L nitrided |
| 2 | 160162.N | Stop and Clamping Square 300 G nitrided |
| 1 | 160134+36.N | Set Stop and Clamping Square 500 GK nitrided |
| 1 | 163999 | Accessories-Set (included in Set 1 - Set 5) |
Total: 73 pieces (per Siegmund's listing; paired left/right squares count as two).
Accessories set 163999 contents
- 1 × 160402.N Eccentric Stop Ø 75 with M10 thread nitrided
- 1 × 160852 Hex wrench Size 4
- 1 × 160820 Brush Ø 17 with protecting cover
- 1 × 000914 CleanBasic 1 liter spray bottle
- 1 × 000924 Anti-Spatter 1 liter spray bottle
- 1 × 160920 Burner Holder burnished
Compatibility
It fits Siegmund System 16 welding tables (Ø 16 mm bores). It is not compatible with System 28 tables, which use 28 mm bores. Siegmund System 16: fits every System 16 Siegmund table, including the Professional Extreme 8.7 and 8.7 PLUS tables listed on bthsales.ca.
Related: System 16 Professional Extreme 8.7 tables
Compare System 16 sets
- Set 1 – System 16 (29 pcs)
- Set 2 – System 16 (55 pcs)
- Set 4 – System 16 (100 pcs)
- Set 5 – System 16 (118 pcs)
- Basic Set 1 – System 16 (31 pcs)
- Basic Set 2 – System 16 (45 pcs)
- Set 1 Aluminum – System 16 (65 pcs)
- Robotic Starter Set – System 16 (29 pcs)
- Robotic Toggle Starter Set – System 16 (31 pcs)
- All Siegmund System 16 table kits & sets
Frequently Asked Questions
Which tables does Set 3 fit?
It fits Siegmund System 16 welding tables (Ø 16 mm bores). It is not compatible with System 28 tables, which use 28 mm bores.
What jobs is Set 3 equipped for?
Based on Siegmund's set list and item descriptions, Set 3 lets you clamp parts down quickly and exactly with the Professional Screw Clamps (including 45°/90° versions); hold round pipes, and square pipes turned 45°, up to 80 mm diameter in the Vario Prisms; set repeatable stops that bolt into the boreholes or slide in the elongated hole (0-50 mm); build adjustable angles with the L squares; stop large sections with the 90 X squares; extend the work area past the table edge with the G squares; stop and support heavy parts with the GK squares.
What does Set 3 add over Set 2?
Per Siegmund's set lists, Set 3 adds a pair (left/right) of Stop and Clamping Squares 500 GK, and has more Professional Screw Clamps (8 instead of 6); Professional Screw Clamps 45°/90° (4 instead of 2); Fast Clamping Bolts (24 instead of 18); Universal Stops 115 L (8 instead of 6); Stop and Clamping Squares 90 X (8 instead of 6); Stop and Clamping Squares 90 L (8 instead of 6). Both include the accessories set.
How do I keep the table and tooling clean with the included accessories?
The 163999 accessories set includes a bore brush plus CleanBasic and Anti-Spatter spray bottles. Siegmund describes CleanBasic as a water-based cleaner for daily table cleaning whose anti-corrosive ingredients prevent rust under normal conditions; it should not be used if rust has appeared from very high humidity. Anti-Spatter is a non-flammable, water-soluble agent that stops weld spatter burning into the table, so spatter can be wiped off after welding. Siegmund also advises cleaning surfaces and holes regularly and avoiding unsuitable abrasives or corrosive substances.
Do you ship Set 3 across Canada?
Yes. BTH Sales ships across Canada from its warehouse in St. Marys, Ontario. Most orders ship within 48 hours of receipt.
