Items 280590, 280590.3 and 280590.4: Siegmund Areal Clamping Bolt, burnished, double to quadruple, for System 28. Recommended by Siegmund for clamping aluminum profiles, it has no O-ring slot for a smooth surface and clamps 2, 3 or 4 components. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Siegmund article | 280590 (siegmund.com) | 280590.3 (siegmund.com) | 280590.4 (siegmund.com) |
|---|---|---|---|

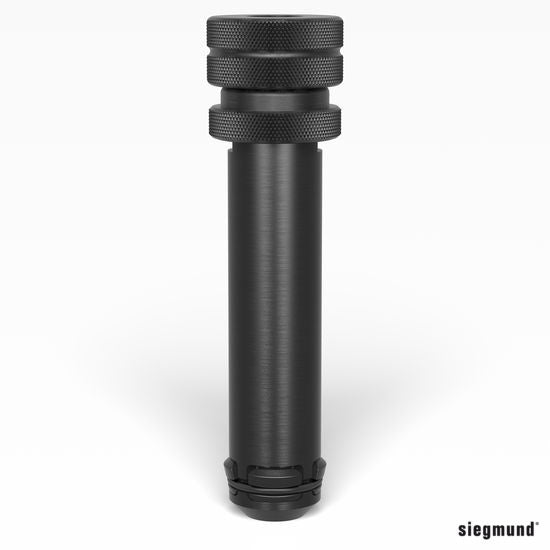

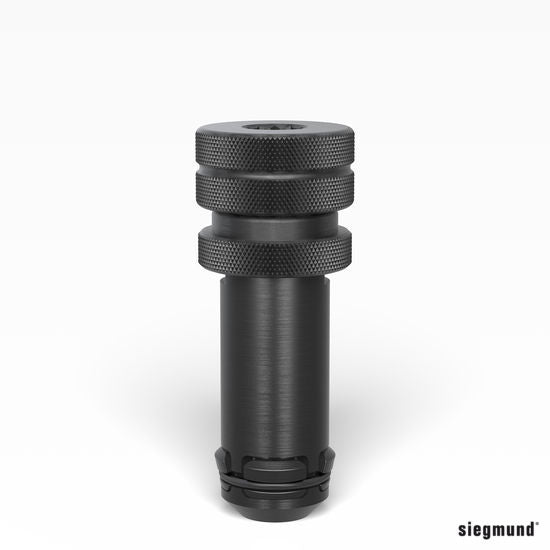

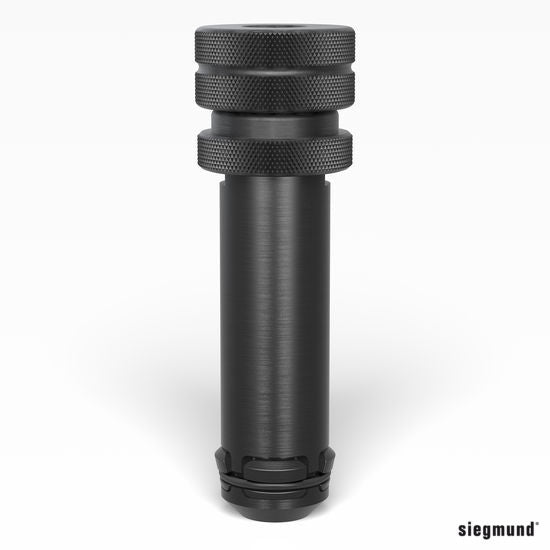

| Description | Areal Clamping Bolt double burnished | Areal Clamping Bolt triple burnished | Areal Clamping Bolt quadruple burnished |
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) | ||
| Length | 100 mm (3.94 in) | 125 mm (4.92 in) | 150 mm (5.91 in) |
| Weight | 0.56 kg (1.23 lb) | 0.68 kg (1.50 lb) | 0.8 kg (1.76 lb) |
| Components clamped | 2 | 3 | 4 |
| Clamping range | 47–53 mm | 72–78 mm | 97–103 mm |
| Hex socket | size 14 | ||
| Tightening torque, steel | 50 Nm | ||
| Tightening torque, aluminum | 20 Nm | ||
| Finish | Burnished | ||
| GTIN | 4251805925746 | 4251805925753 | 4251805925760 |
Compatibility
- Fits: Siegmund System 28 welding tables and tooling with Ø28 mm bores on a 100 mm grid. Siegmund System 28 accessories also fit other 28 mm system welding tables with Ø28 mm bores on a 100 mm grid. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
- Siegmund System 28: fits every System 28 Siegmund table, including the Professional Extreme 8.7 and 8.8 PLUS tables listed on bthsales.ca; Siegmund says it "MUST NOT be used for connecting tables and U-shaped squares".
- Not compatible: System 16 (Ø16 mm) tables; Siegmund builds each system around one bore size.
- Works with: other Siegmund System 28 clamps, bolts, stops, squares and U-squares on the same table.
- Not for: connecting tables and U-shaped squares (Siegmund). Siegmund's connecting bolts are designed for that.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
Choose one option; each option is one piece:
- 1 x Siegmund Areal Clamping Bolt double burnished (280590)
- 1 x Siegmund Areal Clamping Bolt triple burnished (280590.3)
- 1 x Siegmund Areal Clamping Bolt quadruple burnished (280590.4)
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. BTH Sales does not sell cobots; for cobot cells we help with table integration and fixturing (see cobot welding with Siegmund tables). Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Typical uses
- Recommended for clamping aluminum profiles (Siegmund).
- Siegmund describes System 28 as ideal for light to heavy components and designed for maximum clamping forces, multi-ton structures and high distortion forces.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Frequently Asked Questions
Which length do I need?
Siegmund lists clamping ranges of approx. 47–53 mm (280590, 2 components), 72–78 mm (280590.3, 3 components) and 97–103 mm (280590.4, 4 components).
Can I use this bolt to connect two tables?
No. Siegmund says this bolt must not be used for connecting tables and U-shaped squares. For that, use a Siegmund System 28 connecting bolt.
Will it fit other 28 mm welding tables?
Yes, if the table has Ø28 mm bores on a 100 mm grid. Check the bore diameter and grid before ordering. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
