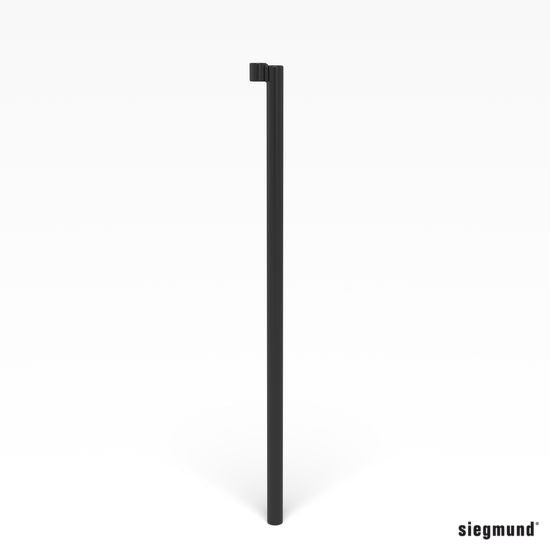

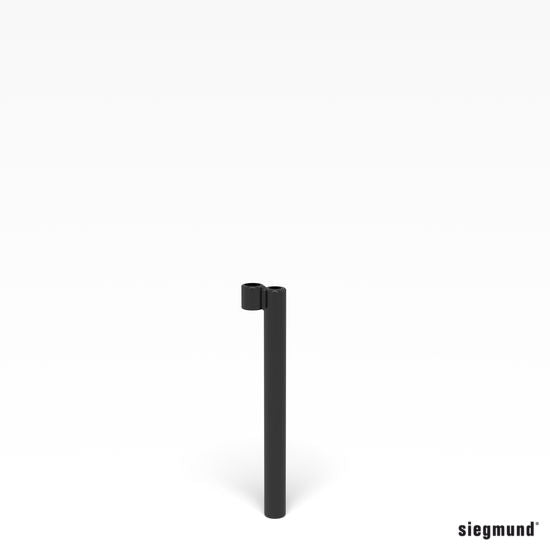

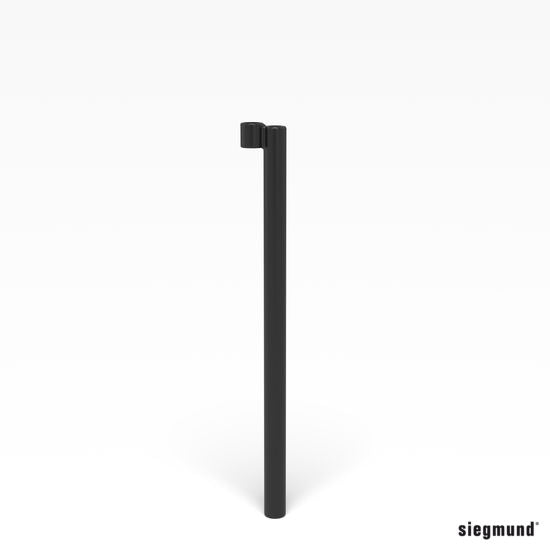

A 300 mm vertical round pipe for the Siegmund System 28 Basic Pipe Clamp 90° 280608.N. Siegmund says it is fixed in the system holes with the adjusting ring 280653.N. It has a 28 mm diameter and weighs 1.03 kg. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Item no. | 280676.1.N (siegmund.com) | 280676.2.N (siegmund.com) | 280676.3.N (siegmund.com) |
|---|---|---|---|
| Siegmund name | Vertical Round Pipe 300 | Vertical Round Pipe 500 | Vertical Round Pipe 800 |
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) | ||
| Length | 300 mm (11.81 in) | 500 mm (19.69 in) | 800 mm (31.50 in) |
| Diameter | 28 mm (1.10 in) | ||
| Weight | 1.03 kg (2.27 lb) | 1.7 kg (3.75 lb) | 2.7 kg (5.95 lb) |
Compatibility
- Fits: Siegmund System 28 welding tables and tooling with Ø28 mm bores.
- Not compatible: System 16 (Ø16 mm) tables; Siegmund builds each system around one bore size.
- Related products: 280608.N Siegmund System 28 - Basic Pipe Clamp 90°, 280653.N Siegmund S28 Bolt Spare Parts.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
Choose one option; each option is one piece:
- 1 x Siegmund Vertical Round Pipe 300 (280676.1.N)
- 1 x Siegmund Vertical Round Pipe 500 (280676.2.N)
- 1 x Siegmund Vertical Round Pipe 800 (280676.3.N)
Typical uses
- Replacing the vertical pipe on a 280608.N clamp
- Raising the clamping point of a 280608.N clamp
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Ships across Canada by freight from 5 Industrial Rd, St. Marys, ON N4X 1G2, or pick up from our warehouse. Email sales@bthsales.ca or call +1-519-461-1381 for a freight quote and lead time.
Frequently Asked Questions
Which clamp does this vertical pipe fit?
Siegmund lists it for the System 28 clamp 280608.N.
How is it fixed?
Siegmund says the vertical pipe is fixed in the system holes with the adjusting ring 280653.N.
