Items 280501, 280510.1, 280512.1, 280653.N, 289007.10, 289009.10, 289016.10 and 289102: Siegmund spare parts for System 28 bolts, including a washer packet, threaded handwheels, an adjusting ring, balls, O-rings and an old-version spare set. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Siegmund article | 280501 (siegmund.com) | 280510.1 (siegmund.com) | 280512.1 (siegmund.com) | 280653.N (siegmund.com) | 289007.10 (siegmund.com) | 289009.10 (siegmund.com) | 289016.10 (siegmund.com) | 289102 (siegmund.com) |
|---|---|---|---|---|---|---|---|---|
| Description | Washer Packet for Bolts | Threaded Handwheel with internal hexagon socket double | Threaded Handwheel with internal hexagon socket triple | Adjusting Ring nitrided | Balls for system 28 clamping bolts | O-Ring, inside diameter 22 mm for system 28 clamping bolts, prisms and positioning bolts | O-Ring, inside diameter 31 mm for system 28 universal bolts comfort | Spare Parts for Bolts, old Version with O-rings + Balls |
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) | |||||||
| Length | – | 70 mm (2.76 in) | 95 mm (3.74 in) | – | – | – | – | – |
| Height | – | – | – | 10 mm (0.39 in) | – | – | – | – |
| Diameter | – | 40 mm (1.57 in) | 40 mm (1.57 in) | – | – | – | – | – |
| Weight | 0.12 kg (0.26 lb) | 0.23 kg (0.51 lb) | 0.3 kg (0.66 lb) | 0.05 kg (0.11 lb) | 0.08 kg (0.18 lb) | 0.01 kg (0.02 lb) | 0.01 kg (0.02 lb) | 0.09 kg (0.20 lb) |
| Hex socket | – | size 6 | size 6 | – | – | – | – | – |
| Finish | – | – | – | Nitrided | – | – | – | – |
| GTIN | 4251805917697 | 4251805919431 | 4251805919448 | 4251805924367 | 4251805919929 | 4251805919936 | 4251805919943 | 4251805903256 |
Compatibility
- Fits: Siegmund System 28 welding tables and tooling with Ø28 mm bores on a 100 mm grid. Siegmund System 28 accessories also fit other 28 mm system welding tables with Ø28 mm bores on a 100 mm grid. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
- Not compatible: System 16 (Ø16 mm) tables; Siegmund builds each system around one bore size.
- Works with: other Siegmund System 28 clamps, bolts, stops, squares and U-squares on the same table.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
Choose one option; each option is one piece:

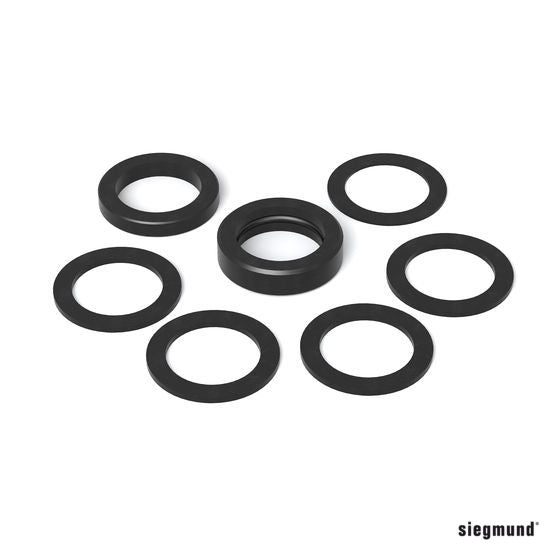

- 280501 Washer Packet for Bolts: 1 x 1 mm, 4 x 2 mm, 1 x 6 mm, 1 x 10 mm washers; to adjust vertical height differences and material variations, for all bolts

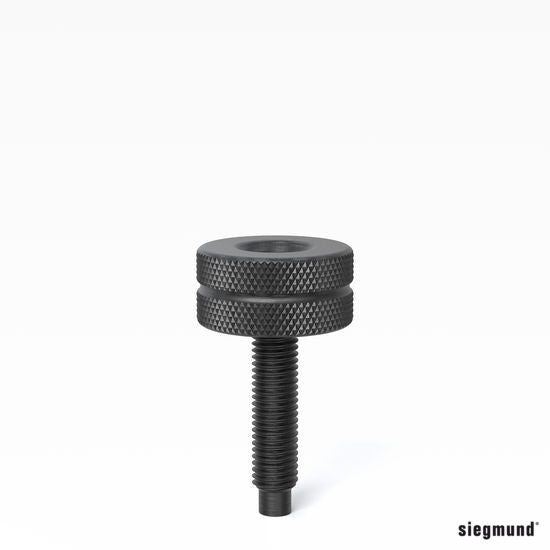

- 280510.1 Threaded Handwheel with internal hexagon socket, double: spare part for Fast Clamp Bolt 280511

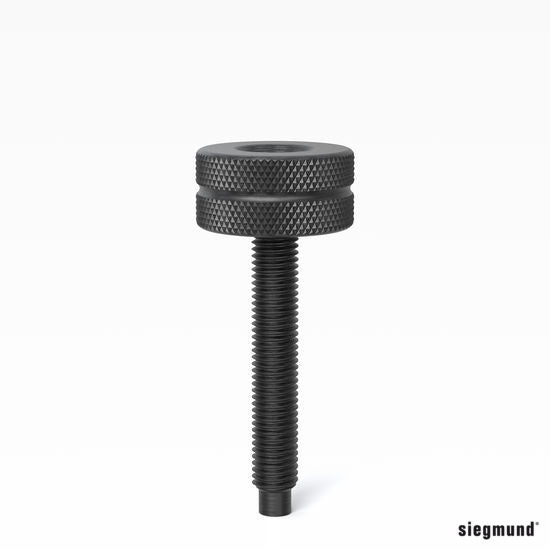

- 280512.1 Threaded Handwheel with internal hexagon socket, triple: spare part for Fast Clamp Bolt 280513

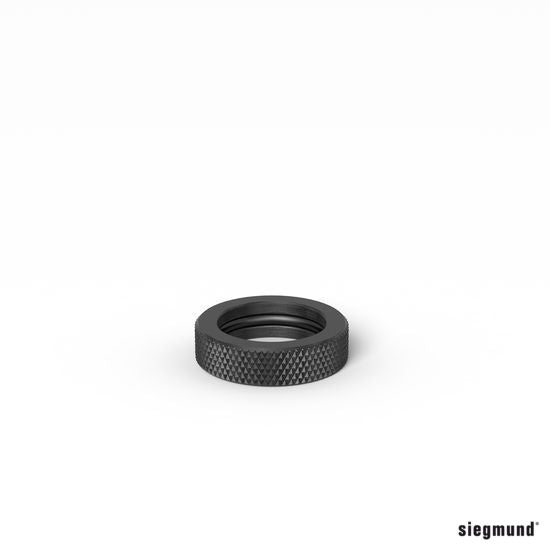

- 280653.N Adjusting Ring, nitrided: for 280604, 280625, 280608.N and 280511

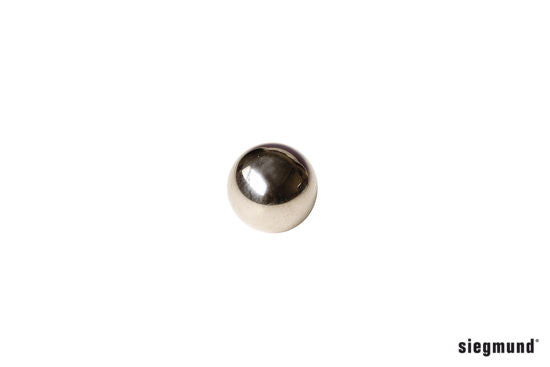

- 289007.10 Balls for System 28 clamping bolts, pack of 10
- 289009.10 O-Ring, inside diameter 22 mm, pack of 10: for System 28 clamping bolts, prisms and positioning bolts

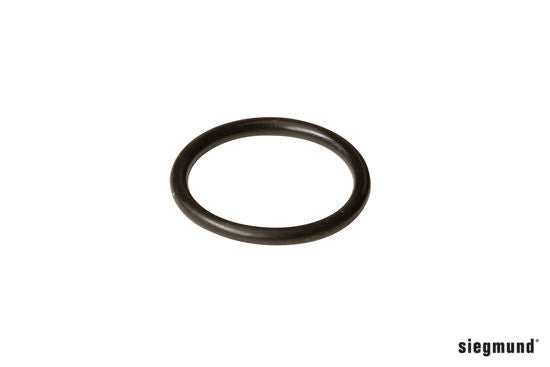

- 289016.10 O-Ring, inside diameter 31 mm, pack of 10: for System 28 Universal Bolts Comfort

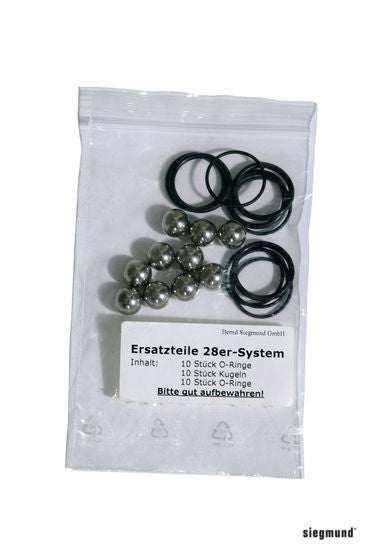

- 289102 Spare Parts for Bolts, old version with O-rings and balls: 10 x 289009, 10 x 289007, 10 x 289010
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. BTH Sales does not sell cobots; for cobot cells we help with table integration and fixturing (see cobot welding with Siegmund tables). Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Typical uses
- Adjusting vertical height differences and material variations with the washer packet (Siegmund).
- Fixing the vertical pipe of pipe clamps in the bores with the adjusting ring (Siegmund).
- Clamping bolts on Premium Light components: Siegmund says the adjusting ring is also required to compensate for the lower material thickness.
- Siegmund describes System 28 as ideal for light to heavy components and designed for maximum clamping forces, multi-ton structures and high distortion forces.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Frequently Asked Questions
What does the adjusting ring do?
Siegmund says the adjusting ring (280653.N) fixes the vertical pipe of pipe clamps in the bores, and in System 28 it is also required when clamping with a clamping bolt on Premium Light components, to compensate for the lower material thickness.
What do the O-rings do?
Siegmund says the 22 mm O-ring sits in the designated groove of System 28 clamping bolts, prisms and positioning bolts to help ensure a secure fit in the bores. The 31 mm O-ring goes into the adjustable cap of the Universal Bolt Comfort to stop the bolt rotating during tightening.
Will it fit other 28 mm welding tables?
Yes, if the table has Ø28 mm bores on a 100 mm grid. Check the bore diameter and grid before ordering. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
