Items 280166.N (stop on left) and 280167.N (stop on right): Siegmund Stop and Clamping Square 750 G, nitrided, for System 28 welding tables with Ø28 mm bores. At 750 mm high and made from GGG40 ductile cast iron, it can be fixed or adjusted variably and doubles as a table extension; Siegmund recommends it as a pair. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Siegmund article | 280166.N (siegmund.com) | 280167.N (siegmund.com) |
|---|---|---|
| Description | Stop and Clamping Square 750 G left nitrided | Stop and Clamping Square 750 G right nitrided |
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) | |
| Length | 276 mm (10.87 in) | |
| Width | 85 mm (3.35 in) | |
| Height | 750 mm (29.53 in) | |
| Material thickness | 27 mm (1.06 in) | |
| Weight | 13.6 kg (29.98 lb) | |
| Finish | Nitrided | |
| Stop side | Left | Right |
| Material | GGG40 ductile cast iron | |
| Scale | Fine scale, standard | |
| Adjustment | System bores plus elongated hole (fixed or variable) | |
| GTIN | 4251805920697 | 4251805920703 |
Related products & accessories
-
Siegmund System 16 & 28 - Anti-Splatter
From $38.00
-
Siegmund System 16 & 28 - Clean Basic
From $32.00
-
Siegmund System 16 & 28 - Ground Connection Comfort
$104.00
-

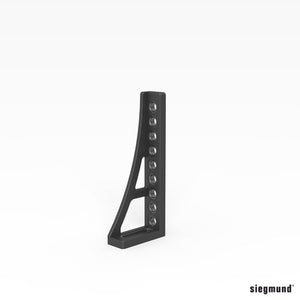

Siegmund System 28 - Stop and Clamping Square 500 G
$446.00
-

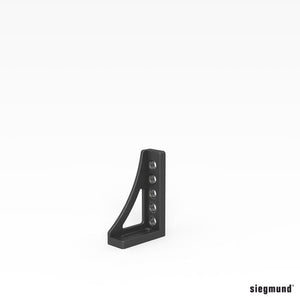

Siegmund System 28 - Stop and Clamping Square 300 G
$342.00
-

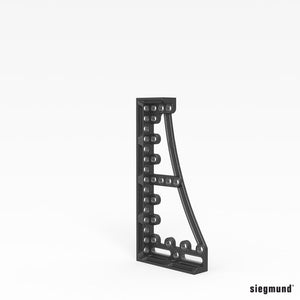

Siegmund System 28 - Stop and Clamping Square 800 GK
$988.00
Compatibility
- Fits: Siegmund System 28 welding tables and tooling with Ø28 mm bores on a 100 mm grid. Siegmund System 28 accessories also fit other 28 mm system welding tables with Ø28 mm bores on a 100 mm grid. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
- Siegmund System 28: fits every System 28 Siegmund table, including the Professional Extreme 8.7 and 8.8 PLUS tables listed on bthsales.ca; on a System 16 table it needs Siegmund's Reduction Bushing 28->16 (000546, suits boreholes and elongated holes) with System 16 bolts, or the Combination Fast Clamping Bolt 28->16 (000520); neither is listed on bthsales.ca.
- Works with: other Siegmund System 28 clamps, bolts, stops, squares and U-squares on the same table.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
Choose one option; each option is one piece:
- 1 x Siegmund Stop and Clamping Square 750 G left nitrided (280166.N)
- 1 x Siegmund Stop and Clamping Square 750 G right nitrided (280167.N)
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. BTH Sales does not sell cobots; for cobot cells we help with table integration and fixturing (see cobot welding with Siegmund tables). Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Typical uses
- Tall stops for vertical work: the square is 750 mm high and can be fixed or adjusted variably through its system bores and elongated hole (Siegmund).
- Table extension (Siegmund).
- Siegmund describes System 28 as ideal for light to heavy components and designed for maximum clamping forces, multi-ton structures and high distortion forces.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Frequently Asked Questions
Do I need the left or the right version?
The two versions differ only in which side the stop is on: 280166.N has the stop on the left and 280167.N on the right. Siegmund lists the same size (276 x 85 x 750 mm, 27 mm material thickness) for both and recommends this square as a pair.
Can the 750 G square be used as a table extension?
Yes. Siegmund says the 750 G square can be fixed and variably adjusted through its system bores and elongated hole and can also be used as a table extension. It is made from GGG40 ductile cast iron.
Will it fit other 28 mm welding tables?
Yes, if the table has Ø28 mm bores on a 100 mm grid. Check the bore diameter and grid before ordering. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
Related parts
- System 28 Stop and Clamping Square 500 G
- System 28 Stop and Clamping Square 300 G
- System 28 Stop and Clamping Square 800 GK
- System 28 bolts
- All Siegmund System 28 squares
Ships across Canada from 5 Industrial Rd, St. Marys, ON N4X 1G2, or pick up from our warehouse. Email sales@bthsales.ca or call +1-519-461-1381 with questions or for a freight quote.
