SIEGMUND SYSTEM 16 - SUB TABLE BOXES WITH DRAWERS

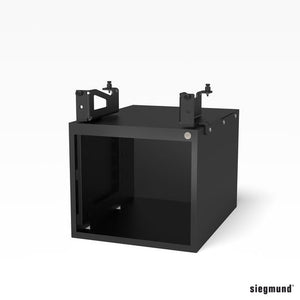

The Siegmund System 16 Sub Table Box (ST Box, 160990) adds lockable drawer storage under a Siegmund System 16 welding table. Siegmund states "Table size 1000x500 mm not compatible" for 160990, so it does not fit 1000x500 mm System 16 tables. Basic and PLUS tables need a special mounting, so they take the Basic version (161990) or the PLUS version (162990). Made in Germany.
Technical Data:
|
Item No.: 160990
Sub Table Box
| Length (a) |
630 mm |
| Width (b) |
485 mm |
| Height (c) |
430 mm |
| Weight |
28,5 kg |
| Load capacity |
100 kg |
Product description
The Siegmund ST Box enables the creation and storage of tools for easy access when required.
The ST Box has a total maximum load capacity of approx. 100 kg. Each drawer carries a maximum load of approx. 50 kg.
The design is totally enclosed to protect the contents from weld spatters and dirt.
Regardless of table size and ribbing, the ST Box can be attached to every Siegmund welding table.
For Basic and PLUS tables a special mounting is required.
Self assembly instructions are provided and you can easily attach the assembled ST Box to your welding table.
Table size 1000x500 mm not compatible
‐ powder coated finish
‐ 360 mm space for drawers
‐ lockable
‐ incl. two keys
Item No.: 160990.2
Set Sub Table Box incl. 3 drawers
| Length (a) |
630 mm |
| Width (b) |
485 mm |
| Height (c) |
430 mm |
| Weight |
47,5 kg |
| Load capacity |
100 kg |
Product description
The Siegmund ST Box enables the creation and storage of tools for easy access when required.
The ST Box has a total maximum load capacity of approx. 100 kg. Each drawer carries a maximum load of approx. 50 kg.
The design is totally enclosed to protect the contents from weld spatters and dirt.
Regardless of table size and ribbing, the ST Box can be attached to every Siegmund welding table.
For Basic and PLUS tables a special mounting is required.
Will be delivered pre-assembled.
Table size 1000x500 mm not compatible
‐ incl. drawers (1x 004220, 1x 004225, 1x 004230)
‐ powder coated finish
‐ lockable
‐ incl. two keys
‐ drawer pull-out length 500 mm
|
Item No.: 160990.1
Set Sub Table Box incl. 2 drawers
| Length (a) |
630 mm |
| Width (b) |
485 mm |
| Height (c) |
430 mm |
| Weight |
42,5 kg |
| Load capacity |
100 kg |
Product description
The Siegmund ST Box enables the creation and storage of tools for easy access when required.
The ST Box has a total maximum load capacity of approx. 100 kg. Each drawer carries a maximum load of approx. 50 kg.
The design is totally enclosed to protect the contents from weld spatters and dirt.
Regardless of table size and ribbing, the ST Box can be attached to every Siegmund welding table.
For Basic and PLUS tables a special mounting is required.
Will be delivered pre-assembled.
Table size 1000x500 mm not compatible
‐ incl. drawers (2x 004230)
‐ powder coated finish
‐ lockable
‐ incl. two keys
‐ drawer pull-out length 500 mm
|
Compatibility
-
Siegmund System 16: Siegmund says the ST Box "can be attached to every Siegmund welding table" regardless of size and ribbing, but "Table size 1000x500 mm not compatible", and "For Basic and PLUS tables a special mounting is required" (Siegmund's separate PLUS box 162990 and Basic box 161990 are listed on bthsales.ca).
Related: System 16 Sub Table Boxes with Drawers for PLUS · System 16 Sub Table Boxes with Drawers for Basic · All System 16 sub table boxes
Frequently Asked Questions
Does the ST Box fit a 1000x500 mm table?
No. Siegmund states "Table size 1000x500 mm not compatible" for 160990.
Which version do I need for a Basic or PLUS table?
Siegmund says Basic and PLUS tables need a special mounting. Use the Basic version 161990 or the PLUS version 162990 instead.
How much weight do the drawers hold?
Siegmund lists a total maximum load capacity of approx. 100 kg for the ST Box, with each drawer carrying approx. 50 kg.
