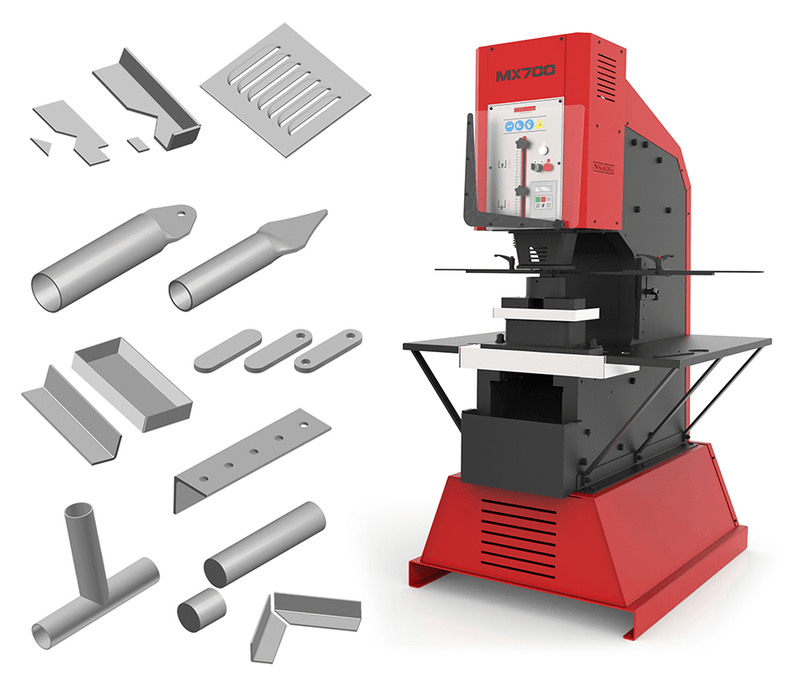

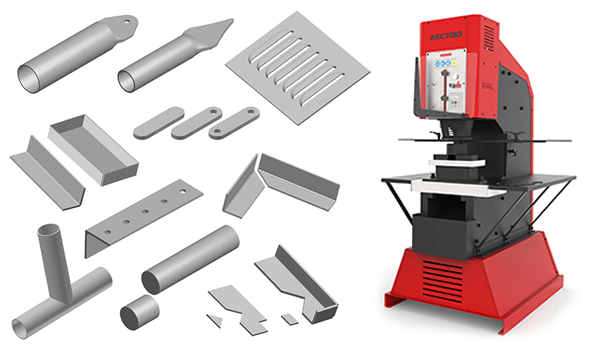

The Nargesa MX700 is a 70-ton hydraulic punching and shearing machine (ironworker) with a 350 mm neck, 160 mm punch stroke and a 600 × 350 mm table. It punches, folds, cuts, notches pipe and embosses using more than 40 standard tools, so it suits fabrication shops that want one versatile machine.
Key specs
| Hydraulic force | 70 tons |
|---|---|
| Neck (throat) | 350 mm (13.8 in) |
| Punch stroke | 160 mm (6.3 in) |
| Table | 600 × 350 mm (23.6 × 13.8 in) |
| Speeds | 9 mm/s working, 14 mm/s return |
| Motor | 5.5 kW (7.5 HP) |
| Power supply | 400 V three-phase |
| Control | Digital display, part and stroke counter, alarm diagnosis |
| Tool change | 30 seconds max. |
| Machine dimensions | 1130 × 1370 × 2060 mm (44.5" × 53.9" × 81.1") |
| Weight | 2,000 kg (4,409 lb) |
What's included
- Punch fitting nut and die base holder
- Swinging front safety guard and safety pedal
- Delivered fully assembled on a palletized base
Options
- Round, square, oval and lock punches and dies
- Stripper die, folding tooling (170 mm and 350 mm), ventilation grill and pipe notching tooling
- Custom tooling made to order
Features and applications
Key Features
- 70-ton hydraulic punching force for demanding fabrication applications
- Multifunction machine for punching, shearing, bending, notching, embossing, and forming
- Large 350 mm (13.78") gooseneck accommodates oversized workpieces and tooling
- Long 160 mm (6.30") ram stroke increases application flexibility
- Fast tooling changes in less than 30 seconds
- Oversized 600 × 350 mm (23.62" × 13.78") worktable provides excellent workpiece support
- Digital display with stroke counter and production parts counter
- Integrated alarm diagnostics system for simplified troubleshooting
- Foot pedal operation with swinging front safety guard
- Compatible with more than 40 standard and custom tooling options
- Delivered fully assembled and ready for installation
- Manufactured entirely in Spain
Applications
The Nargesa MX700 is designed for fabrication facilities that require one machine capable of performing multiple metalworking operations with minimal setup.
Typical applications include:
- Punching flat bar, angle, tube, channel, UPN, IPN, and structural profiles
- Pipe notching and fish-mouth cutting
- Sheet metal cutting and bending
- Embossing and stamping
- Ornamental ironwork fabrication
- Structural steel fabrication
- Fence, gate, and railing manufacturing
- Custom metal fabrication
- Industrial production and manufacturing
Its large work area and extensive tooling compatibility make the MX700 ideal for shops producing everything from one-off custom parts to high-volume production components.
Why Choose the Nargesa MX700?
Modern fabrication shops often require multiple operations on a wide variety of materials without dedicating valuable floor space to separate machines. The MX700 combines the capabilities of several fabrication systems into one powerful hydraulic workstation.
Its high punching capacity, oversized work area, and extensive tooling options allow fabricators to complete a broad range of operations efficiently while reducing setup time and improving workflow.
Key advantages include:
- Combines multiple fabrication processes into one machine
- Powerful 70-ton hydraulic punching capacity
- Large gooseneck and extended stroke support oversized workpieces
- Fast tooling changes improve productivity
- Compatible with a wide range of standard and custom tooling
- Digital production monitoring and diagnostic system
- Heavy-duty construction for continuous industrial use
- Delivered fully assembled for quick installation
For fabrication shops seeking a versatile hydraulic punching and shearing machine capable of handling demanding production work, the MX700 offers industrial performance, flexibility, and long-term reliability.
Video
Capacity charts and documents
Compare Nargesa models
- Nargesa MX340G CNC 40-ton punching machine
- Nargesa PI85 hydraulic press for locks
- Nargesa BM25 vertical broaching machine
- Nargesa PP200CNC 20-ton horizontal press brake
- All Nargesa machines
Frequently Asked Questions
What can the MX700 do?
Punch sheet, flat bar, pipe, angle and channel; fold, cut, notch pipe, inlay and emboss. Nargesa offers more than 40 standard tools and makes custom tooling on request.
What power does the MX700 need?
Nargesa specifies a 5.5 kW (7.5 HP) motor on a 400 V three-phase supply. Confirm your shop’s voltage with BTH Sales before ordering.
Which tooling comes with the MX700, and which is optional?
Nargesa equips the MX700 with its punching tool: the fitting nut for punches and the base holder for dies. All other tooling is optional, so you equip the machine for your jobs. Nargesa's catalogue lists round, square, oval and rectangular punches and dies (other sizes made on request), plus folding tooling (170 and 350 mm), angle cutting, round bar cutting, pipe notching (Ø 16 to 60 mm) and corner-rounding tooling.
How fast is a tool change?
Nargesa states 30 seconds maximum.
How long does delivery take?
BTH Sales ships across Canada from St. Marys, ON. This machine has a 4–6 week lead time; contact us for an exact date.
