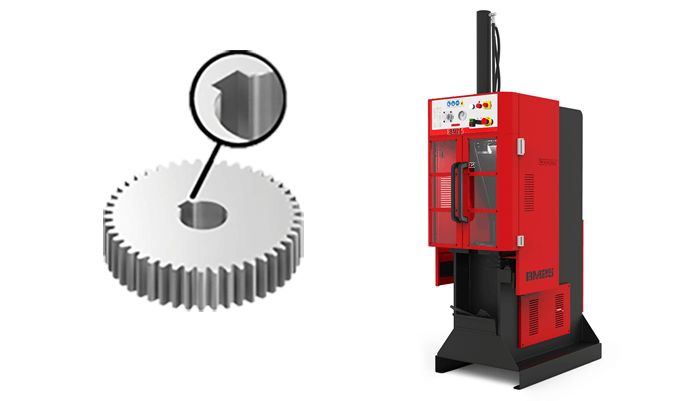

The Nargesa BM25 is a vertical hydraulic broaching machine that cuts internal keyways from 2 mm up to 25 mm (1") in sprockets, pulleys, gears and bearings. Its 300 mm neck takes parts up to 600 mm in diameter, and setup takes about a minute, so it suits machine shops doing small and medium production.
Key specs
| Max. broaching capacity | 25 mm (1") |
|---|---|
| Neck | 300 mm (11.8 in) (parts up to 600 mm (23.6 in) diameter) |
| Speeds | 24 mm/s working, 54 mm/s return |
| Hydraulic tank | 25 L |
| Motor | 2.2 kW (3 HP) |
| Power supply | 230/400 V three-phase |
| Control | Control panel with pressure regulator, manometer and pressure-to-tons chart |
| Machine dimensions | 750 × 1240 × 2400 mm (29.5 × 48.8 × 94.5 in) |
| Weight | 850 kg (1,874 lb) |
What's included
- Part-positioning tooling fixed to the work table
- LED table lighting and polycarbonate front doors
- Palletized base for moving the machine
Options
- Keyway broaches 2–25 mm and 1/16"–1", including TiN/TiAlN-coated
- Polygonal broaches (square, rectangle, hexagon)
- F114 steel guide bushings (H8 tolerance)
Features and applications
Key Features
- 10-ton hydraulic broaching force for internal keyway and profile machining
- Maximum broaching capacity of 25 mm (1 inch)
- Keyway capacity from 2 mm to 25 mm
- Produces internal keyways, slots and grooves
- Capable of producing square, rectangular and hexagonal profiles
- Multiple keyways can be produced from the same bore
- 600 mm (23.62") maximum stroke
- 300 mm (11.81") throat depth
- Accommodates workpieces up to approximately 600 mm (23.62") in diameter
- Fast setup time of approximately one minute
- Simple manual operation with hydraulic pressure control
- Pressure gauge and pressure-to-tonnage conversion chart
- Rigid welded and machined steel monoblock construction
- Adjustable workpiece positioning tooling included
- 420 × 420 mm (16.54 × 16.54") worktable
- Metric and imperial broaching capability
- Optional TiN- and TiAlN-coated broaches
- Optional guide bushings for improved broach alignment
- Can also function as a 10-ton hydraulic press
- Suitable for bearing, bushing and seized-component removal
- Integrated LED work lighting
- Removable chip collection drawer
- Polycarbonate safety guards with viewing windows
- Compact design suitable for positioning alongside lathes, CNC machines and machining centers
- Designed for small and medium production runs
- Manufactured in Spain by Nargesa
Applications
The BM25 is designed for internal broaching applications where accurate keyways or profiles need to be produced in pre-drilled components.
Typical applications include:
- Keyway machining
- Sprocket keyways
- Pulley keyways
- Gear keyways
- Bearing and bushing machining
- Internal slots and grooves
- Square internal profiles
- Rectangular internal profiles
- Hexagonal internal profiles
- Multiple keyways from a single bore
- Repair and maintenance machining
- Replacement-component manufacturing
- Small production runs
- Medium production runs
- General hydraulic pressing
- Bearing and bushing installation and removal
- Seized-component removal
- Straightening operations
The BM25 is particularly useful for maintenance and machine shops where internal keyways may be required regularly but investing in a large CNC broaching system would not be practical.
Why Choose the Nargesa BM25?
The BM25 provides a practical alternative to more complex machining equipment when the primary requirement is producing internal keyways and profiles.
Its 10-ton hydraulic system, 25 mm broaching capacity and 600 mm stroke provide substantial machining capability while maintaining a relatively compact footprint. The quick setup and manual controls also make it suitable for both repeat production and one-off repair work.
Another advantage is its versatility. When it is not being used for broaching, the BM25 can be used as a 10-ton hydraulic press, allowing the same machine to perform additional maintenance and fabrication tasks.
Key advantages include:
- Accurate internal keyway and profile machining
- 10 tons of hydraulic force
- Up to 25 mm (1") broaching capacity
- Fast approximately one-minute setup
- Simple manual operation
- Large 600 mm stroke
- Large 300 mm throat depth
- Supports workpieces up to approximately 600 mm diameter
- Metric and imperial tooling compatibility
- Versatile hydraulic press functionality
- Compact workshop-friendly design
- Suitable for production and maintenance applications
Video
Capacity charts and documents
Compare Nargesa models
- Nargesa MX700 70-ton hydraulic punching machine
- Nargesa MX340G CNC 40-ton punching machine
- Nargesa PI85 hydraulic press for locks
- Nargesa PP200CNC 20-ton horizontal press brake
- All Nargesa machines
Frequently Asked Questions
What keyway sizes can the BM25 cut?
From 2 mm up to 25 mm (1"). Nargesa supplies broaches in metric and American standard sizes.
What power does the BM25 need?
Nargesa specifies a 2.2 kW (3 HP) motor on a 230/400 V three-phase supply. Confirm your shop’s voltage with BTH Sales before ordering.
Can it do more than broaching?
Yes. Nargesa says it also works as a press for freeing seized parts and fitting or removing bearings.
How big a part can it handle?
The 300 mm neck takes parts up to 600 mm in diameter.
How long does delivery take?
BTH Sales ships across Canada from St. Marys, ON. This machine has a 4–6 week lead time; contact us for an exact date.
