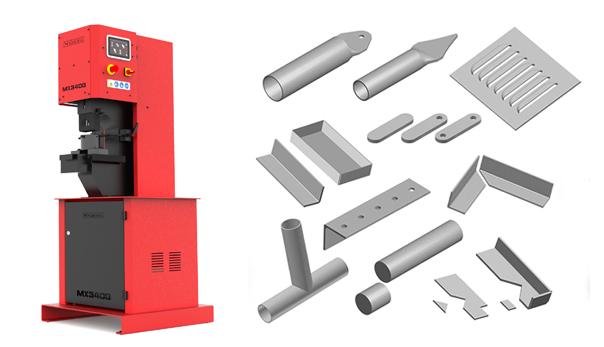

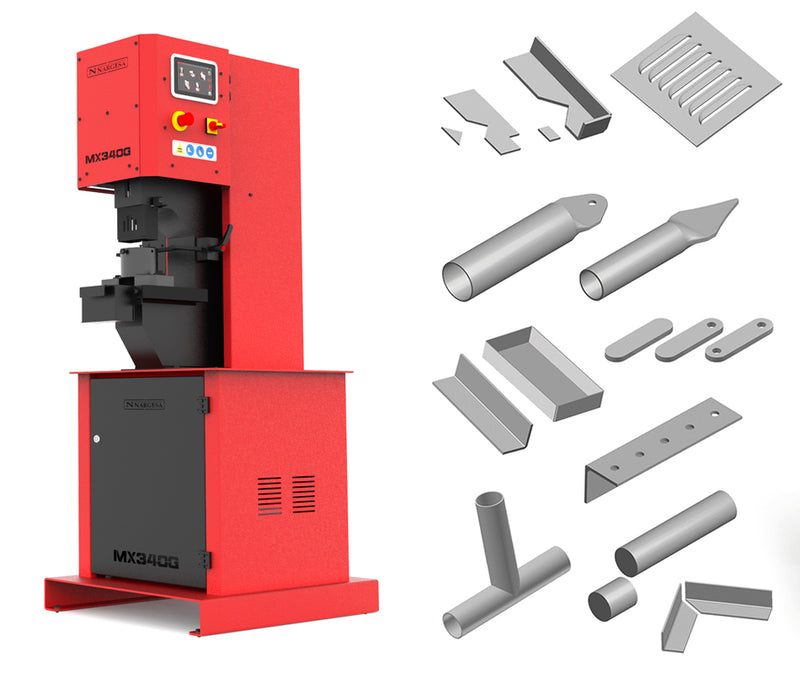

The Nargesa MX340G CNC is a 40-ton hydraulic punching and shearing machine with an ESA S820 CNC, a vertical (non-swinging) ram, 100 mm stroke and 180 mm throat. It punches, bends, shears, notches and deep draws with more than 40 standard dies, and calculates tonnage automatically.
Key specs
| Force | 40 tons |
|---|---|
| Punch stroke | 100 mm (3.94 in) |
| Throat depth | 180 mm (7.09 in) |
| Worktable | 245 × 265 mm (9.65 × 10.4 in) |
| Speeds | 7.1 mm/s working, 9.3 mm/s return |
| Motor | 2.2 kW (3 HP) |
| Power supply | 230/400 V three-phase (other voltages available) |
| CNC controller | ESA S820, 7" touchscreen, 10,000 programs, automatic tonnage calculation |
| Machine dimensions | 686 × 898.5 × 1758 mm (27 × 35.4 × 69.2 in) |
| Weight | 628 kg (1,385 lb) |
What's included
- Punch fitting nut and die base holder
- Delivered fully assembled
Options
- Punches and dies: round, square, oval and rectangular punches and dies; punch and die for locks; stripper tooling 90° adjustable 100 × 100
- Cutting tooling: flat bar cutting tooling 100 × 10 mm, round bar cutting tooling and angle cutting tooling
- Folding and forming tooling: folding tooling 170 mm, tooling for punching angle and U profile, and flattening extractor
- Pipe and bar end tooling: pipe notching tooling, pipe ends fencing tooling, flat bar round end tooling and tooling to round off corners
- Decorative tooling: arrow tooling for metal sheet, arrows tooling for pipes and ventilation grill tooling
- Custom tooling made to order
Tooling capacities
Nargesa's published maximums for the optional MX340G tooling. Imperial values are converted.
| Angle cutting tooling | Straight cut 60 × 60 mm (2.36 × 2.36 in); mitre cut 50 × 50 mm (1.97 × 1.97 in) |
|---|---|
| Flat bar cutting tooling 100 × 10 mm | Sheet or flat bar up to 100 × 10 mm (3.94 × 0.39 in), from 0.8 mm thick |
| Round bar cutting tooling | Solid round bar Ø 3–35 mm (0.12–1.38 in) |
| Stripper tooling 90° adjustable 100 × 100 | Up to 100 × 100 × 4 mm (3.94 × 3.94 × 0.16 in) |
| Pipe notching tooling | Pipe Ø 16–60 mm (0.63–2.36 in) |
| Tooling for punching angle and U profile | Hole Ø 2–28 mm (0.08–1.1 in) |
| Punch and die for locks | Sheet up to 6 mm (0.24 in) |
| Ventilation grill tooling | 100 × 20 mm (3.94 × 0.79 in) openings in sheet up to 2 mm (0.08 in) |
Punching has no fixed maximum hole size: it depends on the machine's force. Nargesa's tonnage formula is tons = hole perimeter (mm) × material thickness (mm) × material strength (kg/mm²) ÷ 1000, with 45 kg/mm² for mild steel. Nargesa's example: an 18 mm round hole in 10 mm mild steel needs about 25.4 tons. Keep the hole diameter larger than the material thickness.
Features and applications
Key Features
- 40-ton hydraulic punching force for demanding fabrication applications
- ESA S820 CNC touchscreen control for intuitive machine operation
- Automatic tonnage calculation helps optimize punching performance
- Programmable bending angle control improves forming accuracy
- Precision vertical ram movement ensures repeatable results
- 180 mm (7.09") gooseneck accommodates larger workpieces
- 100 mm (3.94") hydraulic stroke supports a wide range of tooling
- Tool changes in less than 30 seconds to minimize downtime
- ECO Mode reduces energy consumption during operation
- Industry 4.0 connectivity supports remote diagnostics and machine monitoring
- Compatible with standard and custom tooling configurations
- Heavy-duty welded steel construction for long service life
- Manufactured entirely in Spain
Applications
The Nargesa MX340G CNC is designed to perform multiple metalworking operations using interchangeable tooling, allowing fabricators to complete a variety of processes on a single machine.
Typical applications include:
- Punching sheet metal and flat bar
- Pipe and structural profile punching
- Bending and forming operations
- Cutting and shearing flat material
- Tube and pipe notching
- Embossing and stamping
- Ornamental ironwork and fence manufacturing
- Structural steel fabrication
- Architectural metal fabrication
- General industrial metalworking
Its CNC-controlled operation and rapid tooling changes make the MX340G well suited for both low-volume custom fabrication and high-volume production environments where flexibility and repeatability are essential.
Why Choose the Nargesa MX340G CNC?
The MX340G is designed for fabricators who need more than a dedicated punch press. By combining punching, bending, cutting, notching, stamping, and forming into one CNC-controlled machine, it reduces the need for multiple pieces of equipment while increasing productivity and shop efficiency.
Its intelligent CNC automation simplifies complex operations, while rapid tooling changes and compatibility with numerous tooling options provide the flexibility to handle a wide range of fabrication projects with minimal downtime.
Key advantages include:
- Performs multiple fabrication operations on a single machine
- 40-ton hydraulic capacity for demanding metalworking applications
- CNC automation improves accuracy and repeatability
- Automatic tonnage calculation reduces operator setup time
- Fast tooling changes increase productivity
- Industry 4.0 connectivity supports modern manufacturing environments
- Compatible with a broad range of standard and custom tooling
- Manufactured in Spain with heavy-duty industrial construction
Whether producing ornamental ironwork, structural steel components, industrial assemblies, or custom fabricated parts, the MX340G delivers the precision, versatility, and reliability professionals expect from a modern CNC hydraulic punching machine.
