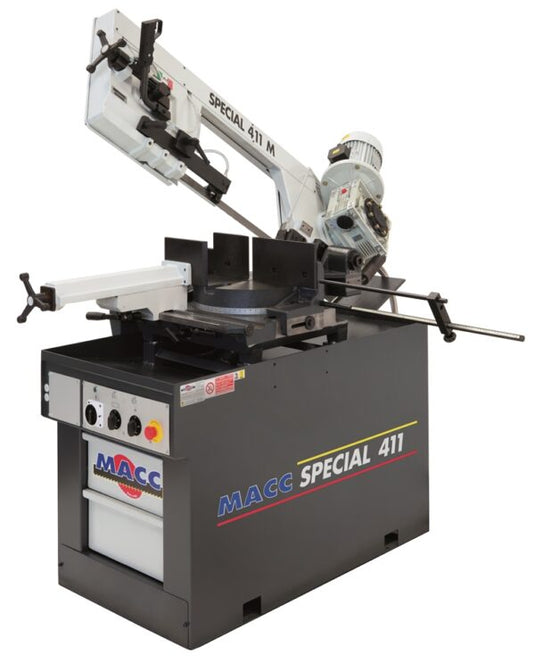

MACC: Special 411 M Bandsaw

Vendor MACC
Regular price $15,410.00 CAD
Sale price $15,410.00 CAD Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.

BTH carries the MACC Special 411 M for shops whose bar and tube have outgrown the smaller manual saws. It's the largest manual saw in the MACC range we carry, taking round tube up to 300 mm (11.8 in) at a straight cut and mitring from 45° left to 60° right.

Choosing the 411 M

Step up from the 335 M when your sections run past 260 mm (10.2 in) round. The 411 CSO adds hydraulic controlled descent, and the 411 M/S runs the vice, the cut and the bow return from a start button. All three take the same sizes and run on three-phase power.

Cutting capacity

MACC Special 411 M cutting capacity by angle
Angle Round tube Square tube Rectangular tube
Straight (0°) 300 mm (11.8 in) 280 mm (11.0 in) 200 x 400 mm (7.9 x 15.7 in)
45° left 180 mm (7.1 in) 160 mm (6.3 in) 110 x 180 mm (4.3 x 7.1 in)
45° right 230 mm (9.1 in) 215 mm (8.5 in) 140 x 225 mm (5.5 x 8.9 in)
60° right 140 mm (5.5 in) 140 mm (5.5 in) 140 x 140 mm (5.5 x 5.5 in)

Millimetres are MACC's figures. Inches are conversions, rounded to one decimal.

Specs and standard equipment

  • Mitre range: 45° left to 60° right.
  • Cutting thickness: 1.2 mm.
  • A two-speed motor drives the blade through a reducer with a bronze gear and a hardened, ground worm screw.
  • The head pivots on a bolt with adjustable tapered bearings, so there's no play.
  • Sturdy blade guides with sealed bearings and adjustable widia (tungsten-carbide) tips.
  • Blade tension is set by turning a handwheel and guaranteed by an electro-mechanical switch.
  • A vice with a quick-approach device.
  • A pedestal with a chip collection tray and a removable coolant tank.
  • Set up to be moved with a pallet truck.
  • An adjustable stop for cuts of the same size.
  • A 24 V low-voltage electrical system.
  • A 0.06 kW pump for blade coolant.
  • Safety guards on the flywheel housing, the control handle and the blade.

Power

The 411 M runs on 460 V three-phase with a BTH-supplied transformer to suit your shop. Its blade is driven by a two-speed motor. If you're not sure what your shop has, give us a call and we'll work it out with you.

What comes with it

Your saw arrives with 3 spare blades and coolant. If you'd like to vary the blade speed, MACC offers a 20–90 m/min speed variator on request, and we can quote it with your saw.

Owning a 411 M in Canada

The 411 M is a heavy saw, and installation is available on request. We keep parts and blades for it here in Canada, and it's covered by a 12-month warranty. For service, our own technician comes out, and when we can't send one, we'll find a local technician near you who can do warranty-approved work. Training is available, and so is financing, so ask us.

Getting a 411 M delivered

The 411 M is a big saw, so tell us about access to your shop when you ask for a delivery estimate. Email sales@bthsales.ca or call 519-461-1381. Orders ship promptly once confirmed, and we'll send tracking when it leaves.

We're a family-owned team in St. Marys, Ontario, in business since 2001, and MACC's exclusive Canadian importer. Ask about our school, military and student discounts.

Frequently Asked Questions

How do I move the MACC Special 411 M into place?

MACC sets the 411 M up to be moved with a pallet truck. Call us at 519-461-1381 before delivery if you'd like to talk through access to your shop.

How is coolant handled on the MACC Special 411 M?

The pedestal holds a removable coolant tank and a chip collection tray, and a 0.06 kW electric pump feeds coolant to the blade. Your saw arrives with coolant.

How is blade tension set on the MACC Special 411 M?

You set it by turning a handwheel, and an electro-mechanical switch guarantees the tension.

Can you install the MACC Special 411 M in my shop?

Installation is available on request. Tell us about your shop when you order, and ask about training while you're at it, since that's available too.
