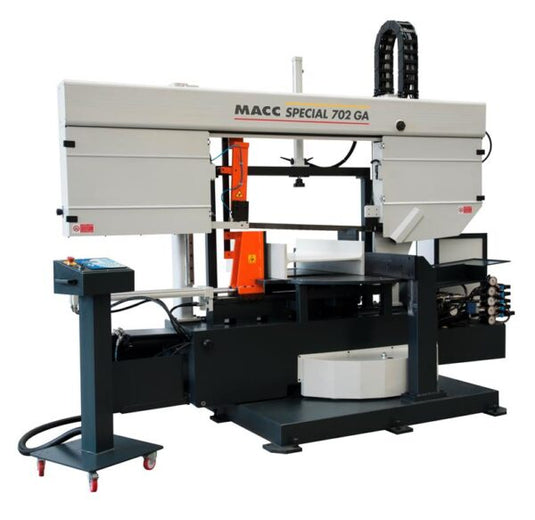

MACC: Special 702 GA Bandsaw

Vendor MACC
Regular price $135,325.00 CAD
Sale price $135,325.00 CAD Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.

BTH carries the MACC Special 702 GA for big sections and programmed mitres. It rotates automatically for programmed mitre cuts from 60° left to 45° right, and it takes round and square tube up to 550 mm (21.7 in) at a straight cut.

Is the 702 GA the right fit?

Choose the 702 GA over the 700 DI if you want the saw to set programmed mitre angles for you, and if you need the extra room: 550 mm (21.7 in) round tube at a straight cut, against 525 mm (20.7 in). For straight cuts only, the 700 shares the same twin-column frame.

Cutting capacity

MACC Special 702 GA cutting capacity by angle
Angle Round tube Square tube Rectangular tube
Straight (0°) 550 mm (21.7 in) 550 mm (21.7 in) 550 x 700 mm (21.7 x 27.6 in)
45° left 460 mm (18.1 in) 460 mm (18.1 in) 550 x 460 mm (21.7 x 18.1 in)
60° left 270 mm (10.6 in) 270 mm (10.6 in) 500 x 270 mm (19.7 x 10.6 in)
45° right 460 mm (18.1 in) 460 mm (18.1 in) 550 x 460 mm (21.7 x 18.1 in)

Millimetres are MACC's figures. Inches are conversions, rounded to one decimal.

Specs and standard equipment

  • The saw arc slides vertically on two columns, which gives the cutting unit its stiffness and accuracy.
  • Blade motor: 4 kW.
  • Control unit motor: 1.5 kW.
  • Coolant pump: 0.12 kW.
  • Flywheel diameter: 520 mm.
  • Blade size (length x width x thickness): 5540 x 41 x 1.3 mm.
  • Cutting thickness: 1.5 mm.
  • Cuts up to 60° left and 45° right.
  • Coolant tank: 50 l.
  • A brush that cleans the blade.
  • Automatic rotation for programmed mitre cuts.

Power

The 702 GA runs on 460 V three-phase with a BTH-supplied transformer to suit your shop. Besides the 4 kW blade motor, it has a 1.5 kW control unit motor and a 0.12 kW coolant pump. If you're not sure what your shop has, give us a call and we'll work it out with you.

What comes with it

Along with the saw, you get 3 spare blades and coolant. On request, MACC can add a chip extractor, a vertical pressing device or micro-lubrication, and we can quote any of them with your saw.

Owning a 702 GA in Canada

Training is available on the 702 GA, which helps with its programmed mitre cutting. Service comes from our own technician, and if we can't send one, we'll find you a local technician who can do warranty-approved work. Its parts and blades are kept here in Canada. It comes with a 12-month warranty, installation is available on request, and you can ask us about financing, which is available.

Getting a 702 GA to your shop

We're MACC's exclusive Canadian importer, a family-owned team in St. Marys, Ontario, in business since 2001.

Send your location to sales@bthsales.ca or call 519-461-1381, and we'll put together a delivery estimate. Orders ship promptly once confirmed, and we'll send tracking when it leaves. Schools, military members and students can ask about our discounts.

Frequently Asked Questions

What does programmed mitre cutting mean on the MACC Special 702 GA?

MACC builds the 702 GA with automatic rotation for programmed mitre cuts, so the head rotates to the programmed angle on its own. It mitres from 60° left to 45° right.

How big a section can the MACC Special 702 GA cut?

At a straight cut, it takes round and square tube up to 550 mm (21.7 in) and rectangular tube up to 550 x 700 mm (21.7 x 27.6 in). At 45° right it takes round tube up to 460 mm (18.1 in), and at 60° left up to 270 mm (10.6 in).

What can be added to the MACC Special 702 GA?

On request, MACC can add a chip extractor, a vertical pressing device or micro-lubrication, and we can quote any of them with your saw.

Is training available for the MACC Special 702 GA's programmed mitre cutting?

Yes, training is available on the 702 GA, and installation is available on request. Ask us when you order.
