Siegmund System 16 Bolts

  • Sale
  • Regular price $78.00
Shipping calculated at checkout.



The range of Siegmund System 16 Bolts are compatible with any 16mm fixture table. Made in Germany to the highest of quality assurance. You always know that with Siegmund tooling, you will never be let down.





SIEGMUND SYSTEM 16 BOLTS



Technical Data:

Item No.: 160510

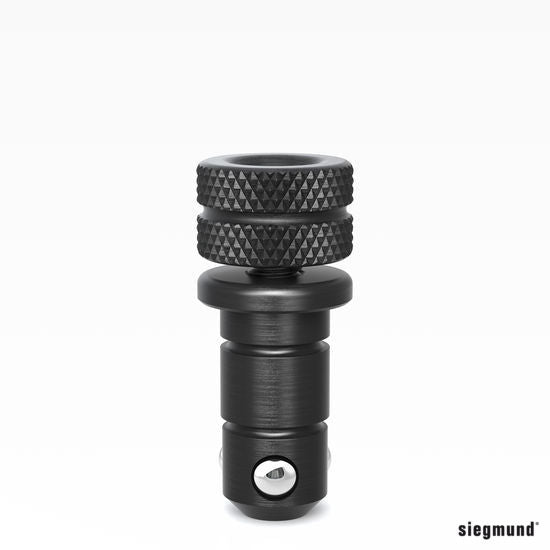

Fast Clamping Bolt short ‐ burnished
Length (a)53 mm /Weight 0.08 kg /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel10 Nm
Tightening Torque Aluminum 2.5 Nm
Tensile Force 10 kN

Product description
Burnished Fast Clamping Bolt with twistlock, perfect connecting element between Siegmund components. It features especially large balls, which protect the bevel of the boreholes as a result of low surface pressure. The fourth ball located in the center reduces internal friction and strengthens the power of the handwheel. The new design of the bolt is not equipped with O-rings, but it still is easy to clean.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!
‐ for clamping 2 components
‐ burnished
‐ with screw top
‐ with hexagon socket (Size 4)

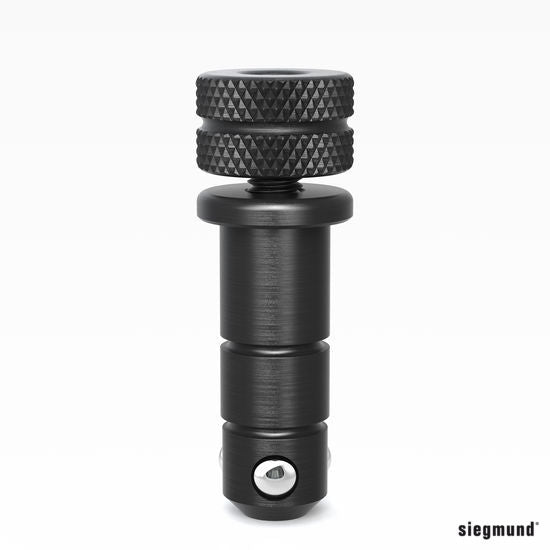

Item No.: 160512
Fast Clamping Bolt long ‐ burnished
Length (a)65 mm /Weight 0.1 kg   /Diameter16 mm
Shearing Force55 kN
Tightening Torque Steel10 Nm
Tightening Torque Aluminum 2.5 Nm
Tensile Force10 kN

Product description
Burnished Fast Clamping Bolt with twist lock, perfect connecting element between Siegmund components. It features especially large balls, which protect the bevel of the boreholes as a result of low surface pressure. The fourth ball located in the center reduces internal friction and strengthens the power of the handwheel. The new design of the bolt is not equipped with O-rings, but it still is easy to clean.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!
‐ for clamping 3 components
‐ burnished
‐ with screw top
‐ with hexagon socket (Size 4)

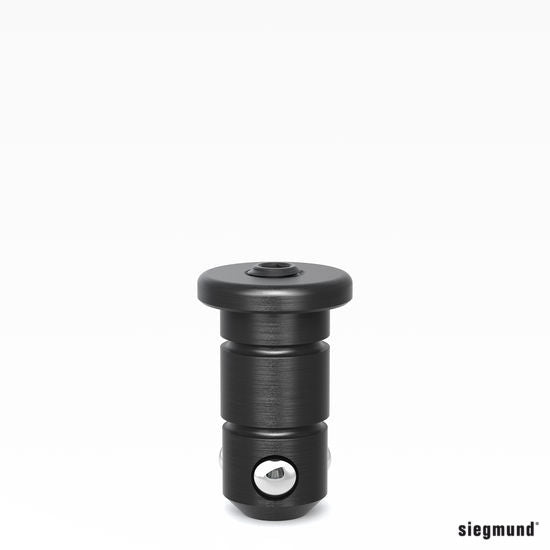

Item No.: 2-160522

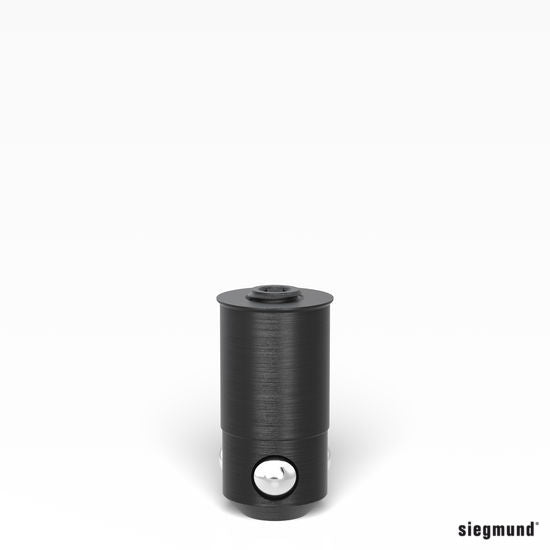

Fast Clamping Bolt flat short ‐ burnished
Length (a)36 mm /Weight 0.05 kg /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel 10 Nm
Tightening Torque Aluminum 2.5 Nm
Tensile Force10 kN

Product description
Flat Burnished Clamping Bolt, mainly used for clamping of elongated holes. Like the countersunk bolt, it reduces protrusion.

Ideal for a cordless screwdriver with up to 10 Nm turning moment.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!
‐ for clamping 2 components
‐ burnished
‐ with hexagon socket (Size 4)



Item No.: 160523

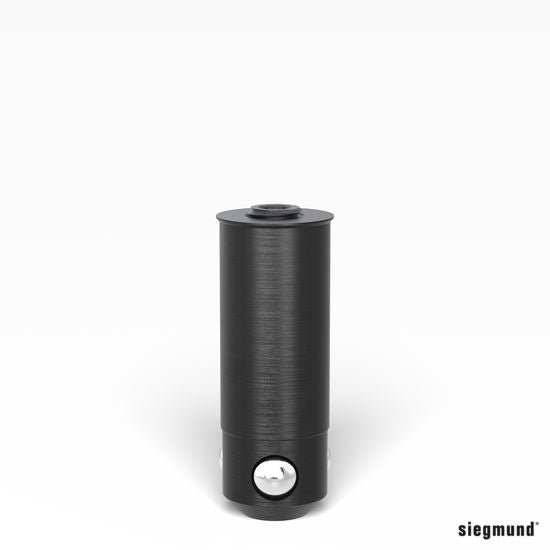

Fast Clamping Bolt flat long ‐ burnished
Length (a)48 mm /Weight 0.08 kg /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel10 Nm
Tightening Torque Aluminum2.5 Nm
Tensile Force10 kN

Product description
Flat Burnished Clamping Bolt, mainly used for clamping of elongated holes. Like the countersunk bolt, it reduces protrusion.

Ideal for cordless screwdriver with up to 10 Nm turning moment.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!
‐ for clamping 3 components
‐ burnished
‐ with hexagon socket (Size 4)

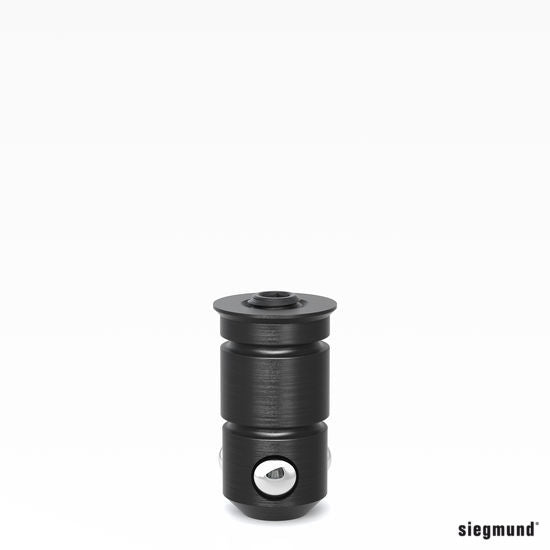

Item No.: 160528
Flush Mount Bolt short ‐ burnished
Length (a)31 mm  /Weight 0,04 kg/ Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel 10 Nm
Tensile Force 3 kN

Product description
Flush Mount Bolt, used as a hidden connection between Siegmund elements. Its design corresponds with other connecting bolts with four balls. Its head disappears into the borehole, to make it flush with the clamped component. The Flush Mount Bolt is not suitable for use in elongated holes.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!
‐ for clamping 2 components
‐ burnished
‐ with hexagon socket (Size 4)

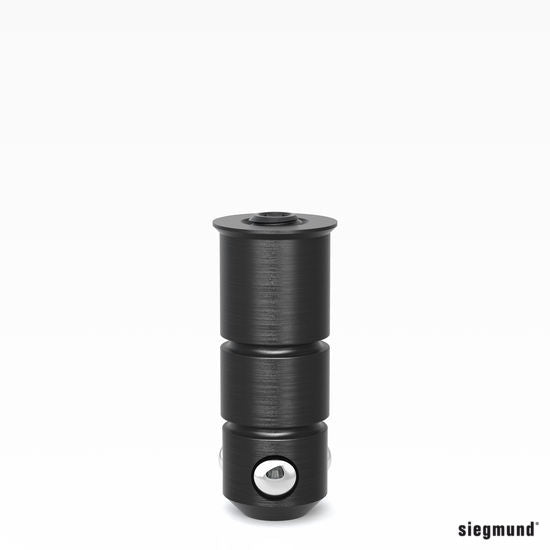

Item No.: 160529
Flush Mount Bolt long ‐ burnished
Length (a)43 mm /Weight 0.05 kg  /Diameter16 mm
Shearing Force 55 kN
Tightening Torque Steel10 Nm
Tensile Force3 kN

Product description
Flush Mount Bolt, used as a hidden connection between Siegmund elements. Its design corresponds with other connecting bolts with four balls. Its head disappears into the borehole, to make it flush with the clamped component. The Flush Mount Bolt is not suitable for use in elongated holes.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

‐ for clamping 3 components
‐ burnished
‐ with hexagon socket (Size 4)



Item No.: 160532
Universal Bolt short ‐ burnished
Length (a)59 mm /Weight 0.11 kg /Diameter 16 mm
Shearing Force 50 kN
Tightening Torque Steel 10 Nm
Tightening Torque Aluminum 2.5 Nm
Tensile Force10 kN

Product description
Burnished Universal Bolt (Locking Bolt), perfect connection element for Siegmund elements. It is used when elements of different material thickness are being interconnected. The clamping range of the short Universal Bolt is 22 to 28 mm. The long Universal Bolt has a clamping range of 34 to 40 mm. The large balls shift the center of pressure towards the outside, and prevent a displacement of the material due to low surface pressure, when there are high clamping forces in the direction of the borehole.

The Universal Bolt is clamped with the integrated handwheel or with a hex wrench 6 (Item No. 280852.1).

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!
‐ for clamping 2 components
‐ burnished
‐ with hexagon socket (Size 6)

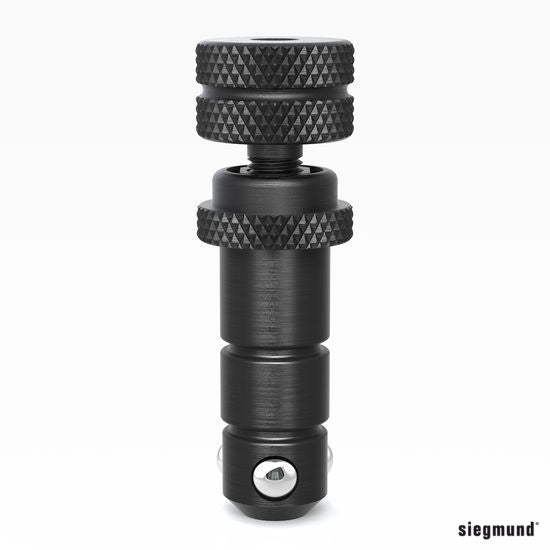

Item No.: 160533
Universal Bolt long ‐ burnished
Length (a )71 mm /Weight 0,12 kg /Diameter 16 mm
Shearing Force 50 kN
Tightening Torque Steel 10 Nm
Tightening Torque Aluminum 2.5 Nm
Tensile Force 10 kN

Product description
Burnished Universal Bolt (Locking Bolt), perfect connection element for Siegmund elements. It is used when elements of different material thickness are being interconnected. The clamping range of the short Universal Bolt is 22 to 28 mm. The long Universal Bolt has a clamping range of 34 to 40 mm. The large balls shift the center of pressure towards the outside, and prevent a displacement of the material due to low surface pressure, when there are high clamping forces in the direction of the borehole.

The Universal Bolt is clamped with the integrated handwheel or with a hex wrench 6 (Item No. 280852.1).

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!
‐ for clamping 3 components
‐ burnished
‐ with hexagon socket (Size 6)

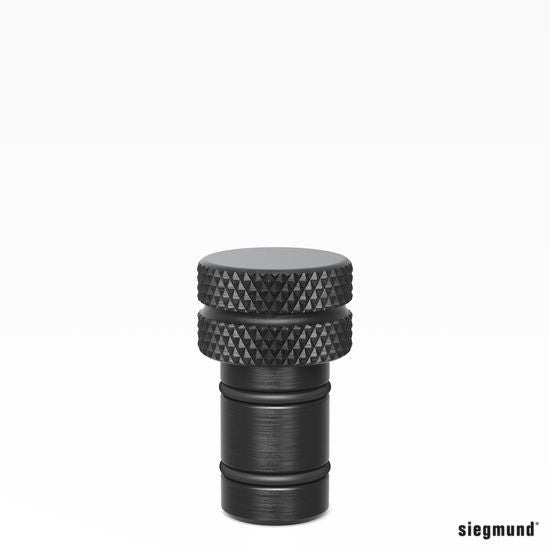

Item No.: 2-160540
Positioning Bolt ‐ burnished
Length (a)38 mm /Weight 0.07 kg /Diameter16 mm

Product description
Positioning Bolt, serves as an adjustment tool for squares that only require a clamping bolt for fastening, in order to cost-effectively substitute for a second clamping bolt. In addition, various squares can be formed by spading, e.g. 90° or 45°.

This picture shows an application example of a customer generated template.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!
‐ burnished



Item No.: 160560.N

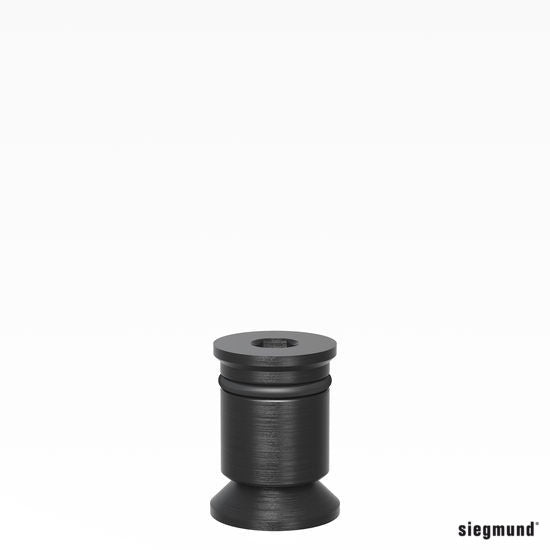

Connecting Bolt short ‐ nitrided
Length (a)25 mm /Weight 0.03 kg /Diameter16 mm
Shearing Force 50 kN
Tightening Torque Steel 15 Nm
Tensile Force 4 kN

Product description
Connecting Bolt, especially designed as a fixed long-term connection of large Siegmund Elements, e.g. tables or U-shaped squares.

The countersunk hexagon socket and the ability of the clamping bolt to center itself, enable easy assembly. The flat head and the flat bolt contain a hexagon socket for clamping.

The connecting bolt provides a sturdy screw Connection. The Connecting Bolt should not be used in elongated holes.
‐ for connecting 2 components
‐ nitrided
‐ with hexagon socket (At the top / At the bottom Size 6)

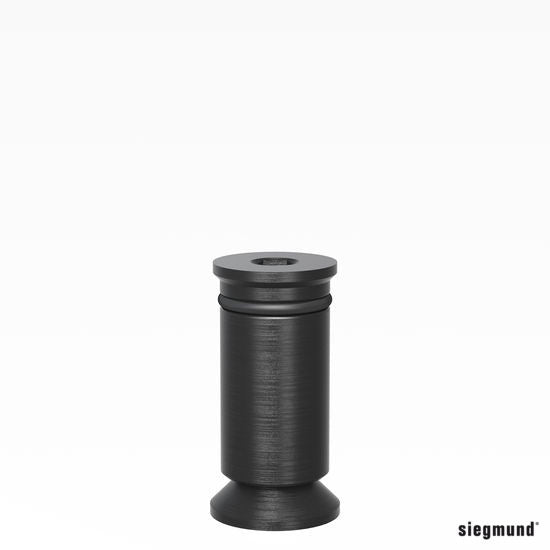

Item No.: 160561
Connecting Bolt long ‐ burnished
Length (a)37 mm /Weight 0.05 kg /Diameter 16 mm
Shearing Force 50 kN
Tightening Torque Steel 15 Nm
Tensile Force 4 kN

Product description
Burnished Connecting Bolt, especially designed as a fixed long-term connection of large Siegmund Elements, e.g. tables or U-shaped squares.

The countersunk hexagon socket and the ability of the clamping bolt to center itself, enable easy assembly. The flat head and the flat bolt contain a hexagon socket for clamping.

The connecting bolt provides a sturdy screw connection. The Connecting Bolt should not be used in elongated holes.
‐ for connecting 3 components
‐ burnished
‐ with hexagon socket (At the top / At the bottom Size 6)

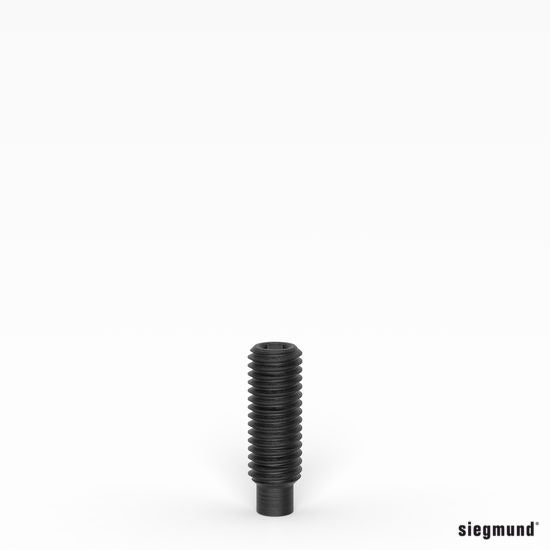

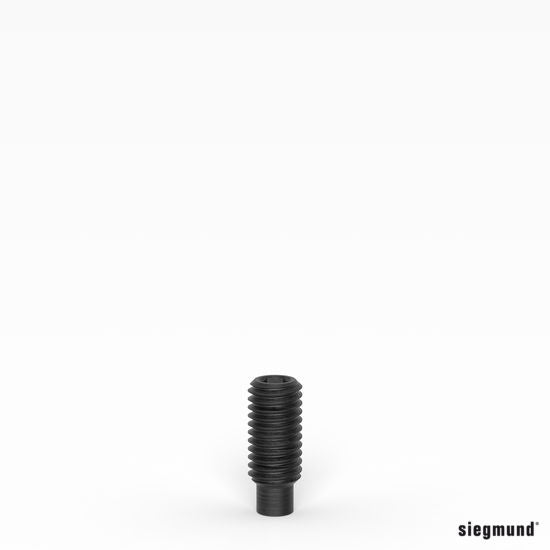

Item No.: 169075
Set screw for 160523
Weight 0.17 kg

Product description
‐ pack of 10



Item No.: 169085
Set screw for 160522
Weight 0.06 kg

Product description
‐ pack of 10

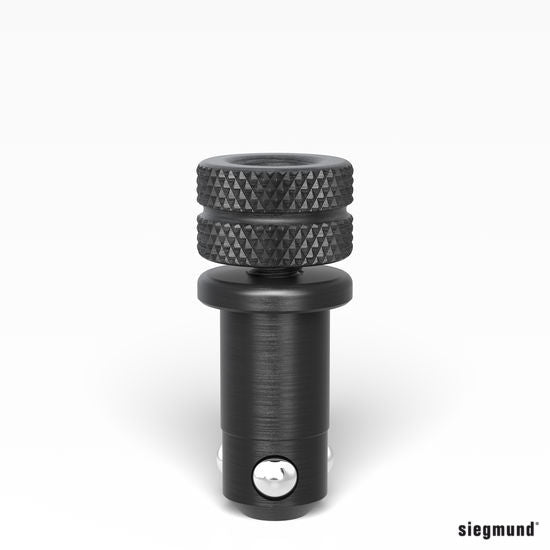

Item No.: 60511
Fast Clamping Bolt without slot double ‐ burnished
Length (a)53 mm /Weight 0.08 kg /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel10 Nm
Tightening Torque Aluminum 2.5 Nm
Tensile Force10 kN

Product description
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body.

The bolt without slot is particularly suitable for clamping aluminum profiles and is also still compatible with the entire Siegmund range.

The fast clamping bolt with twistlock is the ideal connecting element between Siegmund components.2

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Our recommendation when working with aluminum profiles.
Clamping torque dependent on the material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.
‐ for clamping 2 components
‐ burnished
‐ with screw top
‐ with hexagon socket (Size 4)

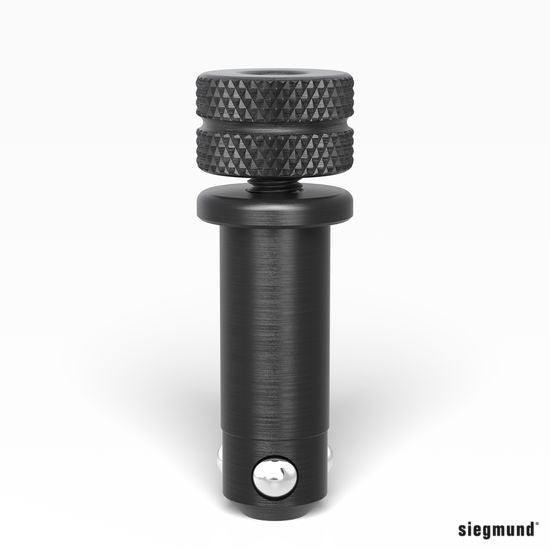

Item No.: 160513
Fast Clamping Bolt without slot triple ‐ burnished
Length (a)65 mm /Weight 0.1 kg /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel 10 Nm
Tightening Torque Aluminum 2.5 Nm
Tensile Force10 kN

Product description
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body.

The bolt without slot is particularly suitable for clamping aluminum profiles and is also still compatible with the entire Siegmund range.

The fast clamping bolt with twist lock is the ideal connecting element between Siegmund components.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Our recommendation when working with aluminum profiles.

Clamping torque dependent on the material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.
‐ for clamping 3 components
‐ burnished
‐ with screw top
‐ with hexagon socket (Size 4)

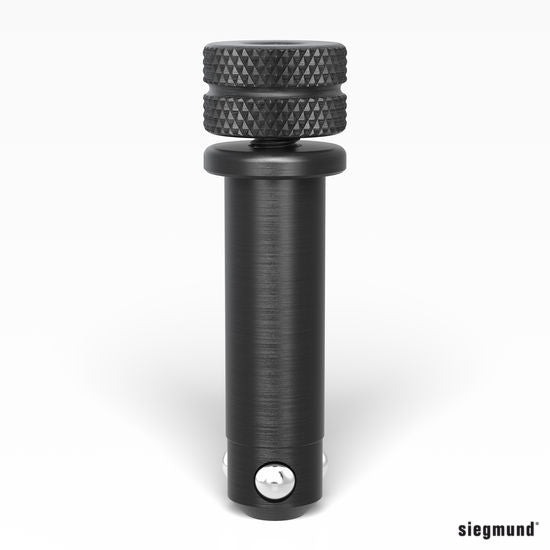

Item No.: 160515
Fast Clamping Bolt without slot quadruple ‐ burnished
Length (a)77 mm /Weight 0.12 kg /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel10 Nm
Tightening Torque Aluminum2.5 Nm
Tensile Force10 kN

Product description
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body.

The bolt without slot is particularly suitable for clamping aluminum profiles and is also still compatible with the entire Siegmund range.

The fast clamping bolt with twistlock is the ideal connecting element between Siegmund components.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Our recommendation when working with aluminum profiles. Clamping torque dependent on the material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.
‐ for clamping 4 components
‐ burnished
‐ with screw top
‐ with hexagon socket (Size 4)

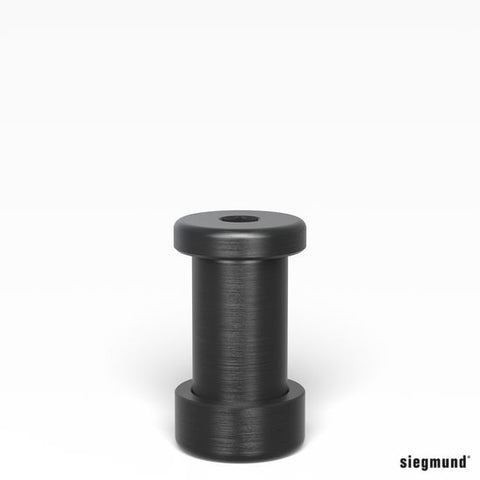

Item No.:160583
Connecting Bolt with collar double ‐ burnished
Length (a)39 mm /Weight 0,07 kg /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel 15 Nm
Tightening Torque Aluminum 15 Nm
Tensile Force3 kN

Product description
The connecting bolt was specially designed to serve as a fixed long-term connection between large Siegmund elements, e.g. tables, U-squares and aluminum profiles.

For a better fitting when connecting aluminum profiles, a special flat screw is used for clamping.

The bolt head is equipped with a 6 mm hexagonal bit and the special screw is equipped with a 4 mm hexagonal bit.

This connecting bolt is also suitable for use in elongated holes.

Especially suitable for aluminum.
Clamping torque dependent on the material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.
‐ for connecting 2 components
‐ burnished
‐ with hexagon socket (At the top Size 6 / At the bottom Size 4)



Item No.: 160584

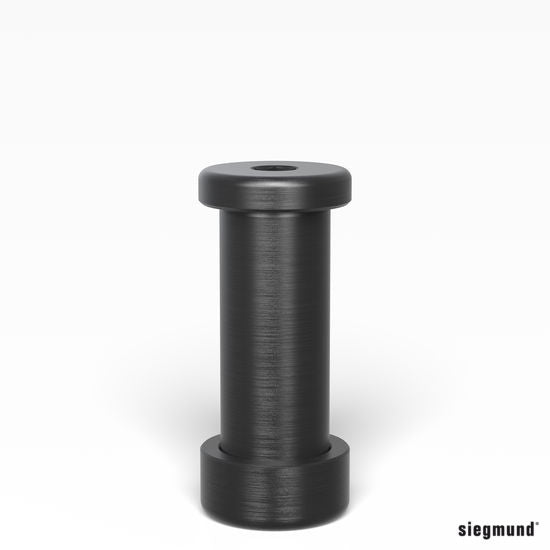

Connecting Bolt with collar triple ‐ burnished
Length (a)51 mm /Weight 0,09 kg /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel 15 Nm
Tightening Torque Aluminum 15 Nm
Tensile Force3 kN

Product description
The connecting bolt was specially designed to serve as a fixed long-term connection between large Siegmund elements, e.g. tables, U-squares and aluminum profiles.

For a better fitting when connecting aluminum profiles, a special flat screw is used for clamping.

The bolt head is equipped with a 6 mm hexagonal bit and the special screw is equipped with a 4 mm hexagonal bit.

This connecting bolt is also suitable for use in elongated holes.

Especially suitable for aluminum.
Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.
‐ for connecting 3 components
‐ burnished
‐ with hexagon socket (At the top Size 6 / At the bottom Size 4)

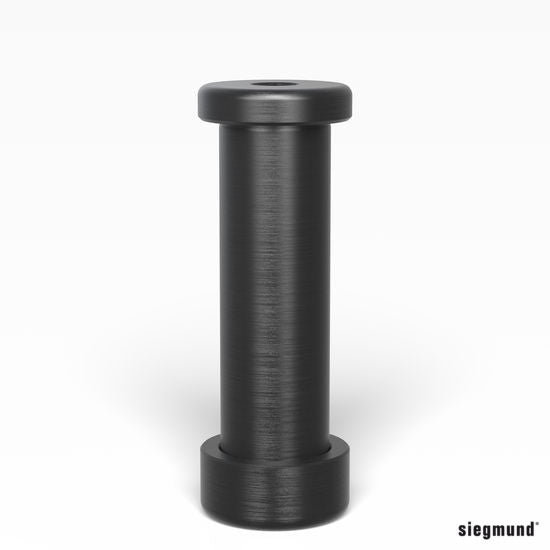

Item No.: 160585
Connecting Bolt with collar quadruple ‐ burnished
Length (a)63 mm /Weight 0.11 kg /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel15 Nm
Tightening Torque Aluminum 15 Nm
Tensile Force3 kN

Product description
The connecting bolt was specially designed to serve as a fixed long-term connection between large Siegmund elements, e.g. tables, U-squares and aluminum profiles.

For a better fitting when connecting aluminum profiles, a special flat screw is used for clamping.

The bolt head is equipped with a 6 mm hexagonal bit and the special screw is equipped with a 4 mm hexagonal bit.

This connecting bolt is also suitable for use in elongated holes.

Especially suitable for aluminum.
Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.
‐ for connecting 4 components
‐ burnished
‐ with hexagon socket (At the top Size 6 / At the bottom Size 4)



Item No.: AP160528
Flush Mount Bolt without slot double ‐ burnished
Length (a)32 mm /Weight 0.04 kg /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel10 Nm
Tightening Torque Aluminum2.5 Nm
Tensile Force1 kN

Product description
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body.

The countersunk bolt can be used to connect Siegmund aluminum profiles and other Siegmund components. The bolt head is flush with the borehole.

Due to the adapted collar, this countersunk bolt is only suitable for clamping aluminum profiles.

Our recommendation when working with aluminum profiles.
Clamping torque dependent on the material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.
‐ for clamping 2 components
‐ burnished
‐ with hexagon socket (Size 4)



Item No.: AP160529
Flush Mount Bolt without slot triple ‐ burnished
Length (a)44 mm /Weight 0.06 kg /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel10 Nm
Tightening Torque Aluminum 2.5 Nm
Tensile Force1 kN

Product description
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body.

The countersunk bolt can be used to connect Siegmund aluminum profiles and other Siegmund components. The bolt head is flush with the borehole.

Due to the adapted collar, this countersunk bolt is only suitable for clamping aluminum profiles.

Our recommendation when working with aluminum profiles.

Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.

‐ for clamping 3 components
‐ burnished
‐ with hexagon socket (Size 4)

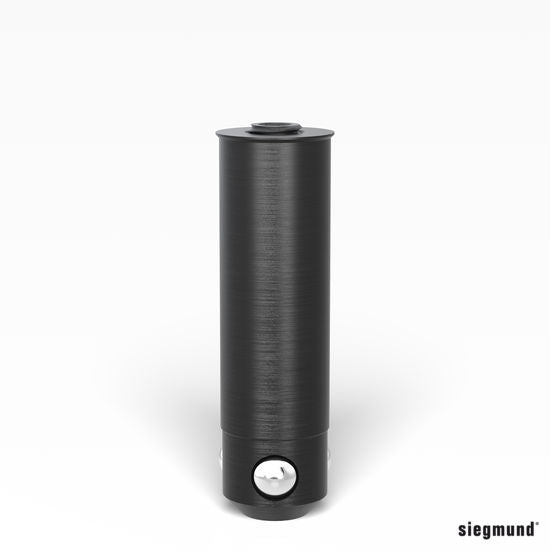

Item No.: AP160530
Flush Mount Bolt without slot quadruple ‐ burnished
Length (a)56 mm /Weight 0,08 kg /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel 10 Nm
Tightening Torque Aluminum 2.5 Nm
Tensile Force1 kN

Product description
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body.

The countersunk bolt can be used to connect Siegmund aluminum profiles and other Siegmund components. The bolt head is flush with the borehole.

Due to the adapted collar, this countersunk bolt is only suitable for clamping aluminum profiles.

Our recommendation when working with aluminum profiles.
Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.
‐ for clamping 4 components
‐ burnished
‐ with hexagon socket (Size 4)
